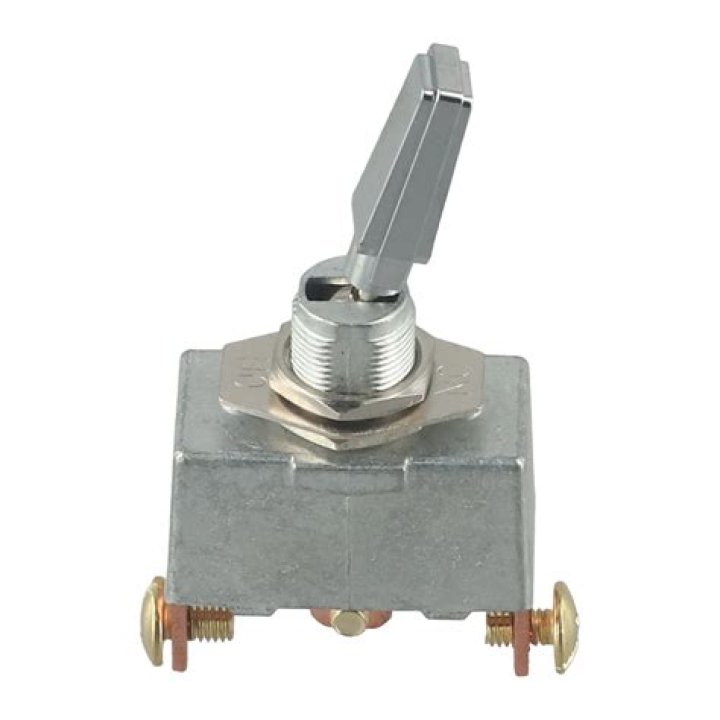

Heavy-duty toggle switches are designed to switch to meet the standards of today’s automotive, marine and industrial applications. The selection of heavy-duty toggle switches includes SPST, SPDT, DPST, and DPDT actuation options with a variety of terminations.
What does a momentary push button switch do?
A momentary ‘push to make’ switch allows the electricity flow between its two contacts while the button is depressed. Upon releasing the button, the circuit is broken. This type of switch is also known as a Normally Open (NO) Switch. (Examples: doorbell, keyboard keys, phone pad buttons, computer power switch).
What is a spring loaded toggle switch?
Momentary rocker switches is a type of rocker switches which come back to their position as soon as the force is removed. They are spring loaded and resemble a rocker chair in their to and fro motion. This is a normally open (NO) switch and conducts when its actuator is pressed in either direction.
What is DPDT toggle switch?
What is a DPDT Switch? A Double Pole Double Throw (DPDT) switch consists of six terminals, two of which are independent input terminals. Each of the poles can complete two different circuits. In other words, each input terminal connects with two output terminals, and all four output terminals are separate.
What is a momentary toggle switch?
There are two basic types: maintained contact and momentary toggle switches. A maintained switch changes its position when actuated and will remain in that position until actuated again, such as an ON/OFF function. A momentary toggle switch is actuated only when someone is operating the switch.
What is momentary switch?
Momentary switches require continuous compression. They will switch on when the user compresses the switch and will remain on only for as long as there is pressure on the switch. Once the pressure is removed they will switch off. For example; a door buzzer or an electric drill.
What is momentary toggle switch?
The Momentary Toggle Switch is a low voltage contact closure switch used with Greengate Lighting Control Panels. When toggled up or down, the switch momentarily makes a contact closure to the lighting control panel, sending an “On” signal and has a center “Off” position.
What is a momentary switch used for?
Momentary switches are used on heavy duty roller doors; the operator must old down the switch when the door is opening or closing, if there are any obstructions to the doorway, the operator can quickly stop the door from closing preventing an accident.
What is a 4PDT switch?
Once we get past one or two poles/throws, we just start sticking numbers in the abbreviation. Here’s a 4PDT switch, for example, it can control four separate circuits, 2 positions per circuit: A massive 4PDT circuit symbol, and an physically massive 4PDT toggle switch. * Just remember: it’s “poles”, not “pulls”.
What is SPDT and DPDT?
“SPDT” stands for “single pole double throw,” while “DPDT” stands for “double pole double throw.” Both terms are varieties of switches. Both SPDT and DPDT are standard types of switches. SPDT, also called a changeover switch, is a two-position with an ON-ON switch.
How does a momentary switch work?
What’s the difference between latching and momentary switch?
The difference between Latching and Momentary Switches A Momentary switch remains in its “on” state only as long as it is being compressed. Once the user removes the compression of the switch the device is no longer on. A latching switch needs to be pressed once for ON and again for OFF, for example a light switch.
