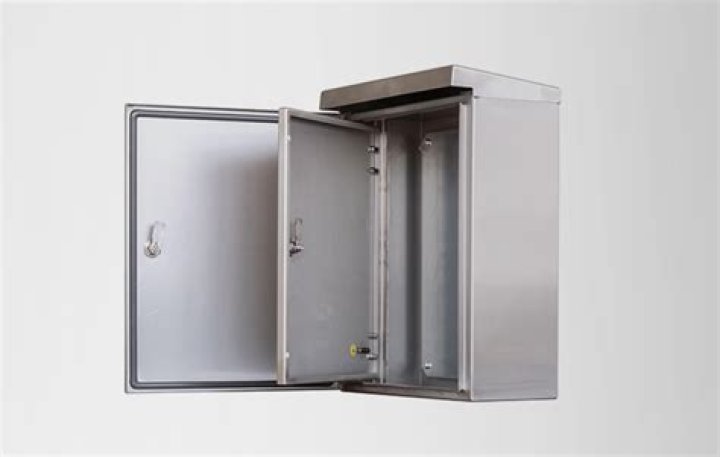

NEMA 2 Enclosures constructed for indoor use to provide a degree of protection to the equipment inside the enclosure against falling dirt and limited amounts of falling water (dripping and light splashing). These enclosures will also allow for operation of external mechanisms when ice laden.
What is NEMA type1 enclosure?
Type 1. Enclosures constructed for indoor use to provide a degree of protection to. personnel against access to hazardous parts and to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt).
What does NEMA enclosure stand for?
National Electrical Manufacturer Association
NEMA stands for National Electrical Manufacturer Association. NEMA ratings are standards that are useful in defining the types of environments in which an electrical enclosure can be used. The inverter, charge controller or battery enclosures are usually referred with NEMA ratings.
What NEMA enclosure is waterproof?
A NEMA 6- or 6P-rated enclosure ranks among the most durable and watertight protection that an electronic device can have.
What is a NEMA 3 enclosure?
NEMA 3 enclosures are intended for outdoor use primarily to provide a degree of protection against windblown dust, rain, sleet, and external ice formation. NEMA 3R enclosures are typically used in outdoor applications for wiring and junction boxes. This style of enclosure.
What is a Type 3 enclosure?
Type 3 Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of …
What is a NEMA 7 enclosure?
NEMA 7 enclosures are designed to contain an internal explosion without causing an external hazard. These enclosures are intended for indoor use in hazardous locations classified as Class I, Division I, Groups A,B,C, or D.
Is NEMA 4X rating explosion proof?
Explosion Proof NEMA 4 & NEMA 4X Enclosures – Class 1, Div 2 Enclosure Protection | NEMA Enclosures.
What is a NEMA 6 enclosure?
NEMA 6 enclosures are intended for indoor or outdoor use primarily to provide a degree of protection against the entry of. water during occasional, temporary submersion at a limited depth. NEMA 6P enclosures are intended for indoor or outdoor use primarily to provide a degree of protection against the entry of.
What is 4X enclosure?
The NEMA 4X definition, as established by the National Electrical Manufacturers Association, is a rating for an outdoor electrical enclosure that has the following protective qualities: Includes a gasket designed to protect against liquid and solid ingress. Suitable for indoor or outdoor use. Resistant to corrosion.
What does NEMA 1 enclosure mean?
NEMA 1 – NEMA 1 enclosures are constructed for indoor use and provide protection against human contact with electrically-charged, live electrical parts. It also protects the equipment from falling debris (dirt). NEMA 2 – A NEMA 2 enclosure is, for all intents and purposes, the same as a NEMA 1 enclosure.
What do NEMA enclosure ratings mean?
NEMA ratings are standards that are useful in defining the types of environments in which an electrical enclosure can be used. The NEMA rating system is defined by the National Electrical Manufacturer Association, and frequently signifies a fixed enclosure’s ability to withstand certain environmental conditions.
What do NEMA enclosure designations mean?
The NEMA enclosure description is similar to the IEC Index of Protection (IP) code. The NEMA designations are more descriptive and general, whereas the IEC IP codes are more precise and narrowly defined by a 2-digit code, with the first digit defining how well protected the motor is from solid objects and the second digit describing how well protected the motor is from moisture.
What is a type 1 enclosure?
PROTECTION FOR PERSONNEL. The NEMA type 1 enclosure provides a degree of protection to personnel against access to hazardous parts. Its primary purpose is to prevent contact with live parts, so you needn’t worry about your personnel sustaining an injury when working near or with the enclosure.
