Polarized light microscopy (PLM) is a technique commonly used in forensic science in identifying and characterizing trace evidence found at crime scenes, such as fibers, hairs, paints, and glass fragments.
What can you see with a polarizing microscope?
Some birefringent materials that are commonly evaluated by polarising light microscopy include:
- Bone.
- Teeth.
- Striated muscle.
- Urine crystals.
- Gout crystals.
- Amyloid.
What kind of microscope is used for forensic science?
electron microscopes
Some of the commonly used light microscopes in forensic fields are compound microscope, polarizing light microscope, and stereomicroscope. Also, a number of electron microscopes including SEM and TEM as well as probe microscope such AFM are commonly used for forensic investigations.
What is the purpose of using a polarizing light microscope in fiber analysis?
A polarizing light microscope will be necessary for determining a fiber’s optical properties. These properties include refractive indices, retardation, birefringence, sign of elongation, and dichroism.
How is polarized light used in forensic identification of a sample?
The use of polarized light microscopy can not only detect the presence of small pieces of evidence including fibers , crystals, and soil, but can help identify this trace evidence based on the distinctive appearances of different materials under the polarized illumination.
How is SEM used in forensics?
Traffic Accidents SEM is normally used to study forensic evidence in cases where a serious accident has occurred. With the Phenom desktop SEM, a light bulb filament can be imaged and elemental analysis done.
What is polarized light microscopy how can it help identify compounds?

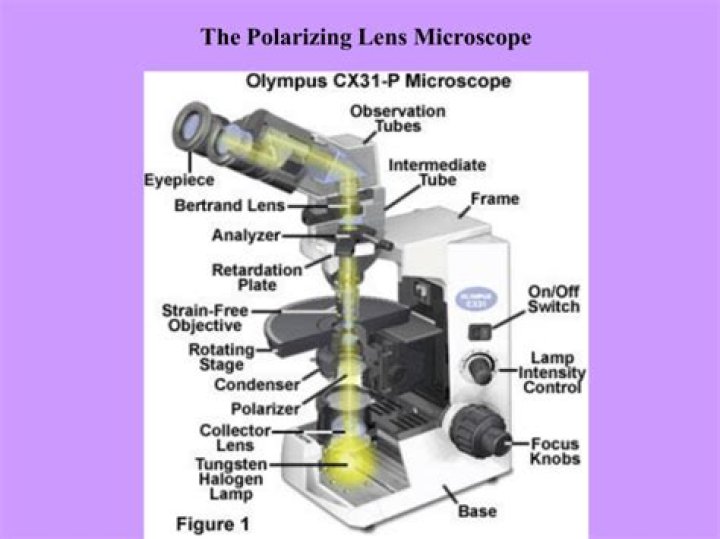

Polarized light microscopy employs a compound microscope equipped with a rotating stage and Polaroid filters for illumination of a sample with polarized light. It is an extremely useful light microscopy technique, solving a high percentage of analytical problems.
Which microscope is most commonly used in forensics?
Commonly used in forensic laboratory work, stereo microscopes are low power microscopes that provide three-dimensional views of specimens visible to the naked eye. Stereo microscopes utilize binocular eyepieces and are often enhanced with digital features.
What types of evidences are examined under microscope?
Microscopy can be applied in the identification of trace evidence such as fragments, fibers, hairs, fingerprints which are left the crime scene, on a victim or suspect. When a gun is fired, it leaves behind a chemical residue, known as gunshot residue (GSR).
What is polarized light used for?
The polarized light microscope is designed to observe and photograph specimens that are visible primarily due to their optically anisotropic character. Anisotropic materials have optical properties that vary with the propagation direction of light passing through them.
What is the function of a polarizing microscope?
Polarized light microscopes work by converting unpolarized light to polarized light. One way in which this can be achieved is by absorption of light vibrational movement in one specific direction. This can be done by certain natural minerals, including tourmaline, or by synthetic films that perform the same function.
Do forensic scientists use polarizing light microscopy?
One of the most powerful tools forensic scientists have is the polarizing light microscopy (PLM); a tool which can be used for all kinds of forensic applications. Sadly, in this computerized instrumentation era, few scientists routinely use a polarized light microscope (We missed Dr. Walter C. McCrone’s good old days).
What is polarized light microscopy (PLM)?
The most direct and powerful application of polarized light microscopy (PLM) is the identification of hundreds, if not thousands, of particles and materials based only on their morphological and optical properties.
What type of microscopy is used in forensic science?
One of the microscopy techniques that can be beneficial in a forensic examination involves the use of polarized light (light in which the electromagnetic waves all vibrate in the same plane).
How do you use a polarizer on a microscope?
In order to accomplish this task, the microscope must be equipped with both a polarizer, positioned in the light path somewhere before the specimen, and an analyzer (a second polarizer), placed in the optical pathway between the objective rear aperture and the observation tubes or camera port.
