A potentiometer is a three terminal electrical and electronic component which has the ability to vary its resistance by means of rotation or sliding a constant. The potentiometer can be used in two configurations where it can either vary voltage or vary resistance.
Can a potentiometer be used as a rheostat?
A Potentiometer can work as a Rheostat by making use of just two of its terminals: One is the Wiper and the other is either of the two outer terminals. In this case, the POT acts as a two terminal variable resistor.
How to build a voltage divider with potentiometer?
With the help of potentiometer, you can build a similar voltage divider by using all the three terminals. An input voltage is applied between the outer two terminals of the POT and the output voltage is taken between the wiper and the outer terminal which is connected to GND of the input supply.
What is variable resistance potentiometer?
Give Variable Resistance = Control current by changing resistance with adjustable wiper. Potentiometers are associated with a concept called the Taper which is the relationship between the position and the resistance of the potentiometer. They are further differentiated according to their track which are:

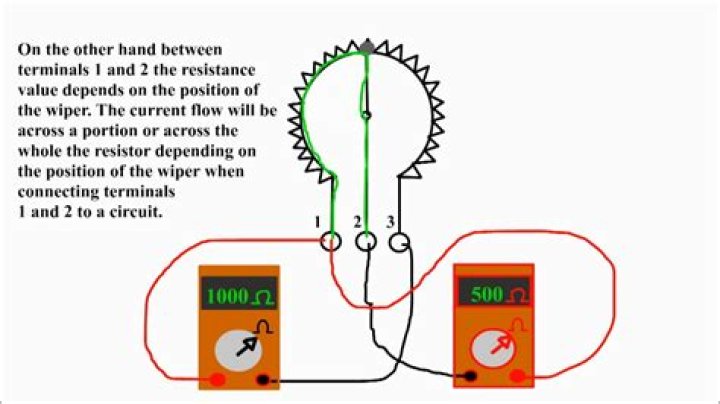

Two terminals are connected to both ends of a resistive element, and the third terminal connects to a sliding contact, called a wiper, moving over the resistive element. The position of the wiper determines the output voltage of the potentiometer. The potentiometer essentially functions as a variable voltage divider.
How do I wire a potentiometer as a rheostat?
A potentiometer can also be wired as a rheostat, or single variable resistance. The best way to wire a potentiometer as a rheostat is to connect the wiper and one end terminal together, this prevents infinite resistance if the wiper occasionally loses contact. More information can be found on the dedicated page about rheostats.
What are the common resistance values for potentiometers?
While potentiometers can be manufactured in every resistance value you can think of, most potmeters have values in the following range of multiples. By far the most used value for potentiometers is 10 kOhm other very common values are 1k, 5k and 100k. The potentiometer taper is the relationship between the mechanical position and resistance ratio.
What is a dual slide potentiometer used for?
Dual slide potentiometer, single slider controlling two potentiometers in parallel. Often used for stereo control in professional audio or other applications where dual parallel channels are controlled. Constructed from a spindle which actuates a linear potentiometer wiper.
A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider.
Is a windshield wiper a resistor or a potentiometer?
If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat. The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage); the component is an implementation of the same principle, hence its name.
Where is the wiper connected to the potentiometer?
The wiper is connected to a third terminal (F), usually between the other two. On panel potentiometers, the wiper is usually the center terminal of three. For single-turn potentiometers, this wiper typically travels just under one revolution around the contact.
What is the difference between a potentiometer and a rheostat?
The term “rheostat” is becoming obsolete, with the general term “potentiometer” replacing it. For low-power applications (less than about 1 watt) a three-terminal potentiometer is often used, with one terminal unconnected or connected to the wiper.
