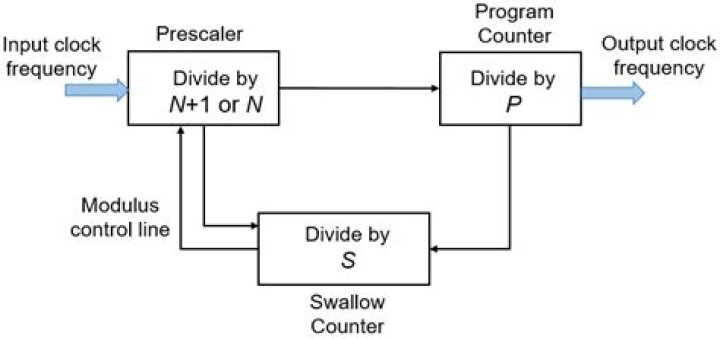

A prescaler is an electronic counting circuit used to reduce a high frequency electrical signal to a lower frequency by integer division. The purpose of the prescaler is to allow the timer to be clocked at the rate a user desires.
What is prescaler and Postscaler in pic?
A prescaler is an electronic circuit used to reduce a high frequency electrical signal to a low frequency by integer division. Postscaler: A circuit that slows the rate of the interrupt generation(or WDT reset)from a counter/timer by dividing it down. Gopal.
How you are selecting the prescaler?
Prescaler Rate A prescaler divides down the clock signals used for the timer, giving reduced overflow rates. The rate can be set to a number of possible values. The exact values are chip-dependent; e.g., for the PIC16F877A values area a number of values are available ranging from 1:1 to 1:256.
What is prescaler in PWM?
Each of the timers has a prescaler that generates the timer clock by dividing the system clock by a prescale factor such as 1, 8, 64, 256, or 1024. The timers are complicated by several different modes. The main PWM modes are “Fast PWM” and “Phase-correct PWM”, which will be described below.
What is the difference between timer and counter?
A timer is a specialized type of clock which is used to measure time intervals. A counter is a device that stores (and sometimes displays) the number of times a particular event or process occurred, with respect to a clock signal. It is used to count the events happening outside the microcontroller.
What is prescaler in AVR?
The clock unit of the AVR timers consists of a prescaler connected to a multiplexer. A prescaler can be considered as a clock divider. Generally, it is implemented as a counter with several output signals at different counting stages.
What is Postscaler?
The postscaler is used to extend the time period that a timer can generate. If you set the postscaler to 4 for example you will get four times the timeperiod the timer can generate normally. I use this often to get a lower frequency of an interrupt for example.
How do timer modules work?
The Timer module is an integral part of any microcontroller family. A Timer / Counter module may derive its clock source from the system clock and perform counting operation based on this clock pulse. In this case it is said to work as a timer and perform time measurement operations.
What is the value of prescaler which should be used so that the timer has maximum time period?
If the MCU clock is set to 1 MHz, the timer clock rate is 250 kHz, with period 4 μs, with the maximum prescaler setting of 256, the longest period measurable will be 256 × 256 × 4 = 26 2144 μs = 262 ms. The count required, as a proportion of this maximum value, will be 100/262 × 256 = 98 (to the nearest whole number).
What are timers used for?
Timer is a specialized type of clock used for measuring specific time intervals. Timers can be categorized into two main types. A timer which counts upwards from zero for measuring elapsed time is often called a stopwatch, while a device which counts down from a specified time interval is more usually called a timer.
Why timer is used?
Timers: Timers are used to measure specific time intervals. The timer can be used to measure the time elapsed or the external events occurring for a specific time interval. They are used to maintain the operation of the embedded system in sync with the clock. The clock can be an external clock or the system clock.
How does a prescaler work?
The prescaler is actually a binary ripple-counter that is put before the actual timer. The ripple counter simply counts the clock source and provides outputs of divide by 2, 4, 8, 16, 32 and so on. You select the divide ratio as the ‘prescale value’, and the timer in question sees a lower frequency of the input clock.
What are the division ratios of a prescaler?
A prescaler is provided with division ratios of 1, 8, 64, and 256 in order to change the timer clock frequency. The operation of the timer is given in the following paragraphs.
What are the pic16f877a prescaler and Overflow frequency values?
The exact values are chip-dependent; e.g., for the PIC16F877A values area a number of values are available ranging from 1:1 to 1:256. The prescaler value is used in conjunction with the clock speed to set an overflow frequency, e.g.: Interrupt frequency 300 Hz.
How do I set the prescale value of a timer?
You select the divide ratio as the ‘prescale value’, and the timer in question sees a lower frequency of the input clock. (see the Midrange Reference Manual and the block diagrams for the timers in the datasheets).
