7.1 Introduction. Riser is defined as the vertical or near-vertical segment of pipe connecting the facilities above water to the subsea pipeline. The riser portion extends (as a minimum) from the first above-water valve or isolation flange to a point five pipe diameters beyond the bottom elbow, based on codes.
What is the use of riser pipeline?
Similar to pipelines or flowlines, risers transport produced hydrocarbons, as well as production materials, such as injection fluids, control fluids and gas lift. Usually insulated to withstand seafloor temperatures, risers can be either rigid or flexible.
What is a riser system?
A riser system is essentially conductor pipes connecting floaters on the surface and the wellheads at the seabed. There are essentially two kinds of risers, namely rigid risers and flexible risers. A hybrid riser is the combination of these two.
What is the purpose of riser system?
A riser, also known as a feeder, is a reservoir built into a metal casting mold to prevent cavities due to shrinkage. Most metals are less dense as a liquid than as a solid so castings shrink upon cooling, which can leave a void at the last point to solidify.
What are risers in FPSO?
FPSO is moored by an internal turret mooring system. The riser system consists of three dynamic flexible risers, including two 8″ ID dynamic insulated oil flexible risers, and one 8″ ID dynamic water injection flexible riser.
What is riser analysis?
Riser analysis tools are special purpose programs for analyses of flexible risers, catenary risers, top tensioned risers and other slender structures, such as mooring lines and pipelines.

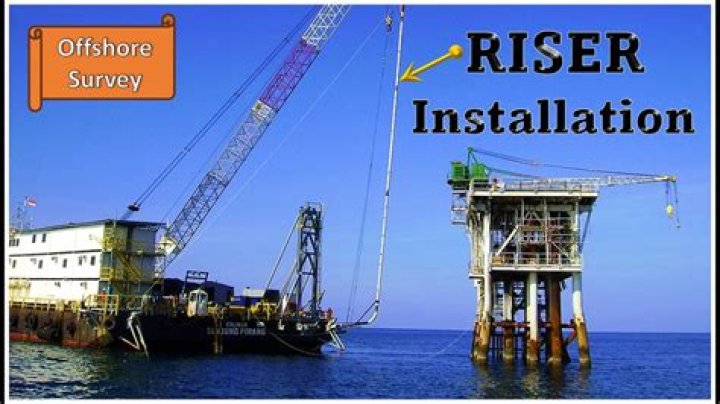

What is riser installation?
A riser installation method including the steps of providing a first vessel situated over a hydrocarbon well, supporting a hydrocarbon transfer duct from the first vessel by a first end that is attached to a lowering device on the first vessel, and attaching a second end of the hydrocarbon duct to a second vessel, at a …
What are risers production?
The production riser is the portion of the flowline that resides between the host facility and the seabed adjacent to a host facility. Riser dimensions range from 3 to 12 in (76.2 to 304.8 mm). in diameter.
What are the types of riser?
Types of riser
- Dry riser: Used to supply water within buildings for fire-fighting purposes.
- Wet riser: Used to supply water within buildings for fire-fighting purposes.
- Stairs riser: The vertical face between the back of the tread of one stair and the front of the tread of the stair above.
What is global riser analysis?
Global riser analysis is performed to determine the loading on flexible risers, top tensioned risers and subsea equipment. The riser loading can be external or internal and caused by: Environmental Wave Loading. Environmental Current Loading.
What material are risers made of?
Most risers are made from deck boards or fascia material. Make sure the material is heavy duty enough to resist feet kicking the risers.
What is the difference between a flowline and a riser?
Umbilicals are usually used to transmitted well data from subsea to the surface and in some cases they are also used to control subsea valves. Flowlines are mainly used to transport producing fluids from manifolds to the risers. Risers have the same functionality as flowlines but they are rising from the sea floor to FPSO.
What is the size of a production riser?
The production riser is the portion of the flowline that resides between the host facility and the seabed adjacent to a host facility. Riser dimensions range from 3 to 12 in (76.2 to 304.8 mm). in diameter.
What are risers in oil and gas?
Whether serving as production or import/export vehicles, risers are the connection between the subsea field developments and production and drilling facilities. Similar to pipelines or flowlines, risers transport produced hydrocarbons, as well as production materials, such as injection fluids, control fluids and gas lift.
What are attached risers and how do they work?
Attached risers are clamped to the side of the fixed facilities, connecting the seabed to the production facility above. Usually fabricated in sections, the riser section closest to the seafloor is joined with a flowline or export pipeline, and clamped to the side of the facility.
