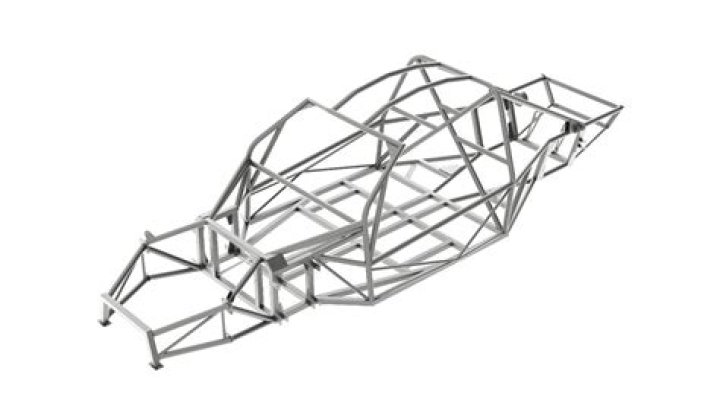

A Spaceframe Chassis is an assortment of interlocking struts and braces arranged in triangular or pyramid like patterns to make a complete frame. Spaceframes have been used in the construction industry but the technology have been used in the automotive industry as car chassis as early as the 1930’s.
What is the test conducted on space frame chassis?
The space frame is designed to suit with the electric vehicle and then finite element analysis is used to determine the torsional stiffness of the frame which is verified by the torsional test.
What is chassis structure?
A vehicle frame, also historically known as its chassis, is the main supporting structure of a motor vehicle to which all other components are attached, comparable to the skeleton of an organism.
What is tubular frame chassis?
Backbone tube chassis is a type of automobile construction chassis that is similar to the body-on-frame design. Instead of a two-dimensional ladder-type structure, it consists of a strong tubular backbone (usually rectangular in cross section) that connects the front and rear suspension attachment areas.
What is space frame analysis?
A Space Frame structure can be defined as a rigid, lightweight, truss-like structure. It is constructed from interlocking struts in a geometric pattern. The Space frames can be used efficiently to cover huge areas with minimum interior supports.
What is a space frame in a car?
Definition of space frame : a usually open three-dimensional framework of struts and braces (as in buildings and racing cars) which defines a structure and distributes its weight evenly in all directions — compare monocoque, unibody.
What are the types of chassis?
Types Of Car Chassis Explained | From Ladder To Monocoque!
- Ladder Frame Chassis. Ladder chassis. One of the oldest chassis, the ladder chassis gets its name from the shape of has which simply put, is like a ladder.
- Backbone Chassis. backbone chassis.
- Monocoque Chassis. Monocoque.
- Tubular chassis. Tubular Chassis.
What is the difference between unibody and monocoque?
is that unibody is (uncountable|automobiles) an automobile construction technique in which the body is integrated into a single unit with the chassis rather than having a separate body-on-frame while monocoque is a structure design in which the frame and body are built as a single integrated structure.
Is the chassis and frame the same thing?
A chassis is the skeletal framework of a vehicle on which most of the mechanical parts like tires, axle assemblies, steering, brakes, and the engine are fastened. A vehicle frame, on the other hand, is the main structure of the chassis. All the other components, including the chassis, are fastened to the frame.
What is classification of chassis?
CHASSIS CLASSIFICATION BASED ON ENGINE LOCATION Engine fitted at front Engine fitted at Back Engine fitted at centre Engine fitted at front but crosswise CHASSIS CLASSIFICATION BASED ON Number of Wheels fitted in the vehicles and the number of driving wheels •4×2 drive chassis vehicle.
What are the 2 types of chassis?
There are two types of chassis:
- Conventional chassis or frame-full chassis. In this type of chassis the body is made as a separate unit and then joined with ladder frame. It.
- Non-conventional or Frameless Chassis. In this type of chassis, the ladder frame is absent and the body itself acts as the frame. It supports all the.
What are the different types of chassis?
What is chassis of an automobile?
Chassis is a French word and was initially used to denote the frame parts or basic structure of an automobile. It is the back bone of the vehicle. It is the main mounting for all the components. So it is also called as Carrying unit. The chassis of an automobile consists of following components suitably mounted:
What is a backbone chassis?
A backbone chassis is a simple style of frame that uses a central backbone running the length of the chassis that connects to the front and rear suspension attachment areas. The backbone usually has a rectangular cross section. The body of the vehicle is then placed onto of the structure.
What is the difference between ladder frame and space frame?
There are two longitudinal rails running the length of the vehicle which are connected together by several lateral and cross braces. The space frame was the next logical step up from the ladder frame. A space frame has a number of features that distinguish it from a ladder frame and add massive advantages.
