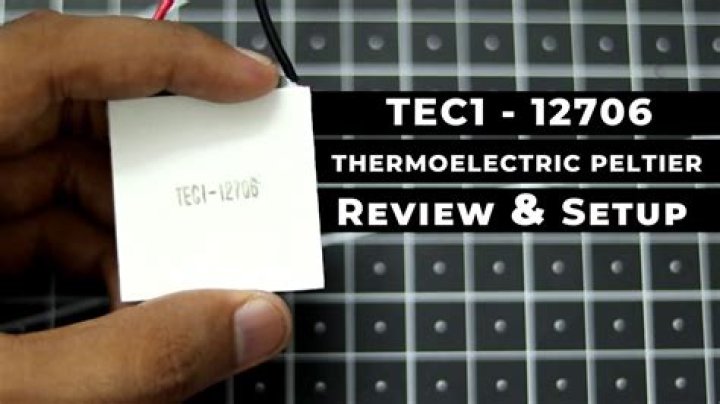

Peltier Element TEC1-12706 is thermoelectric cooling element that uses the Peltier effect to create a heat flux at the junction of two different types of materials. This version is supporting 12V and current rating of 6A.

Which is the best Peltier module?

Best selling products: Best Peltier Coolers

  • Sp1848-27145 Seebeck Thermoelectric Power Generator TEG Peltier 40x40mm 150℃
  • ELUTENG M.2 2280 Heatsink Double-sided Heat Sink Alloy Aluminum NGFF NVMe.
  • 12v Tec1-12706 Thermoelectric Cooler Tec Peltier Module With 5w Heatsink Kit US.

How much power does a Peltier use?

approximately 60 watts
This Peltier chip’s maximum power consumption is approximately 60 watts. The absolute maximum voltage you can supply it with is 15 volts and at that voltage it will consume about 6 amps. Like all semiconductors, it’s best to run the chip under these absolute maximum ratings. Typically it is run at 12 volts.

How do you identify the hot and cold side of a Peltier module?

Place the module on a flat surface so that the wires are pointing towards you with the positive (red) wire on the left hand side and the negative (black) wire on the right hand side. In this orientation the cold side will be facing down and the hot side will be facing up towards you.

Which is the hot side of a Peltier?

The hot side of the Peltier element is at 35 °C. The heat sink dissipates the heat to the surrounding air, which is at 25 °C.

Can Peltier cool a room?

Peltier thermoelectric cooling modules can be used to cool anything you like. It will not be economical compared to a standard off the shelf air-conditioner (R-134A compressor cycle).

Can Peltier freeze water?

(approx. 1.5hrs.) to freeze one liter of water from 40C. Thermoelectric Modules (TEMs), working on peltier effect can provide high cooling rates while operating on DC electric source. Water can be frozen without any refrigerant with the help of such TEMs while remarkably reducing the freezing time to 3 mins.

What do the numbers on a Peltier mean?

Chinese Peltier devices are typically marked with a part number that is common across many manufacturers. The “1” after TEC or TES indicates the number of stages in the device – 99% of all TECs are 1 or single stage. A two stage device would obviously have a “2”.

Can a Peltier module cool a room?

Can Peltier cool a car?

Thermoelectric coolers are used especially if small cooling power is required up to 500 W. Our goal is to define the new HVAC system using thermoelectric couple which shall overcome all the drawback of current HVAC system. If this system comes in present HVAC system, then revolution will occur in the automobile.

How long do peltiers last?

How long will a typical TECA unit last? The life expectancy of TECA modules is high due to the durability of solid state construction. Service life of our air conditioners is typically in excess of five years under normal conditions.

What are the technical specifications of the tec1-12706?

Technical Specifications Operating Ratings DC Power Input Typical 12VDC Operating Current TEC1-12706 6A (Max), 5A (Typ) Operating Power Typical 60W Dimensions W x H 40 x 40 x 4mm (1.6 x 1.6 x 0.16″)

What is tec1-12706 Thermoelectric Peltier cooling device?

TEC1-12706 Thermoelectric Peltier Cooling Device 1 Description. 2 PACKAGE INCLUDES: 3 KEY FEATURES OF TEC1-12706 THERMOELECTRIC COOLING DEVICE: Thermoelectric Peltier cooler modules are solid-state heat pumps that use DC current flow to transfer heat from one side of the device (cold

Which side of the TEC module is the cold side?

The printed side of the TEC device is the cold side. To check the TEC module without concerns about damaging the device, you can power it off a lower voltage power supply such as 5V where it will draw about 1.5A and you will feel one side getting colder while the other side gets warmer.

Can Tec1 Peltier modules be used for commercial applications?

Commercial Portable Cooling – Approved for use in commercial transport, TEC1 Peltier Modules can be applied to manage DTmax temperatures of up to 68˚C. Temperature Stabilization – Stabilize volatile temperatures with ease and superior energy efficiency when paired with a precision Peltier control module.
