Leonardo’s Vertical Cavity Surface Emitting Laser arrays (VCSEL) are a new generation of laser diodes. Applications include illumination, structured light and pumping of solid state lasers. VCSELs are particularly well suited for high volume automotive lidar applications.
What does VCSEL mean?
vertical-cavity surface-emitting laser

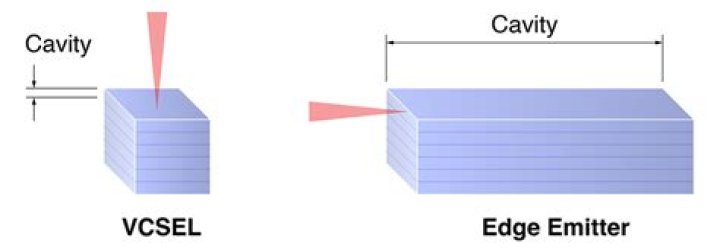

VCSEL stands for vertical-cavity surface-emitting laser – this is a laser diode with a monolithic laser resonator which radiates the light vertically to the surface of the semiconductor chip, as opposed to edge-emitting laser diodes, where the light exits at the edge of the chip.
What is VCSEL used for?
VCSELs are used for communication links to 500 meters in networks, enterprise and data centers. The technology has served the data communications industry for more than 10 years. VCSEL is an emerging technology for many applications including chip to chip interconnect, touchless sensing and gesture recognition.
How does a VCSEL work?
VCSELs are semiconductor lasers, more specifically laser diodes with a monolithic laser resonator, where the emitted light leaves the device in a direction perpendicular to the chip surface. The resonator (cavity) is realized with two semiconductor Bragg mirrors (→ distributed Bragg reflector lasers).
How big is a VCSEL?
around 10 microns
Vertical Cavity Surface Emitting Laser (VCSEL) Individual VCSEL emitters (or “apertures”) are very small, typically around 10 microns in diameter, but most often they are grouped into 2D arrays which collectively generate a much higher output power level.
Is VCSEL coherent?
Both the VCSEL array and the microlens array are monolithically integrated and mounted in a compact module. With an array of 21 slave lasers a system coherence of 95% (for several hours) and of nearly 90% (for several months) has been demonstrated without any active phase control.
What type of network uses VCSEL?
Like many lasers, VCSELS are used in some areas of optical communications, being used as the transmitter in single optical fibers, multimode fibers in both short-range and long-range free-space communication lines.
What type of fiber uses VCSEL?
multimode fibers
The VCSEL launch provides improved performance over multimode fibers, which have larger core diameters than single-mode fibers. It also has a controlled launch power distribution and yields a higher system bandwidth for the multimode fiber.
What type of networks usually uses VCSEL?
VCSELs are commonly used in two different sensing areas—gas sensing and biomedical sensing.
How are VCSEL made?
In a VCSEL, the active layer is sandwiched between two highly reflective mirrors (dubbed distributed Bragg reflectors, or DBRs) made up of several quarter-wavelength-thick layers of semiconductors of alternating high and low refractive index. The reflectivity of these mirrors is typically in the range 99.5~99.9%.
What is VCSEL driver?
The VCSEL driver consists of an equalizer, a limiter, a waveform shaping block with over- and undershoot control, an output driver, power-on reset circuitry, a 2-wire serial interface including a control logic block, a modulation current generator and a bias current generator with automatic power control loop, and an …
What are the data rates used in VCSEL?
An 850 nm vertical-cavity surface-emitting laser capable of achieving data rates of up to 25 Gbit/s makes its debut. Today’s 850 nm VCSELs operate at single-channel data rates of up to 10 Gbit/s and are the lasers of choice for use in short-reach data communication links in local and storage area networks.
