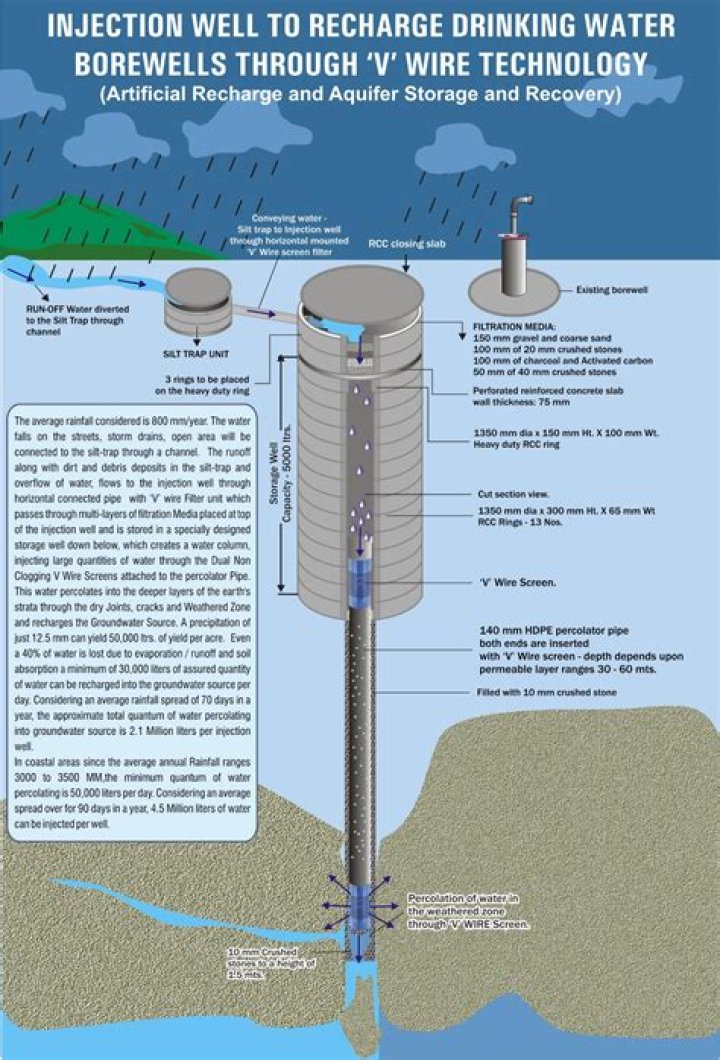

An injection well is used to place fluid underground into porous geologic formations. These underground formations may range from deep sandstone or limestone, to a shallow soil layer. Injected fluids may include water, wastewater, brine (salt water), or water mixed with chemicals.
Why is water injected into oil wells?
The principal reason for waterflooding an oil reservoir is to increase the oil-production rate and, ultimately, the oil recovery. This is accomplished by “voidage replacement”—injection of water to increase the reservoir pressure to its initial level and maintain it near that pressure.
What is the difference between water flooding and water injection?
Water injection is used to prevent low pressure in the reservoir—the water replaces the oil which has been taken, keeping the production rate and the pressure the same over the long term. Water floods are essentially artificial water drives and, at one time, were considered to be a form of enhanced recovery.
What is water injection cluster?
The injection water is delivered and injected through water-injection clusters. Each cluster normally consists of a water-supply well completed through aquifers and produced by electrical submersible pumps, a surface pump, and a network of pipes distributing the water to the injection wells connected to that cluster.
What is a Class 2 injection well?
Class II wells are used only to inject fluids associated with oil and natural gas production. Class II fluids are primarily brines (salt water) that are brought to the surface while producing oil and gas. It is estimated that over 2 billion gallons of fluids are injected in the United States every day.
What is the difference between production well and injection well?
While a production well is used to extract oil or gas from the subsurface, injection wells are used to safely dispose of waste generated from those production operations or, in some cases, to increase production from nearby producing wells.
How does water injection work?
In a piston engine, the initial injection of water cools the fuel-air mixture significantly, which increases its density and hence the amount of mixture that enters the cylinder. The water (if in small liquid droplets) may absorb heat (and lower the pressure) as the charge is compressed, thus reducing compression work.
What is the purpose of the water injection system?
Water injection is water-flooding a reservoir using man-made systems to increase the production from oil reservoirs and is injected directly into the production zone. Since the density of water is greater than the density of oil, the water injected will cause the oil to rise and flow toward the production well.
What is waterflood oil wells?
Functional Description (Fateh Waterflood) Pressurised processed seawater is injected into reservoirs through water injection wells in satellite platforms. These pumps discharge high-pressure water to a distribution header linking four trunk lines via a subsea pipe network to wellhead platforms.
How does water injection work on a diesel?
Use in diesel Water was injected into the exhaust manifold of a diesel engine and, by opening the exhaust valve during the induction stroke, the injected water and some of the exhaust gas was drawn back into the cylinder. The effect was to reduce NOx emissions by up to 85% but at the cost of increased soot emissions.
What is a Class 3 well?
Class III wells are used to inject fluids to dissolve and extract minerals. Class IV wells are shallow wells used to inject hazardous or radioactive wastes into or above a geologic formation that contains a USDW. Class V wells are used to inject non-hazardous fluids underground.
How does a water-injection well work?
In an effort to reduce any corrosion within the reservoir, oxygen is often removed from the water, as well. While production wells can be converted into injection wells, water-injection wells are also drilled specifically for this purpose. Water is then pumped into the reservoir, or gravity can help to push the liquid into the formation.
What can a wellhead system be used for?
In addition, our wellhead systems can be used on thermally enhanced (steam injection) recovery, waste disposal, and hot-water wells. The compact geothermal wellhead system is a horizontal production system based on the geothermal compact tree (GCT) system, which has long been regarded as the industry benchmark.
What is the history of injection wells?
Widespread use of injection wells began in the 1930s to dispose of brine generated during oil production. Injection effectively disposed of unwanted brine and preserved surface waters. In some formations injection enhanced the recovery of oil.
What is the difference between shallow wells and injection wells?
In contrast, shallow wells are usually of simple construction. The Underground Injection Control program consists of six classes of injection wells. Each well class is based on the type and depth of the injection activity, and the potential for that injection activity to result in endangerment of a USDW.
