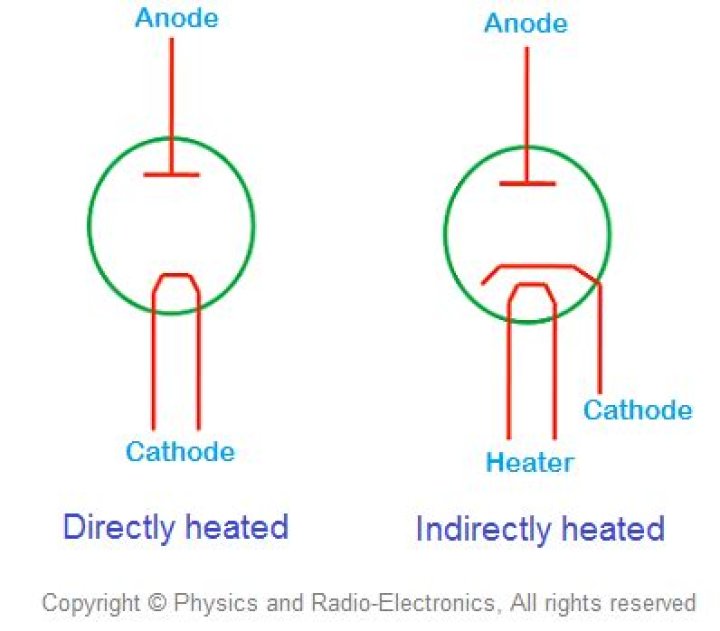

Indirectly heated cathode : In this type, the filament is not the cathode but rather heats a separate cathode consisting of a sheet metal cylinder surrounding the filament, and the cylinder emits electrons. Indirectly heated cathodes are used in most low power vacuum tubes.
What particles are emitted in thermionic emission?
thermionic emission, discharge of electrons from heated materials, widely used as a source of electrons in conventional electron tubes (e.g., television picture tubes) in the fields of electronics and communications.
How does a vacuum diode work?
Vacuum diode is an electronic device that allows the electric current in one direction (cathode to anode) and blocks the electric current in another direction (anode to cathode).
How a cathode is coated to produce measurable current with modest temperature?
The cathode is often coated with a chemical slurry comprised of metal carbonates having a low work function. This enhances electron emission from a material in which the free electrons are only slightly bound, producing measurable emission currents for modest filament temperatures.
What is a thermionic cathode?
In vacuum tubes and gas-filled tubes, a hot cathode or thermionic cathode is a cathode electrode which is heated to make it emit electrons due to thermionic emission. This is in contrast to a cold cathode, which does not have a heating element.
Why must a cathode ray tube be in a state of vacuum?
Cathode ray tubes emit electrons from a negatively charged metal electron emitter (the “cathode”). The vacuum in the oscilloscope’s picture tube is needed to keep the electrons in the beam from being scattered by gas molecules which would blur and dim the image on the screen.
Why are thermionic emitters heated in vacuum?
The emitter or cathode is sufficiently heated in vacuum or evacuated space to initiate thermionic emission i.e. emission of electrons from the body of emitter or cathode. The metal or metallic substances used to construct a thermionic emitter should have three main features: It should have a low work function.
Which particles are emitted by a hot metal filament?
In a directly heated cathode, the filament is the cathode and emits the electrons. In an indirectly heated cathode, the filament or heater heats a separate metal cathode electrode which emits the electrons. From the 1920s to the 1960s, a wide variety of electronic devices used hot-cathode vacuum tubes.
What is vacuum diode semiconductor?
Here the vacuum diode works mostly like a modern diode. But its size is larger. It consists of a vacuum container with cathode and anode inside. This cathode and anode are connected across a voltage source. As a result, one cloud of electrons gets accumulated in the space between cathode and anode.
What contains a heated electron emitting cathode?
What is a cathode ray made of?
The cathode ray is composed of negatively-charged particles. The particles must exist as part of the atom, since the mass of each particle is only ∼ 20001start fraction, 1, divided by, 2000, end fraction the mass of a hydrogen atom. These subatomic particles can be found within atoms of all elements.
What is the function of the cathode in vacuum tubes?
For example, in most vacuum tubes the cathode is a nickel tube, coated with metal oxides. It is heated by a tungsten filament inside it, and the heat from the filament causes the outside surface of the oxide coating to emit electrons. The filament of an indirectly heated cathode is usually called the heater.
What is the difference between hot cathode and cold cathode?
Hot cathodes typically achieve much higher power density than cold cathodes, emitting significantly more electrons from the same surface area. Cold cathodes rely on field electron emission or secondary electron emission from positive ion bombardment, and do not require heating.
What is the difference between hot cathode and filament?
Hot cathode. There are two types of hot cathode. In a directly heated cathode, the filament is the cathode and emits the electrons. In an indirectly heated cathode, the filament or heater heats a separate metal cathode electrode which emits the electrons.
What type of cathode is used in a fluorescent tube?
Today, they are used in fluorescent tubes and most high-power transmitting vacuum tubes. Indirectly heated cathode. In this type, the filament is not the cathode but rather heats a separate cathode consisting of a sheet metal cylinder surrounding the filament, and the cylinder emits electrons.
