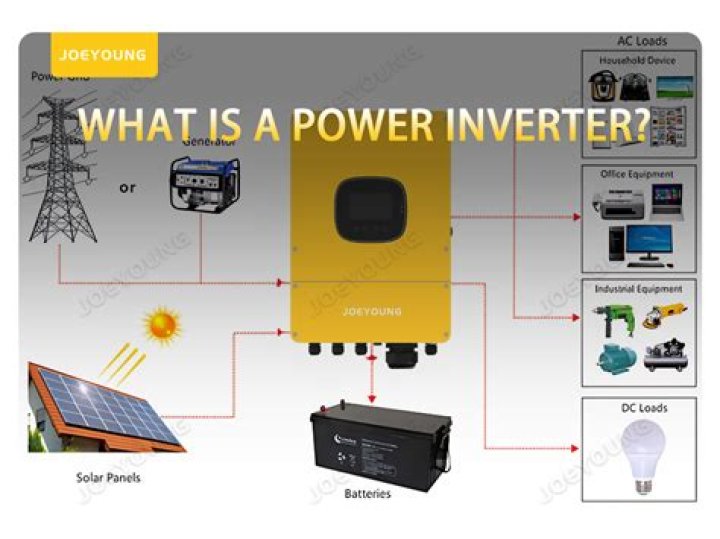

Wikipedia Definition. A power inverter, or inverter, is a power electronic device or circuitry that changes direct current (DC) to alternating current (AC). The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry.
Why we use IC 4017?
What is an IC 4017 Decade Counter? The CD4017 IC is a CMOS Decade counter and it is used in the applications of low-range counting. This IC will count from 0 to 10 and the circuit with an IC 4017 will save board space as well as the time necessary to design the circuit.
What does a 1500w inverter do?
A 1,500W inverter should be able to run a small (0.7 cu. ft) microwave inverter. A small 0.7 cu. ft has a rated power draw of about 700W with a likely surge power rating of 1,400W while the medium sized inverter will likely have a typical power draw of about 1,100W and surge power of about 2200W.
Why is an inverter used?
The primary function of an inverter is to convert Direct Current (DC) power into standard, Alternating Current (AC). This is because, whereas AC is the power supplied to industry and homes by the main power grid or public utility, the batteries of alternating power systems store only DC power.
How do inverter circuits work?
The first thing to keep in mind when it comes to enriching your understanding of the internal structure of an inverter device, is that the converter circuit converts alternating current (AC) coming from the power source into direct current (DC), and the inverter circuit changes the converted direct current (DC) back …
What is a CD4017?
The CD4017 is a CMOS Decade counter IC. CD4017 is used for low range counting applications. The circuit designed by using this ic will save board space and also time required to design the circuit. CD4017 is as ‘Johnson 10 stage decade counter’.
How long will a 12 volt battery run a 1500 watt inverter?
A 1500 watt AC Power Inverter will run for approximately 16 hours based on the 200 amp hour rating of your 12 volt battery.
Can a 1500 watt inverter run a refrigerator?
Inverter Ratings A typical inverter offered at discount stores or home centers provides 1,500 watts continuous AC power and 3,000 watts of surge power. This unit should run a typical 16 cu. ft. refrigerator with no problem.
Why is it called inverter?
Q: Why are they called inverters? A: Originally converters were large rotating electromechanical devices used to convert AC to DC. If you invert the connections to a converter you put dc in and get ac out. Hence an inverter is an inverted converter.
How good is the cd4017 chip?
The CD4017 is one of the most versatile counters. Imagine It can count up to 10 and has 10 separate outputs. And will show a single output pin for each count from 0 to 9. Because this chip contains the counter and the decoder section, too. It is so good.
How do you divide by N on a cd4017?
A divide-by-N. circuit for the CD4017 requires the N + 1 Output to be connected to the reset pin. This circuit is helpful for add divisions or for a circuit requiring easy alteration. For standard division, a number of cheaper and better IC’s are available.
How to convert 12VDC to 220VAC 50Hz using IC 4047?
There four CD4047 inverter circuits can convert 12VDC to 220VAC 50HZ we use IC-4047 for oscillator and transistors driver the transformers to output. we have 3 circuits you can build easily with PCB This is the inverter 100W circuit, use IC 4047 alike inverter 100W transistor I use MOSFET IRF540 instead Transistor 2N3055.
What is the function of each pin in a cd4017?
See the CD4017 pinout and function of each pin. 1.) Pin 16 is a positive power supply and pin 8 is a ground. The power supply range of 3 volts to 16 volts. And Maximum power supply voltage does not more than 18 volts. 2.) Pin 13 has Clock enabled pins to controls the clock.
