Address Resolution Protocol(ARP) is used to dynamically map layer-3 network addresses to data-link addresses. The ARP cache is vulnerable to ARP cache poisoning and ARP spoofing attacks.

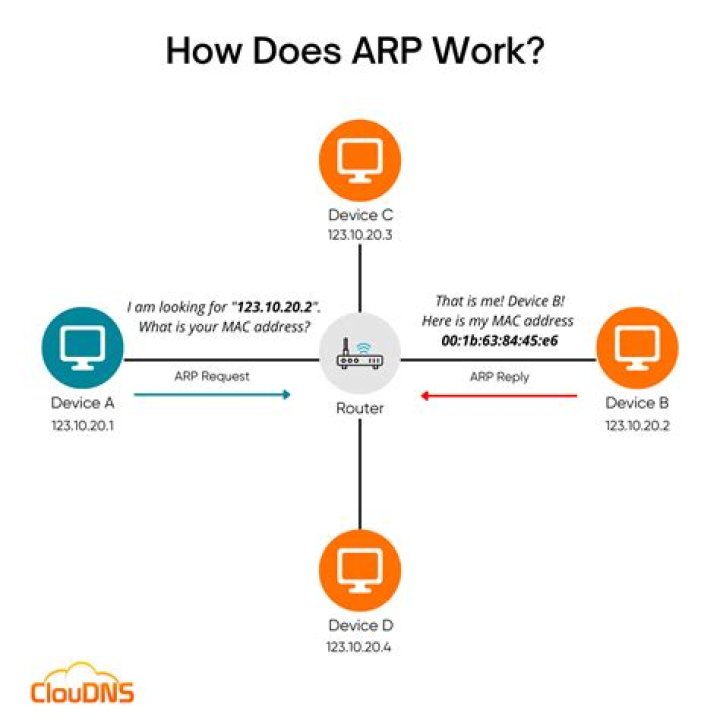

What is ARP and how does it work?

ARP broadcasts a request packet to all the machines on the LAN and asks if any of the machines know they are using that particular IP address. When a machine recognizes the IP address as its own, it sends a reply so ARP can update the cache for future reference and proceed with the communication.

What is the purpose of ARP in an IPv4 network?

ARP is a Data Link Layer protocol because it only operates on the local area network or point-to-point link that a host is connected to. The purpose of ARP is to resolve addresses by finding the MAC address that corresponds to an IP address.

What is ARP explain in brief?

Stands for “Address Resolution Protocol.” ARP is a protocol used for mapping an IP address to a computer connected to a local network LAN. The gateway uses the ARP to locate the MAC address of the computer based on the IP address the data is being sent to. …

What are the types of ARP?

There are four types of ARP.

  • Proxy ARP.
  • Reverse ARP (RARP)
  • Gratuitous ARP.
  • Inverse ARP.

    What problems can occur with ARP?

    What are two potential network problems that can result from ARP operation? (Choose two.)

    • Manually configuring static ARP associations could facilitate ARP poisoning or MAC address spoofing.
    • On large networks with low bandwidth, multiple ARP broadcasts could cause data communication delays.

    How ARP works step by step?

    ARP forces all receiving hosts to compare their IP addresses with the IP address of the ARP request. So if host 1 sends another IP packet to host 2, host 1 searches its ARP table for the router 1 MAC address.

    What is ARP and its types?

    There are four types of Address Resolution Protocol, which is given below: Proxy ARP. Gratuitous ARP. Reverse ARP (RARP) Inverse ARP.

    Why gratuitous ARP is used?

    Gratuitous ARP is mainly used by a TCP/IP device to inform other devices in the Local Area Network (LAN), any change in its MAC address or IPv4 address. Since the destination MAC address is the broadcast MAC address, the switch will flood the Gratuitous ARP packet to all its connected ports.

    What is the aim of ARP spoofing attack?

    Explanation:In an ARP spoofing attack, a malicious host intercepts ARP requests and replies to them so that network hosts will map an IP address to the MAC address of the malicious host.

    What prevents ARP spoofing?

    Use a Static ARP Creating a static ARP entry in your server can help reduce the risk of spoofing. If you have two hosts that regularly communicate with one another, setting up a static ARP entry creates a permanent entry in your ARP cache that can help add a layer of protection from spoofing.

    Why ARP is required?

    ARP is necessary because the underlying ethernet hardware communicates using ethernet addresses, not IP addresses. Suppose that one machine, with IP address 2 on an ethernet network, wants to speak to another machine on the same network with IP address 8.

    What is FFFF FFFF MAC address?

    ffff. ffff , this is the special reserved MAC address indicating a broadcast frame. This is what makes an ARP Request a broadcast. Had Host A chosen to send this frame using a specific host’s MAC address in the destination, then the ARP request would have been unicast.

    Where is gratuitous ARP used?

    Is gratuitous ARP?

    A ‘Gratuitous ARP’ is an AddressResolutionProtocol request packet where the source and destination IP are both set to the IP of the machine issuing the packet and the MAC is the broadcast address ff:ff:ff:ff:ff:ff. One function is to help detect IP conflicts.

    What is MAC address how it is useful in communication?

    A media access control address (MAC address) is a unique identifier assigned to a network interface controller (NIC) for use as a network address in communications within a network segment. This use is common in most IEEE 802 networking technologies, including Ethernet, Wi-Fi, and Bluetooth.

    What is MAC address and why it is required?

    MAC addresses are required to make a local Ethernet (or wifi) network function. They allow a network device to attract the attention of a single directly connected device, even though the physical connection is shared. This can be important when thousands of devices are connected together within a single organisation.

    Can MAC address be spoofed?

    Mac spoofing is computer identity theft, for good or for bad reasons, and it is relatively easy. MAC spoofing refers to altering the MAC address on a NIC (network interface controller) card. The MAC address is “burned in” at the factory. Therefore each network card is shipped from the factory with a unique MAC address.

    How ARP spoofing is done?

    ARP spoofing attacks typically follow a similar progression. The attacker uses the ARP spoofing tool to scan for the IP and MAC addresses of hosts in the target’s subnet. The attacker chooses its target and begins sending ARP packets across the LAN that contain the attacker’s MAC address and the target’s IP address.

    Address Resolution Protocol (ARP) is a protocol or procedure that connects an ever-changing Internet Protocol (IP) address to a fixed physical machine address, also known as a media access control (MAC) address, in a local-area network (LAN).

    What is ARP and how it works?

    What is the best definition for ARP?

    Stands for “Address Resolution Protocol.” ARP is a protocol used for mapping an IP address to a computer connected to a local network LAN. The Address Resolution Protocol is used when information sent to a network arrives at the gateway, which serves as the entrance point to the network. …

    What is ARP process?

    As we’ve learned before, the Address Resolution Protocol (ARP) is the process by which a known L3 address is mapped to an unknown L2 address. The purpose for creating such a mapping is so a packet’s L2 header can be properly populated to deliver a packet to the next NIC in the path between two end points.

    How does ARP work?

    arping is a computer software tool for discovering and probing hosts on a computer network. Arping probes hosts on the examined network link by sending Link Layer frames using the Address Resolution Protocol (ARP) request method addressed to a host identified by its MAC address of the network interface.

    What is ARP explain in details?

    ARP (Address Resolution Protocol) is a network protocol used to find out the hardware (MAC) address of a device from an IP address. The sending device uses ARP to translate IP addresses to MAC addresses. The device sends an ARP request message containing the IP address of the receiving device.

    What is ARP reply?

    The ARP reply is a unicast response, containing the desired information, sent to the requestor’s link layer address. An even rarer usage of ARP is gratuitous ARP, where a machine announces its ownership of an IP address on a media segment. The arping utility can generate these gratuitous ARP frames.

    What are the two types of ARP attack?

    ARP Spoofing Attacks

    • Denial-of-service attacks: DoS attacks often leverage ARP spoofing to link multiple IP addresses with a single target’s MAC address.
    • Session hijacking: Session hijacking attacks can use ARP spoofing to steal session IDs, granting attackers access to private systems and data.

    Gratuitous ARPs are useful for four reasons: They can help detect IP conflicts. When a machine receives an ARP request containing a source IP that matches its own, then it knows there is an IP conflict. Other machines maintain an ARP table that contains the MAC associated with an IP.

    How is the ARP used in a network?

    ARP (Address Resolution Protocol) is a network protocol used to find out the hardware (MAC) address of a device from an IP address. It is used when a device wants to communicate with some other device on a local network (for example on an Ethernet network that requires physical addresses to be known before sending packets).

    Where can I find the ARP command in Linux?

    It is worth noting that the arp utility is not confined to UNIX/Linux operating systems and can be found on Windows operating systems as well as networking and security devices. What is ARP? ARP is the abbreviation for Address Resolution Protocol, which is used to find the address of a network neighbor for a given IPv4 address.

    How is Arp used to find MAC address?

    ARP (Address Resolution Protocol) is a network protocol used to find out the hardware (MAC) address of a device from an IP address.

    Is there an ARP tool for Windows 10?

    We will be exploring what the arp tool does and the type of information it provides with the help of examples. It is worth noting that the arp utility is not confined to UNIX/Linux operating systems and can be found on Windows operating systems as well as networking and security devices. What is ARP?
