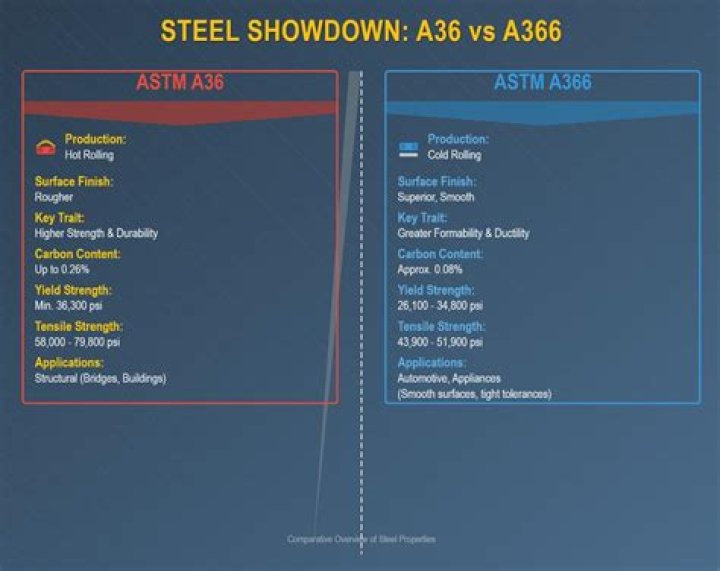

ASTM A366 describes cold rolled carbon steel of commercial quality. ASTM A569 designates hot rolled carbon steel sheet and strip of commercial quality, in coils and cut lengths, with a maximum carbon content of 0.15%. These steels are used for products produced by bending, moderate forming, and welding.
What is ASTM A1011 CS Type B?
A1011 CS Type B is a hot rolled commercial quality sheet (CS) carbon steel that is suitable for applications where normal surface imperfections are not objectionable. A1011 CS undergoes heat treatment and other processing operations.
What is CS B steel?
COMMERCIAL STEEL — CS Type B is a low cost steel sheet, soft enough to bend flat on itself in any direction without crack- ing, ductile enough for shallow drawing. Carbon is . 10 max. for improved welding and forming.
What is ASTM A1008?
A1008 is a standard specification for cold rolled, carbon steel. The process of cold rolling the sheet creates a smooth surface which is typically oiled to prevent surface rust from forming. Compared to hot rolled steel, A1008 is known for having excellent weldability and formability.
What is ASTM A1011 material?
The A1011 specification is the Standard Specification for light gauge Hot-Rolled Sheet and Strip Carbon(CS and DS), Structural(SS), High-Strength Low-Alloy(HSLAS), High-Strength Low-Alloy with Improved Formability(HSLAS-F), and Ultra-High Strength(UHSS) steels in thicknesses up to 0.230″(6 mm) in coil form.
What is CQ grade steel?
A designation of a grade of steel suitable for moderate forming processes. Material of this quality is ductile enough to be bent flat on itself in any direction in a standard bending process. The term is commonly used to designate mild steel. Also known as CS (commercial steel) or CQ (commercial quality).
What is CS type A?
The Chemical Composition: CS Type A is composed of 0.1 percent of Carbon, 0.6 percent Manganese, 0.03 percent Phosphorous, & 0.035 percent Sulphur. Remaining is Iron with other impurities. Zinc is coated on this composition of base steel.
What does C1010 mean?
C1010 is 0.08% to 0.13% carbon by weight and C1018 is 0.14% to 0.20% carbon by weight. The difference in carbon content between them can result in slight variations to ductility and tensile strength, but for the most part they are quite similar.
What is C1010 steel?
C1010, sometimes referred to as C1008, is a common or ordinary low carbon (0.25% maximum) steel as contrasted with special or alloy steels, which contain other alloying metals in addition to the usual constituents of steel in their common percentages. RESISTANCE TO CORROSION.
What is the difference between sa36 and A36 metals?
There are times when steel named A36 and SA36 are the same, especially if they are used in boiler and pressure vessels, but this is not always the case. An A36 steel can be different than SA36 in pressure areas, but all SA36 steel includes A36 designation, because the SA36 standards are based on ASTM standards.
What is ASTM 36 steel?
The ASTM 36 designation is for steel-covered plates, shapes and bars that are less than eight inches thick, with a yield of 36,000 psi. This is a carbon steel used in many applications throughout various industries, but does not include advanced alloys.
Is A36 carbon steel?
A36 is a low carbon steel. Low carbon steels are classified by having less than 0.3% carbon by weight. This allows A36 steel to be easily machined, welded, and formed, making it extremely useful as a general-purpose steel.
What is A36 steel plate?
ASTM A36 plate is a low carbon steel that exhibits good strength coupled with formability. It is easy to machine and fabricate and can be securely welded. A36 is a common structural steel plate that can be galvanized to provide increased corrosion resistance.
