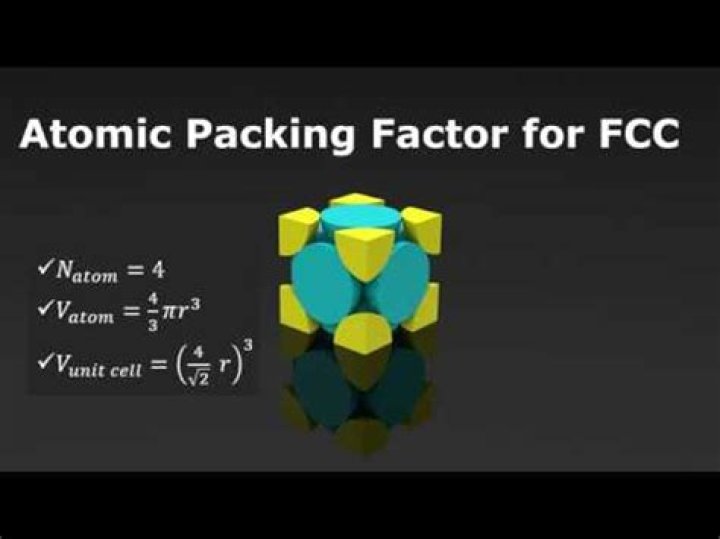

What is atomic packing fraction of FCC?

For fcc and hcp structures, the atomic packing factor is 0.74, which is the maximum packing possible for spheres all having the same diameter.

What is the formula for packing fraction?

The simplified packing fraction is 8 x (V atom) / V unit cell. After making substitutions for known volume of spheres and cubes and simplifying, the equation becomes √3 x π/16 with a solution of 0.3401. There are 14 types of lattice systems in total, which are subdivided into seven categories.

What is the packing factor for a fcc structure?

Explanation: The atomic packing factor is defined as the ratio of the volume occupied by the average number of atoms in a unit cell to the volume of the unit cell. for FCC a = 2√2 r where a is side of the cube and r is atomic radius.

How is FCC packing density calculated?

To calculate the particle packing density the spheres in the unit cell are counted up. The body-centered cubic structure contains (1 + 8·⅛ = 2) formula units per cell; the face-centered cubic unit cell contains (6·½ + 8·⅛ = 4) formula units, giving it the higher packing density.

What is the atomic packing factor for BCC and FCC respectively?

1. Show that the atomic packing factor for FCC is 0.74. 2. Show that the atomic packing factor for BCC is 0.68.

What is the packing fraction of diamond lattice?

As we consider that diamond is having cubic structure and we know that the packing fraction for ccp and hcp is 0.74.

How do you calculate the atomic packing fraction of FCC lattice?

Calculating the atomic packing factor for a crystal is simple: for some repeating volume, calculate the volume of the atoms inside and divide by the total volume. Usually, this “repeating volume” is just the volume of the unit cell.

What is FCC packing?

Cubic close packing also called face-centered cubic (fcc) structure. In this arrangements, each sphere has twelve neighbors. For every sphere, there is one gap surrounded by six spheres (octahedral) and two smaller gaps surrounded by four spheres (tetrahedral).

What is the packing fraction for a bcc lattice?

The packing fraction (or particle volume fraction) for a lattice is given by: ). For a sphere, the volume is For a SC lattice, the packing fraction is 0.524: For a FCC lattice, the packing fraction is 0.740: For a BCC lattice, the packing fraction is 0.680:

What is the packing fraction of a SC lattice?

The packing fraction (or particle volume fraction) for a lattice is given by: Where N is the number of particles per unit cell (which has volume ). For a sphere, the volume is so: For a cubic unit cell of edge-length a: For a SC lattice, the packing fraction is 0.524:

What is the packing efficiency of face centered cubic lattice?

The packing efficiency of the body-centred cubic cell is 68 %. Thus 32 % volume is empty space (void space). Packing Efficiency of Face Centred Cubic Crystal Lattice (FCC): In a face-centred cubic lattice, the eight atoms are located on the eight corners of the cube and one at the centre of the cube.

What is the packing fraction of atoms in FCC?

>> Packing fraction in face – Hence. in FCC, 74% of the total volume is occupied by atoms. Was this answer helpful? An element occurs in the body-centered cubic lattice with a cell edge of 300 pm.
