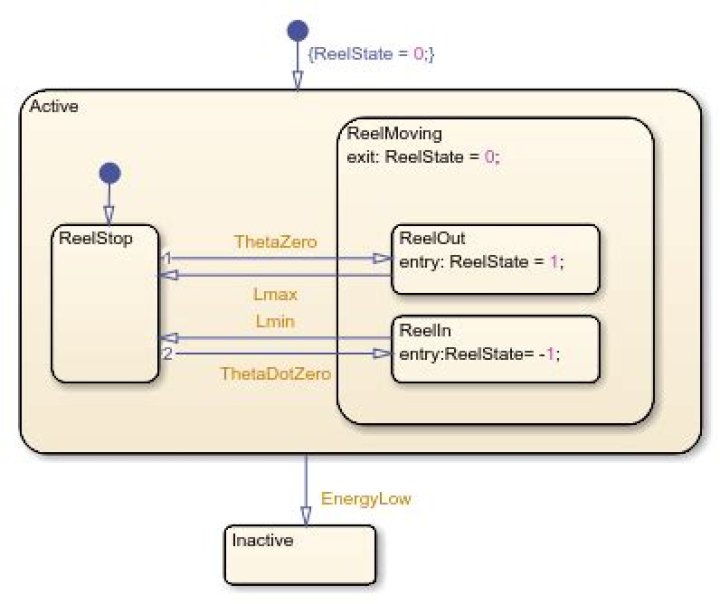

An atomic subchart is a graphical object that helps you to create independent subcomponents in a Stateflow® chart. Atomic subcharts are not supported in standalone Stateflow charts in MATLAB®. Atomic subcharts allow for: Reuse of the same state or subchart across multiple charts and models.
What is Subchart in Stateflow?
A subchart is a graphical object that can contain anything that a top-level chart can, including other subcharts. A subchart, or a subcharted state, is a superstate of the states that it contains. You can also create transitions to and from subcharts just as you can create transitions to and from superstates.
What is substate in Stateflow?
A state is a substate if it is contained by another state. A state that is neither a superstate nor a substate of another state is a state whose parent is the Stateflow chart itself.
What is super transition in Stateflow?
A supertransition is a transition between different levels in a chart. A supertransition can go between a state in a top-level chart and a substate in one of its sibling states, or between substates in different states of the chart.
How do you make parallel states in Stateflow?
In implicit ordering mode, a Stateflow chart orders parallel states implicitly based on location. Priority goes from top to bottom and then left to right, based on these rules: The higher the vertical position of a parallel state in the chart, the higher the execution priority for that state.
What are the states in Stateflow?
Stateflow provides two types of states: exclusive (OR) and parallel (AND) states. Exclusive (OR) states are used to describe modes that are mutually exclusive. A chart or state that contains exclusive (OR) states is said to have exclusive decomposition. The following transmission example has exclusive (OR) states.
What is action in Stateflow?
State actions define what a Stateflow chart does while a state is active. Action occurs on a time step when the state is already active and the chart does not transition out of the state. exit. ex. Action occurs on a time step when the chart transitions out of the state.
What is history junction in Stateflow?
A history junction represents historical decision points in the Stateflow® chart. The decision points are based on historical data relative to state activity. Placing a history junction in a superstate indicates that historical state activity information is used to determine the next state to become active.
What is condition action and transition action in Stateflow?
in your first image you have a Transition Action , which executes when the transition occurs (and after any state exit actions – if you had any for State A ), in your second image you have a Condition Action , which executes when any condition associated with the transition is determined to be true.
What is parallel state in Stateflow?
A chart or state with parallel states has two or more states that can be active at the same time. A chart or state that contains parallel (AND) states is said to have parallel decomposition. Parallel (AND) states are displayed as dashed rectangles.
What is Stateflow onramp?
Stateflow® Onramp is a self-paced, interactive tutorial that helps you get started with Stateflow. It is included with a Stateflow license. After completing Stateflow Onramp, you will be able to use the Stateflow environment and build Stateflow charts based on real-world examples. Stateflow symbols and data.
How do I learn Stateflow?
Tutorials
- STEP 1: Construct and Run a Stateflow Chart.
- STEP 2: Define Chart Behavior by Using Actions.
- STEP 3: Create a Hierarchy to Manage System Complexity.
- STEP 4: Model Synchronous Subsystems by Using Parallelism.
- STEP 5: Synchronize Parallel States by Broadcasting Events.
What is a Stateflow chart and how does it work?
For instance, this Stateflow chart presents the logic underlying a half-wave rectifier. The chart contains two states labeled On and Off. In the On state, the chart output signal y is equal to the input x . In the Off state, the output signal is set to zero.
How do I create a Stateflow chart in Simulink?
At the MATLAB command prompt, enter: Simulink creates a model called rectify that contains an empty Stateflow Chart block. To open the Stateflow Editor, double-click the chart block. To design reusable state machine and timing logic for MATLAB applications, create a standalone Stateflow chart that you can execute as a MATLAB object.
What is the Order of precedence in Stateflow charts?
This table summarizes the interpretation of all binary operations in Stateflow charts according to their order of precedence (0 = highest, 10 = lowest). Binary operations are left associative so that, in any expression, operators with the same precedence are evaluated from left to right.
How do I use the Stateflow editor during simulation?
During the simulation, the Stateflow Editor highlights active states and transitions through chart animation. After you simulate the model, double-click the Scope block. The scope displays the graphs of the input and output signals to the charts. The simulation results show that the rectifier filters out negative input values.
