Automatic Bottle Filling Machines are most commonly used in beverages and soft drink industries. These machines use a conveyor belt which is an economical and fast way to fill bottles. Belt conveyor is driven by a stepper motor at a constant preset speed.
Which type of timer is used in bottle filling plant?
When the bottle is in position and 0.5 seconds have elapsed, the solenoid (032) will open the filling valve and remain ON until the photoeye (PE) detects a proper level….Detection of position.
| Device | Internal | Description |
|---|---|---|
| Timer | 1002 | Timer for 0.7 sec delay after level detect |
| — | 1003 | Bottle filled, timed out, feed motor M1 |
What is automatic bottle filling machine?

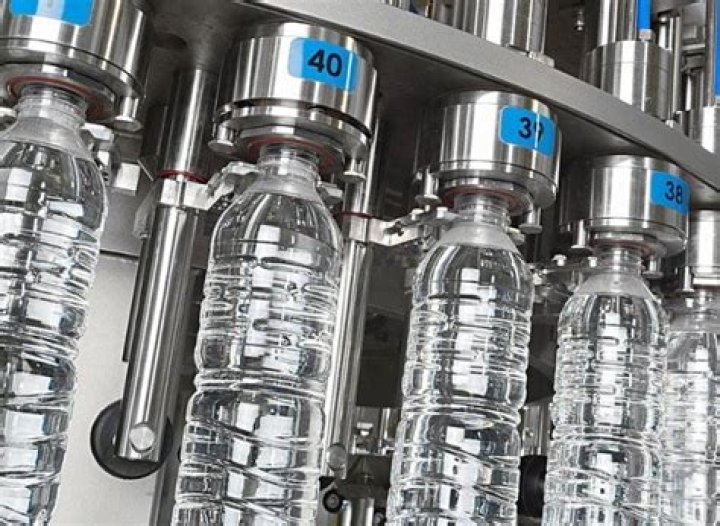

Fully Automatic Bottle Filling Machine is used to fill pure water, mineral water and other non-carbonated beverage. The relative fittings are from international famous brand. This machine is comprised of rinsing, filling and capping system.
What is the difference between relay logic and PLC?
The difference between a PLC and relay logic is that a PLC is a programmable device whereas relay logic is a network of hardwired electrical devices. Both a PLC and relay logic can perform logical computation, but a PLC does it using a microprocessor and relay logic does it using electric circuits.
How does a liquid filling machine work?
Pump filling machines, whether tabletop, semi-automatic or fully automatic, use one pump for each fill head on the machine. The pump assists in moving liquid through the product pathway and in to waiting container, making the machine a good solution for thicker, or less free-flowing, liquids.
What is Relay Logic in PLC?
Relay logic is a method of implementing combinational logic in electrical control circuits by using several electrical relays wired in a particular configuration.
What is filler machine?
Fillers (or filling machines) are used for packaging, mainly for food/beverage but for other products as well. These are used to fill either a bottle or a pouch, depending on the product. There are several types of fillers used by the packaging industry.
What is a capping machine?
A bottle cap machine is a machine that tightens or secures a container’s cap. Every company that fills products into bottles, containers, or jars needs a way to close the container, and the most common closure is a cap.
Why is PLC better than a relay?
PLCs are much more reliable and are way easier to troubleshoot. The mechanical functions of relays simply wear out over time. Plus, the wiring required to operate a relay system is much more complicated than a PLC system. This can also cause higher costs to install and upgrade due to extra labor costs.
How does plc bottle-filling work?
PLC implementation of the bottle-filling application After the bottle is filled, the control program will wait 0.7 seconds before moving to the next bottle. The program will include start and stop circuits for the outfeed motor and the start of the process.
How does a bottle filling system work?
The system makes use of filling using piston and syringe arrangement along with a capping system using motorized arrangement all integrated in a single machine. The entire assembly consists of a conveyor that pushes empty bottles towards the filling head.
How to use rslogix 500 automatic bottle filling system?
Automatic Bottle Filling System is one of the example in PLC program using RSLOGIX 500. Start and Stop PB is used to start and stop the process. Start is pressed Conveyor starts moving until the Proximity Sensor is ON. Then solenoid valve is open for 5 seconds. After 5s Conveyor should start moving.
How long does the control program Wait after filling the bottle?
After the bottle is filled, the control program will wait 0.7 seconds before moving to the next bottle. The program will include start and stop circuits for the outfeed motor and the start of the process. Table 1 shows the I/O address assignment, while Tables 2 and 3 present the internal and register assignments, respectively.
