What is C12200 copper?

C12200 copper is a lightly alloyed grade of copper, formulated for primary forming into wrought products. CW024A is the EN numeric designation for this material. C12200 is the UNS number. The properties of C12200 copper include thirteen common variations.

What are the structural properties of copper?

Copper is a reddish metal with a face-centered cubic crystalline structure. It reflects red and orange light and absorbs other frequencies in the visible spectrum, due to its band structure, so it as a nice reddish color. It is malleable, ductile, and an extremely good conductor of both heat and electricity.

What is DHP copper used for?

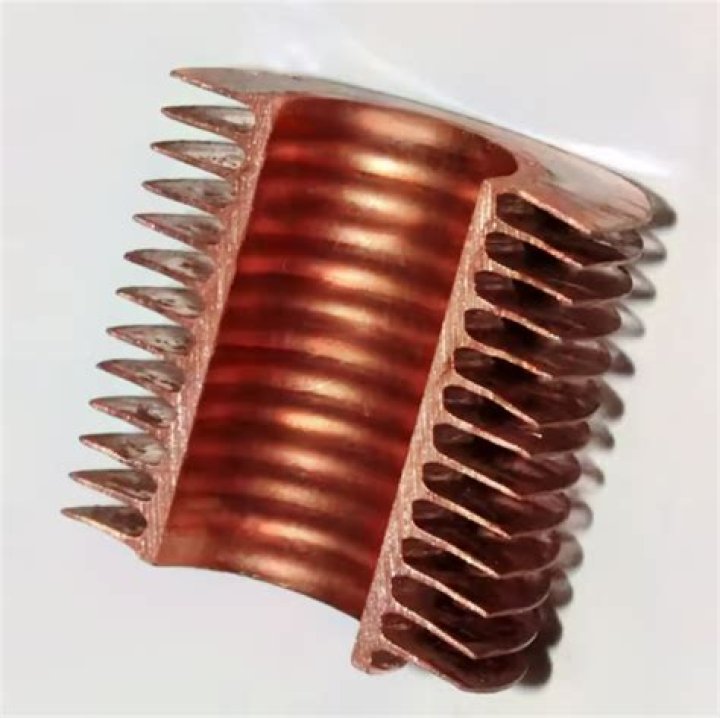

C12200 DHP Copper is very easy to work, used in a variety of industries from commercial and plumbing applications to industrial and heat transfer tubes. C12200 DHP Copper is also used in chiller applications where the tubes are finned or other surface enhancements are applied.

What is copper and mechanical properties of hard drawn copper?

Hard drawn copper has significantly higher tensile strength than soft annealed copper and is used as overhead wire whereas the soft annealed copper is flexible and has somewhat improved conductivity over hard drawn copper conductor.

What is ASTM b75?

Abstract. This specification establishes the requirements for seamless round, rectangular, and square copper tube (UNS Nos. C10100, C10200, C10300, C10800, C12000, and C12200) suitable for general engineering applications. The material of manufacture shall be billets, cast bars, or tube.

What is phosphorus Deoxidised copper?

Phosphorus Deoxidised Tough Pitch Copper (Cu-DLP) is a general purpose tough pitch, phosphorus deoxidised copper, within which the residual phosphorus is maintained at a low level (0.005-0.013%) to achieve a good electrical conductivity. It has good thermal conductivity and excellent welding and soldering properties.

What is CU DHP?

Cu-DHP is a phosphorus-deoxidized copper with a limited, high amount of residual Phosphorus. It has excellent welding and soldering properties and is resistant against hydrogen embrittlement. It can be deformed excellent, either hot or cold.

What are the three properties of copper?

Properties: Copper has a melting point of 1083.4 +/- 0.2°C, boiling point of 2567°C, specific gravity of 8.96 (20°C), with a valence of 1 or 2. Copper is reddish colored and takes a bright metallic luster. It is malleable, ductile, and a good conductor of electricity and heat.

What are coppers physical properties?

1 Physical and Chemical Properties Copper (Cu) in its pure form is a reddish-brown metallic element with high ductility and malleability that is an excellent conductor of heat and electricity: atomic weight 63.54; atomic number 29; density 8.94 g/cm3; melting point 1083°C; and boiling point 2595°C.

What are the mechanical properties of c12200?

C12200 has almost exactly the same mechanical properties as the high purity copper alloys such as C11000. It has excellent deep drawing characteristics and resistance to pitting corrosion when exposed to severe weather and water environments.
