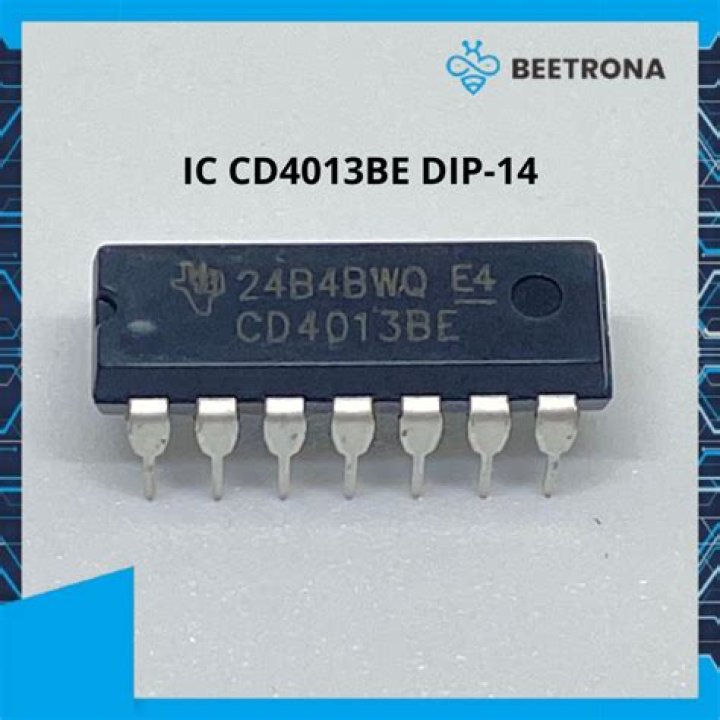

The CD4013B device consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications.
What is the IC number of D flip flop?
There are many different D flip-flop IC’s available in both TTL and CMOS packages with the more common being the 74LS74 which is a Dual D flip-flop IC, which contains two individual D type bistable’s within a single chip enabling single or master-slave toggle flip-flops to be made.
What is a 7476 IC?
The 7476 is a master—slave J-K and the 74LS76 is a negative edge-triggered J-K flip-flop. Both chips have the same pin configuration. Both chips have synchronous inputs of J, K and Cp. Both chips have asynchronous inputs.
What is clock pulse in flip-flop?
A clock pulse is a time varying voltage signal applied to control the operation (triggering) of a flip flop. For example, if a clock pulse is of frequency 1 Hz, the voltage it will supply will oscillate between X Volts and Y Volts(X and Y are any dc voltages), and this change occurs every half second.
What is NAND latch?
• The NAND gate latch or simply latch is a basic. FF. • The inputs are set and clear (reset) • The inputs are active low, that is, the output will. change when the input is pulsed low.
Is D flip flop edge triggered?
The D flip-flop is an edge triggered device which transfers input data to Q on clock rising or falling edge. Data Latches are level sensitive devices such as the data latch and the transparent latch.
What is the function of the cd4013 ic-4013?
The CD4013 or IC-4013 is a CMOS logic chip with two D-Type (DATA) Flip-flops. A clock pulse flow to C (clock pin), will store the data at the D input. Connect clock and a both Q output to make a toggle flip-flop for counting. For example use them:1HZ Standard digital clock.
How to use ic-4013?
We can use 4013 in many ways. Look at below for example how to use them. When we enter a signal with a high frequency to the input of IC-4013. It will divide the frequency by two. For example, you enter 1KHz frequency. Then, the output is 500Hz in the same waveform.
What is cd4013b flip-flop?
The CD4013B device consists of two identical, independent data-type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications.
