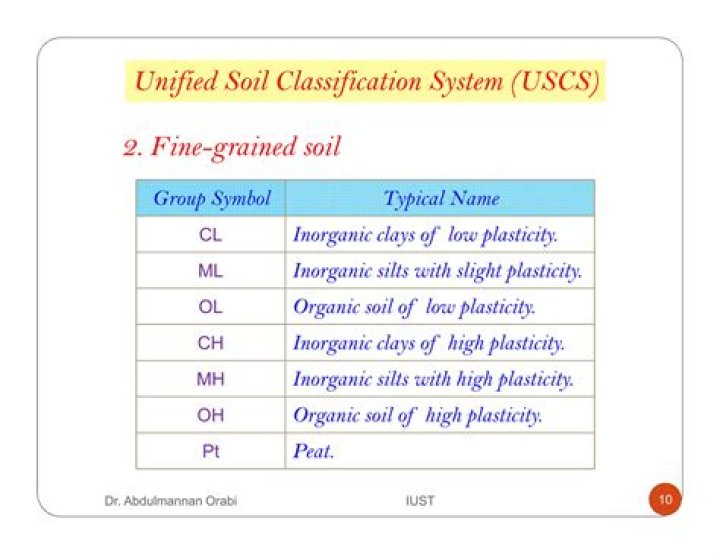

CL- Lean Clay-LL<50 & PI > 7 and plots on or above “A” line. ML- Silt-LL<50 & plots on or below the “A” line. CL-ML- Clayey Silt-LL<50 & PI >4< 7 and plots on or above “A” line.
What is soil classification?
The United States Department of Agriculture defines twelve major soil texture classifications ( sand, loamy sand, sandy loam, loam, silt loam, silt, sandy clay loam, clay loam, silty clay loam, sandy clay, silty clay, and clay). Soil textures are classified by the fractions of sand, silt, and clay in a soil.
What are 3 types of soil classification?
The USCS has three major classification groups: (1) coarse-grained soils (e.g. sands and gravels); (2) fine-grained soils (e.g. silts and clays); and (3) highly organic soils (referred to as “peat”). The USCS further subdivides the three major soil classes for clarification.
What is ASTM soil classification?
The ASTM version of the Unified Soil Classification System is ASTM D2487-17: Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System). This classification system is based on particle-size characteristics, liquid limit, and plasticity index.
What are the different types of soil?
Soil is classified into four types:
- Sandy soil.
- Silt Soil.
- Clay Soil.
- Loamy Soil.
What is ML in soil classification?
The soils in the ML and MH groups are sandy silts, clayey silts, or inorganic silts with relatively low plasticity. Also included are loess-type soils and rock flours. Micaceous and diatomaceous soils generally fall within the MH group but may extend into the ML group when their LL is less than 50.
What is the 4 soil classifications?
OSHA classifies soils into four categories: Solid Rock, Type A, Type B, and Type C. Solid Rock is the most stable, and Type C soil is the least stable.
What is CU value of soil?
The uniformity coefficient (Cu) is defined as the ratio of D60 to D10. A value of Cu greater than 4 to 6 classifies the soil as well graded. When Cu is less than 4, it is classified as poorly graded or uniformly graded soil. Uniformly graded soil has identical particles with Cu value approximately equal to 1.
What is D10 D50 and D90?
D10: The portion of particles with diameters smaller than this value is 10% D50: The portions of particles with diameters smaller and larger than this value are 50%. Also known as the median diameter. D90: The portion of particles with diameters below this value is 90%.
What is the purpose of soil classification?
Reason for classification: Soil classification is like a language between engineers. The known soil classification communicates their probable engineering behavior, and allows engineers access to the accumulated experience of other engineers.
What is the field classification technique for coarse-grained soil?
Field Classification Technique for Coarse-Grained Soils. 1. Take a representative sample of soil (excluding particles >75 mm) (see Note 1) and classify the soil as coarse-grained or fine-grained by estimating whether 50% by weight, of the particles can be seen individually by the naked eye.
What is the AASHTO soil system?
•The AASHTO System uses seven basic soil groups designated A-1 through A-7, the soil is placed in the groups by performance characteristics. A-1 is the best and A-7 is the worst. A-1 to A-3 are sands and gravels, A-4 to A-7 are silts and clays. There is a A-8 which is reserved for unusable peat.
