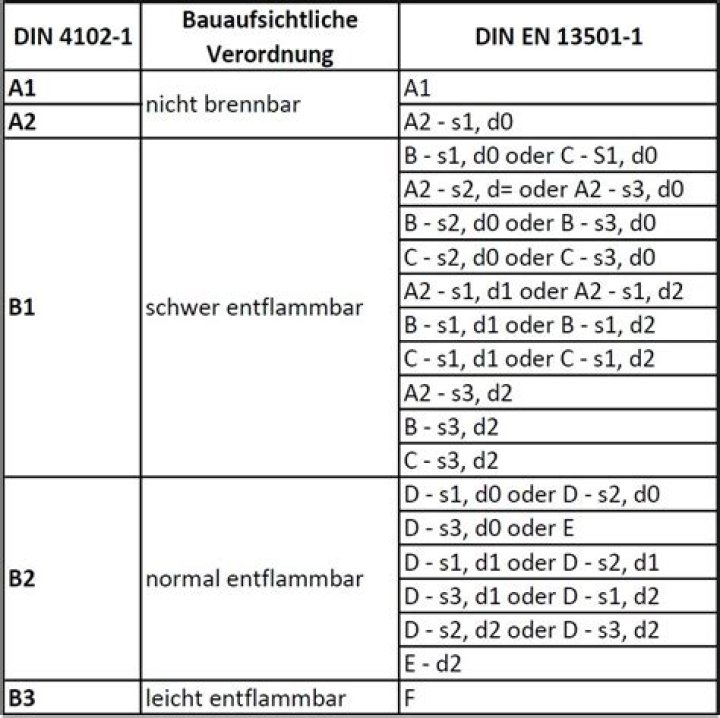

What is DIN 4102 1?

DIN 4102-1 : Fire behaviour of building materials and elements – Classification of building materials – Requirements and testing.

What does B1 fire rated mean?

The German DIN norm 4102 Part 1 classifies the building materials according to their flammability. B1 = low flammability. B2 = normal flammability. B3 = high flammability.

What is M1 fire rating?

European Flame Retardant Standards M1 B1 is the European flame retardant standard for contract drapery. It is used across Europe so companies are aware that a fabric and in turn the curtain made from that fabric is flame retardant and can be used safely in a commercial environment.

What is ASTM e84?

The ASTM E-84 is the standard test method for assessing the surface burning characteristics of building products to explore how the material might contribute to flame spread in the event of a fire. The test reports the Flame Spread index and Smoke Developed index of the tested product.

What NFPA 701?

NFPA 701 is the most standard methods of fire tests for flame propagation of textiles and films. This test has two test methods based on fabric density.

What is Class A Class 1 fire rating insulation?

A class 1 fire rating is the best fire rating of materials that can be achieved. Class A fire ratings indicate a flame spread rating somewhere between zero and 25. Materials that fall into Class A or Class 1 include things like brick, gypsum wallboard, and fiber cement exterior materials.

What is fire rating A2 s1 d0?

Cedral’s A2-s1,d0 fire performance classification means our materials are classed as non-combustible in Scotland and of limited combustibility in England and Wales, emit little or no smoke and produce no flaming droplets or particles within the first 10 minutes of fire exposure.

What is a Class 1 fire?

What is M4 fire rating?

M4 = D s3 (d1) Euroclass*: Highly flammable Alternatively, by an officially recognized equivalent of any report corresponding to European standards called Euroclass NF EN 13 501-1 applicable in member states of the union.

What is ASTM E84 class1?

A highly brominated bisphenoI-A epoxy based vinyl ester (HBVE) meets the current ASTM E84 Class 1 rating for flame spread and smoke development. In order to meet the class 1 criteria the laminate must have a flame spread of 25 or less and a smoke development of 450 or less.

Is ASTM E84 Class A?

ASTM E84 Class A Fire Rated Containment Systems As mentioned above, our RealWall, LiteBarrier, and FireblockWall containment systems, including the modular ceilings, have a Class A rating per ASTM E84, meaning they have the lowest fire spread rate and minimal smoke production.

What NFPA 260?

NFPA 260 – Cigarette Ignition Resistance Standard methods of tests and classification system for cigarette ignition resistance of components of upholstered furniture.

What is the meaning of Din 4102-1?

DIN 4102-1. Fire testing To Building Material – Germany Standard: DIN4102-1. 1. DIN 4102-1 fire test to building material – Standard Title：. DIN 4102-1 Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing.

What is the Din 4102-1 fire behavior of building materials?

DIN 4102-1 Fire behavior of building materials and elements Section 1: Classification of building materials Requirements and tests Under certain conditions, when a building material is exposed to fire, its behavior against fire by breaking down determines the reaction of that material to fire at the same time.

What is Class B1 material Din?

Class B. > B1: All materials, except flooring, may be classed as B1 materials if they – Withstand the test specified in DIN 4102-16 using the ‘Brandschacht’ apparatus specified in DIN 4102-15 – Meet the requirements for class B2 materials.

What is Din 51900-2?

> DIN 51900-2 Determination of gross calorific value of solid and liquid fuels using the bomb calorimeter, and calculation of calorific value – Method using the isothermal jacket
