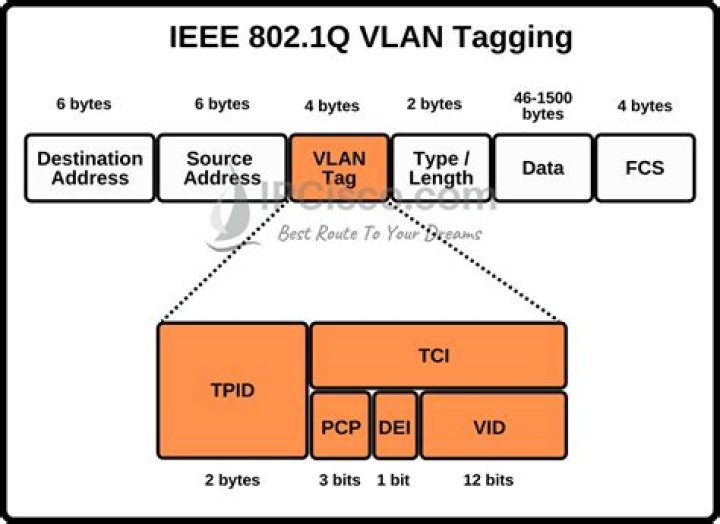

The IEEE 802.1Q trunking protocol describes something called the native VLAN. All native VLAN traffic is untagged; it doesn’t have an 802.1Q tag on the Ethernet frame. When your Cisco switches receive an Ethernet frame without a tag on an 802.1Q enabled interface, it will assume that it belongs to the native VLAN.
How do I tag a native VLAN?
This can be done by using the “switchport trunk native vlan [vlanid]” on the Ethernet switch’s trunk port interface and then removing that VLAN from the trunk port. It is also a bad practice to simply tag all VLANs across all trunk ports without regard to how the network should actually be configured.
Which type of Switchport strips all VLAN information from the frame before it egresses the interface on the switch?
When a frame leaves an untagged port, the switch strips the VLAN tag from the frame. The traffic is then forwarded as normal.
What is the native VLAN by default?
Default VLAN is VLAN 1 which cannot be shut down in any case and also it carries controlling traffic. In the case of Cisco (and most vendors), the Default Native VLAN is VLAN 1.
What is native VLAN on trunk port?
A Trunk port (or “tagged port” in the non Cisco world) is a switch port which carries traffic for multiple VLANs. When frames traverse a Trunk port, a VLAN tag is added to distinguish which frames belong to which VLANs. The Native VLAN is simply the one VLAN which traverses a Trunk port without a VLAN tag.
What is trunk native VLAN?
Native VLAN: The native VLAN is the one into which untagged traffic will be put when it’s received on a trunk port. This makes it possible for your VLAN to support legacy devices or devices that don’t tag their traffic like some wireless access points and simply network attached devices.
What is VLAN tagging and trunking?
VLAN Tagging, also known as Frame Tagging, is a method developed by Cisco to help identify packets travelling through trunk links. The Trunk Links allow frames from all VLANs to travel throughout the network backbone and reach their destination regardless of the VLAN the frame belongs to.
Why is VLAN trunking used?
Why is trunking important to VLAN configuration? With VLAN trunking, it’s possible to extend a VLAN across the network. When you implement multiple VLANs across a network, trunk links are necessary to ensure that VLAN signals remain properly segregated for each to reach their intended destination.
Is native VLAN allowed on trunk?
All VLAN IDs are allowed on each trunk. However, you can remove VLANs from this inclusive list to prevent traffic from the specified VLANs from passing over the trunk. You can add any specific VLANs later that you may want the trunk to carry traffic for back to the list.
What is a trunk native VLAN?
When frames traverse a Trunk port, a VLAN tag is added to distinguish which frames belong to which VLANs. The Native VLAN is simply the one VLAN which traverses a Trunk port without a VLAN tag.
Do you need to allow native VLAN on trunk?
The current best practice is to not include the native VLAN in the allowed VLANs on a trunk, and to not use VLAN 1 for anything. There is a misconception that you must have a native VLAN on a trunk. The link-local protocols that send frames without tags will still work.
Does VLAN Dot1q tag native work with trunking?
I can confirm that if vlan dot1q tag native is configured, a trunk always performs tagging on the outgoing frames (i.e. the native VLAN setting is ignored and all frames are tagged with the corresponding tag value). Untagged frames arriving at a trunk port will be dropped without being forwarded further.
How do I tag the native VLAN?
By default the native vlan is not tagged. However, you entered “vlan dot1q tag native” which will cause tags to be used on the native vlan.
How do I configure a trunk port in Cisco NX-OS?
You can configure an Ethernet port as a trunk port; a trunk port transmits untagged packets for the native VLAN plus encapsulated, tagged, packets for multiple VLANs. Cisco NX-OS supports only 802.1Q encapsulation. To configure a trunk port, perform this task: Enters configuration mode.
Does NX-OS support VLAN trunk encapsulation on Nexus 5000 series switches?
Cisco NX-OS supports only IEEE 802.1Q-type VLAN trunk encapsulation. This chapter describes the configuration of access or trunk ports on Cisco Nexus 5000 Series switches. It includes the following sections: Ethernet interfaces can be configured either as access ports or a trunk ports, as follows:
