The Ebers-Moll Model is an electronic representation of a transistor, either NPN or PNP, in any of the four fundamental configurations. For the ideal transistor, these parameters are the saturation currents of the emitter and collector junctions and the normal and inverted alphas.
What is Ebers-Moll equation?
The Ebers-Moll equations are based on two exponential diodes plus two current-controlled current sources. The NPN Bipolar Transistor block provides the following enhancements to that model: Early voltage effect. Optional base, collector, and emitter resistances.
What is the significance of Ebers-Moll model?
Ebers-Moll Model: It is an ideal model for BJT, that can be used in forward or reverse active mode of operation, as well as in both saturation and cut-off mode also. Analysis: The two diodes represent Base emitter and Base collector diodes.
Who were Ebers and Moll?
Jewell James Ebers (November 25, 1921 – March 30, 1959) was an American electrical engineer who is remembered for the mathematical model of the bipolar junction transistor that he published with John L. Moll in 1954.
What is Ebers-Moll model of BJT?
The Ebers-Moll BJT Model is a good large-signal, steady-state model of the transistor and allows the state of conduction of the device to be easily determined for different modes of operation of the device. The different modes of operation are determined by the manner in which the junctions are biased.
How BJT can be used as a switch?
The transistor can be used as a switch if biased in the saturation and cut-off regions. This allows current to flow (or not) in other parts of a circuit. Because a transistor’s collector current is proportionally limited by its base current, it can be used as a sort of current-controlled switch.
What are disadvantages of Ebers-Moll model?
1 Answer. The original Ebers-Moll model can’t capture the Early Effect or any charge storage effects. It can be modified to include these: Mathworks NPN enhanced Ebers-Moll model. There is also the Gummel-Poon model.
How can a PNP transistor be used as a switch?
For a PNP transistor, the Emitter potential must be positive with respect to the Base. Then the transistor operates as a “single-pole single-throw” (SPST) solid state switch. With a zero signal applied to the Base of the transistor it turns “OFF” acting like an open switch and zero collector current flows.
What is a BJT switch?
Bipolar junction transistor (BJT) has three terminals and two junctions. The function of the transistor is to amplify the signal. The transistor acts as a switch in the cut-off mode and the saturation mode. The transistor is fully off in the cutoff region and fully on the saturation region.
What is forward active mode?
Typically we want to have a transistor to operate in what is called active mode. Active mode is when the Base-Emitter junction is forward biased and the Base-Collector Junction is Reverse biased. For the npn this means that the Base has a higher potential than the Emitter and a lower potential than the collector.
How do transistors work as a switch?
One of the most common uses for transistors in an electronic circuit is as simple switches. In short, a transistor conducts current across the collector-emitter path only when a voltage is applied to the base. When no base voltage is present, the switch is off. When base voltage is present, the switch is on.
Can we replace PNP transistor with NPN?
Generally, the PNP transistor can replace NPN transistors in most electronic circuits, the only difference is the polarities of the voltages, and the directions of the current flow. PNP transistors can also be used as switching devices and an example of a PNP transistor switch is shown below.

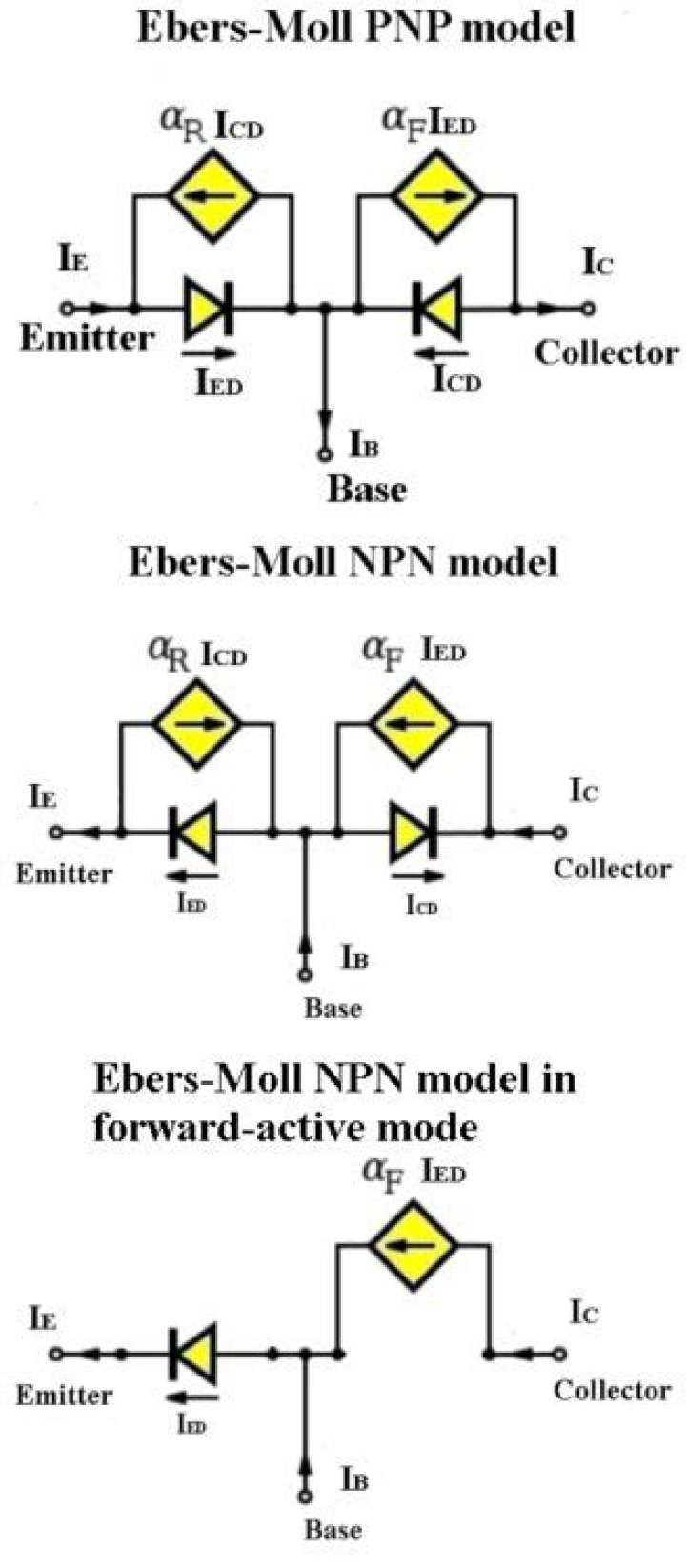

What is the Ebers Moll model for NPN transistor?
Ebers–Moll model for an NPN transistor. mode are well modeled by an approximation to the Ebers–Moll model. Ebers and Moll created a model between the current and voltages in the transistor terminals. This model is knowned as the Ebers Moll model.
What is the Ebers-Moll model?
Jewel James Ebers and John L. Moll introduced this mathematical model of transistor currents in 1954. The model is described in a paper titled Large Signal Behavior of Junction Transistors, which appeared in Proceedings of the Institute of Radio Engineers.
What is the E/kT of an NPN transistor?
(At room temp, e/kT ≈ 40 V -1 .) npn and pnp transistors have two of these junctions. A model for an npn is The collector current is sum of the negative of the BC ideal diode current and the BE transport current.
How to eliminate the base-collector junction current in a bipolar transistor?
In addition we eliminate the base-collector junction current by setting VBC= 0. The minority-carrier distribution in the quasi-neutral regions of the bipolar transistor, as shown in Figure 5.3.1, is used to analyze this situation in more detail.
