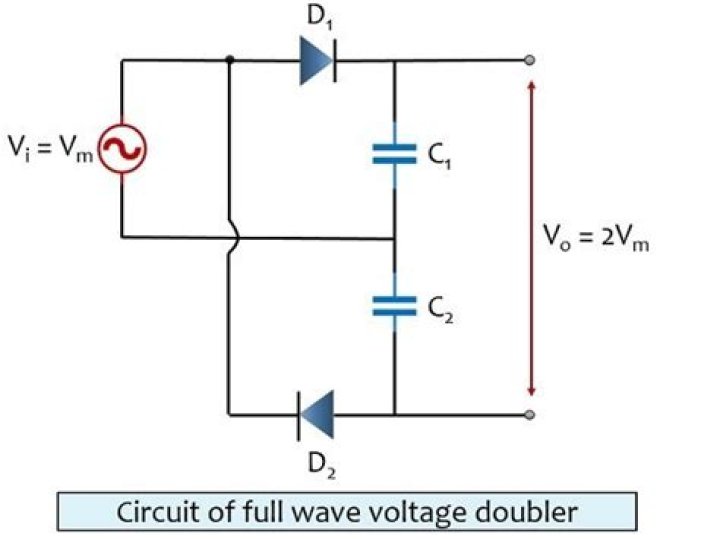

➢ A Full wave voltage doubler is a voltage multiplier with a multiplication factor of two. When the secondary voltage is positive, the first diode D is forward-biased and the primary capacitor C charges to approximately Vp.
What is voltage doubler network?
A voltage doubler is an electronic circuit which charges capacitors from the input voltage and switches these charges in such a way that, in the ideal case, exactly twice the voltage is produced at the output as at its input. Voltage doublers are a variety of voltage multiplier circuit.
How do you calculate voltage doubler?
The voltage across capacitor, C2 discharges through the load ready for the next half cycle. Then the voltage across capacitor, C2 can be calculated as: Vout = 2Vp, (minus of course the voltage drops across the diodes used) where Vp is the peak value of the input voltage.
What is the difference between half wave voltage doubler and full wave voltage doubler?
The ripple frequency of the output signal obtained by full wave voltage doubler is twice of the ripple frequency of the output signal obtained by half wave voltage doubler circuit. Thus, these higher ripple frequencies can be easily filtered in comparison to low frequencies ripples.
What is the difference between full wave rectifier and voltage doubler?
The advantage of a full-wave voltage doubler over an half-wave voltage doubler is that the output ripple frequency is twice the supply frequency and it is easier to filter high frequency ripples. The drawback of a full-wave voltage doubler is that common ground between input and output is not available.
What is the disadvantage of a full wave voltage doubler?
The only drawback of full wave voltage doubler is that it does not provide common point between input lines and output lines for earthing. While in case of half wave voltage doubler there is a common point between input and output lines.
How do you calculate capacitor voltage doubler?
Capacitance is defined as C = Q / V; Charge, Q = I · time; ∴ C = I · t / v; The answer to your question is therefore C = I · dt/dv. As an example, if Vcpk was 2.3 volts then dv = 2 * (2.3 – 2.0); ∴ dv = 0.6 volt.
How do voltage multipliers work?
A voltage multiplier is a specialized type of rectifier circuit that converts an AC voltage to a higher DC voltage. They have the advantage of being relatively easy to build, and are cheaper than an equivalent high voltage transformer of the same output rating.
What advantages does a full wave voltage doubler have over a half wave voltage doubler?
What are shunt and multipliers?
Shunts and Multipliers. Amp meters can be used to measure different current ranges, to do this the meter must have a shunt resistor fitted in parallel with the measuring circuit. Where Rs is the shunt resistor, Rm is the meters internal resistance and n is the multiplier (Current to be Measured).
What is a full wave voltage doubler circuit?
It is in actuality a modified capacitor filter circuit (rectifier circuit) which makes a DC output voltage that is two or more than two times the AC peak input. In this section, we can look into full-wave voltage doubler, half-wave voltage doubler, voltage tripler and finally quadrupler.
What is a variablevoltage doubler?
Voltage doubler, as the name indicates it can deliver the output voltage which is double as that of the input voltage. It is a voltage multiplier with the voltage multiplication factor equal to 2. The circuit is formed by an oscillating AC input voltage, two capacitors and two diodes.
Can a full wave voltage doubler deliver 2Vs Max without transformer?
We find that, both half-wave and full-wave voltage doubler deliver 2VS MAX as output without involving any transformer. Here the diodes will need to be rated at peak inverse voltage equal to 2VS MAX.
What is the output waveform of a full wave rectifier?
The output waveform shows half-wave rectification with an amplitude of about twice the input voltage. Rectifier D2 permits current to flow in only one direction to the load. A full-wave voltage doubler is drawn in Figure 2. During the positive peak of the ac input, point A is positive.
