Gradient is a measure of a road’s steepness—the magnitude of its incline or slope as compared to the horizontal. Most often presented as a percentage, the gradient of a climb will normally fall somewhere between 3-15 per cent.
What is a 10% slope?
It expresses the ratio of difference in altitude between two points on a slope to the horizontal distance between the points, multiplied by 100. For example a 10 percent slope means that, for every 100 feet of horizontal distance, the altitude changes by 10 feet: Facebook.
How do you calculate incline percentage?
To find the percent of incline of a grade, solve the rise/run fraction as a decimal, then convert to a percentage. For example, if the grade is 5/16, solve as a decimal, which is . 3125. To find the percentage multiply this decimal by 100, like this: 100 × .
What is a 15% slope?
Example: a road with 15% slope has an angle of 8.53°.
What is a 6% slope?
A six percent slope means that the road elevation changes 6 feet for every 100 feet of horizontal distance (Figure 1.3). Figure 1.3. A road climbs at a gradient of 6 percent. The road gains 6 feet in elevation for every 100 feet of horizontal distance.
What is a 5% gradient?
To put it simply; for every 100 feet you go forward you will travel vertically a few feet, then place a percentage sign after that vertical distance and you’ve got your gradient. E.g. If you go up five feet as you go forward 100 feet, that’s a 5% grade.
How do you calculate the gradient of a ramp?
Ramp Gradient Calculator
- Length of ramp (mm)*
- Height of steps (mm)* Total height of step(s) to the top lip of any threshold (mm)
- Ramp gradient. Gradient = Length / Height.
How do you convert degrees to gradients?
How to Convert Gradians to Degrees. To convert a gradian measurement to a degree measurement, multiply the angle by the conversion ratio. The angle in degrees is equal to the gradians multiplied by 0.9.
How steep is a 30 percent grade?
Stages:
| Slope (%) | Approximate degrees | Terminology |
|---|---|---|
| 15 – 30 | 8.5 – 16.5 | Strong slope |
| 30 – 45 | 16.5 – 24 | Very strong slope |
| 45 – 70 | 24 – 35 | Extreme slope |
| 70 – 100 | 35 – 45 | Steep slope |
What is a 20% slope?
Slopes vs. gradients vs. % grades
| Slope | ||
|---|---|---|
| Angle (degrees) | Gradient | |
| 18 | 1 | 3.078 |
| 19 | 1 | 2.904 |
| 20 | 1 | 2.747 |

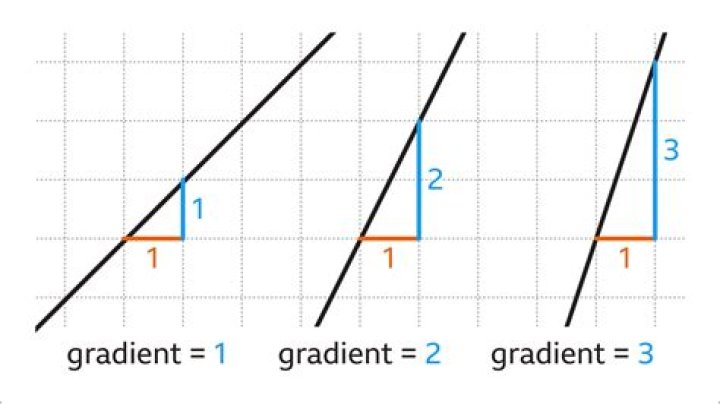

How do you calculate gradient?
Gradient (Slope) of a Straight Line. The Gradient (also called Slope) of a straight line shows how steep a straight line is. To calculate the Gradient: Divide the change in height by the change in horizontal distance.
What is the difference between gradient and slope?
Gradient is a synonym of slope. As nouns the difference between gradient and slope. is that gradient is a slope or incline while slope is an area of ground that tends evenly upward or downward.
How do you calculate slope percent?
To calculate percent slope, divide the difference between the elevations of two points by the distance between them, then multiply the quotient by 100. The difference in elevation between points is called the rise. The distance between the points is called the run.
How do you calculate slope grade?
Divide the rise by the run to determine the slope. The steeper the incline or decline, the larger the number will be. If it is downhill, it will be negative. If it is uphill it will be positive. Multiply the slope by 100 to get the grade. The grade is expressed as a percentage of the slope.
