Hydraulic elevators are elevators which are powered by a piston that travels inside a cylinder. An electric motor pumps hydraulic oil into the cylinder to move the piston. The piston smoothly lifts the elevator cab. Electrical valves control the release of the oil for a gentle descent.
How does a Holeless hydraulic elevator work?
Holeless Hydraulic Elevator Holeless hydraulic systems use direct-acting pistons mounted inside the hoistway to raise and lower the car. Travel may dictate the depth of the pit and potential overhead clearance requirements.
What is a Holeless hydraulic elevator?
Holeless MRL Elevator machines are located in the hoistway, eliminating the need for a traditional machine room. They are designed for low-rise buildings having up to 16 feet of rise.
Are all elevators hydraulic?
Not all hydraulic elevators are created equal! There are several variations that can make each system unique. With this type of elevator, hydraulic cylinders extend into the ground and are placed inside of a drilled hole.
Are hydraulic elevators safe?
The hydraulic elevator system is reliable and safe. The elevator cab is never suspended in the air and is held up by the hydraulic arm at higher floors. The arm safely carries the cab and its passengers up and down. Their reliability and safety make them a popular residential elevator choice.
Can hydraulic elevators fall?
Hydraulic elevators are more likely than cable elevators to fall. These elevators are pushed from the bottom by a giant piston, similar to those you see on service station car jacks. Because the piston is subject to ground corrosion, it can rot, which could cause the elevator car to fall.
What supports a hydraulic elevator?
Hydraulic elevators are supported by a piston at the bottom of the elevator that pushes the elevator up as an electric motor forces oil or another hydraulic fluid into the piston.
Do hydraulic elevators have counterweights?
A hydraulic elevator includes a hydraulic ram and a counterweight that are directly roped. The hydraulic ram includes a single-acting cylinder, piston and yoke that are placed within the hoistway adjacent to the path of motion of an elevator car.
What is the tallest hydraulic elevator?
The world’s tallest elevator is at AngloGold Ashanti’s Mponeng Gold Mine in South Africa, which in three minutes drops an astonishing 2,283 m (7,490 ft) in a single descent – more than 4.5 times further than those in the world’s tallest building, the Burj Khalifa.
How long do hydraulic elevators last?
20 to 25-year
Hydraulic elevators typically have 20 to 25-year lifespans while overhead traction elevators have lifespans of about 30 years. Machine room-less (MRL) traction elevators have the shortest lifespans (10 to 15 years) due to their reliance on computerized controllers and lighter duty materials.
How long does hydraulic elevator last?
How do hydhydraulic Elevators work?
Hydraulic elevators also incorporate electrical valves to control the release of oil for a gentle ride. The fluid needed to power a hydraulic elevator must be oil-based. Vegetable oil or biodegradable oil can be used as environmentally friendly options.
Do you need a drilled hole for a hydraulic elevator?
Since a drilled hole isn’t necessary, existing buildings or areas where drilling isn’t an option can benefit from a holeless hydraulic elevator. However, these models aren’t suited for more than 40’ of travel.

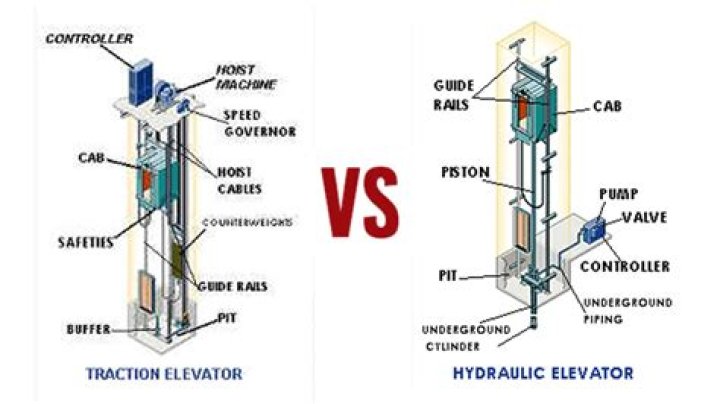

What is the difference between traction elevators and hydraulic elevators?
Traction elevators utilize steel ropes or belts on a pulley system. Hydraulic elevators are powered by hydraulic jack, which are fluid-driven pistons that travel inside of a cylinder. How Do Hydraulic Elevators Work? Unlike traction elevators, hydraulic systems don’t use overhead hoisting machinery.
What are the different types of elevator systems?
There are two main types of elevator systems: traction and hydraulic. Traction elevators utilize steel ropes or belts on a pulley system. Hydraulic elevators are powered by hydraulic jack, which are fluid-driven pistons that travel inside of a cylinder.
