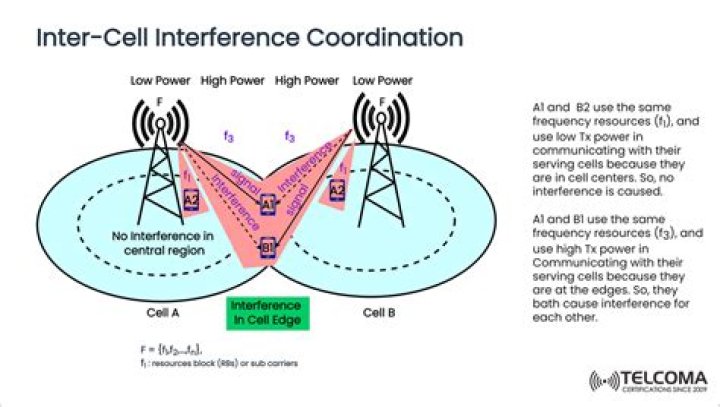

ICIC is defined in 3GPP release 8 as an interference coordination technology used in LTE systems. It reduces inter-cell interference by having UEs, at the same cell edge but belonging to different cells, use different frequency resources.
What is Inter-cell interference Coordination LTE?
LTE uses frequency reuse factor of 1 in order to maximize spectrum efficiency. This inherently means that transmissions carried out on the same time-frequency resource will cause interference between different cells at cell-edges.
What is Inter-cell rrm?
Inter-cell radio resource management Like in most cellular system deployments, the overall system spectral efficiency is not range limited or noise limited, but interference limited. Inter-cell radio resource management coordinates resource allocation between different cell sites by using multi-user MIMO techniques.
What is ICIC Telecom?
Inter-cell interference coordination (ICIC) techniques present a solution by applying restrictions to the radio resource management (RRM) block, improving favorable channel conditions across subsets of users that are severely impacted by the interference, and thus attaining high spectral efficiency.
What is 5G ICIC?
The arrival of the 5G NR provides a unique opportunity for introducing new inter-cell interference coordination (ICIC) mechanisms. In the uplink, inter-cell coordination of the pilot sequence configuration mitigates the inter-cell interference problem of such pilots, which is especially severe for cell-edge users.
What is eICIC?
eICIC is an interference control technology defined in 3GPP release 10. To prevent inter-cell interference, ICIC allows cell-edge UEs in neighbor cells to use different frequency ranges (RBs or sub-carriers). On the other hand, eICIC allows them to use different time ranges (subframes) for the same purpose.
Is responsible for RRM in LTE?
The eNodeB provides the radio interface and performs radio resource management for Long-Term Evolution (LTE), including radio bearer control, radio admission control, and scheduling of uplink and downlink radio resources for individual UEs.
What is the function of RRM?
The purpose of RRM function is to ensure efficient use of the available network resources. In particular, RRM in E-UTRAN provides a means to manage (e.g., assign, reassign, and release) radio resources in single and multi-cell environments.
What is LTE CoMP?
Coordinated multipoint (CoMP) transmission and reception is the key technique in LTE-Advanced to improve the cell-edge throughput and/or system throughput. Joint processing (JP) in CoMP technology provides multiple data transmission points for each user among multiple cooperated radio base stations.
What does RRM mean?
RRM
| Acronym | Definition |
|---|---|
| RRM | Risk-Reduction Mastectomy (cancer prevention) |
| RRM | Risk Reduction Measure (hazard prevention) |
| RRM | Resilient Risk Management |
| RRM | Remote Radio Module |
What are three options of RRM?
RRM enables controller to monitor their associated AP for the following information.
- Traffic Load (how many clients in a given AP)
- Interference (coming from other 802.11 soruces)
- NOise (non-802.11 that interfere with current CH)
- Coverage (RSSI & SNR for all connected CH)
- Other APs (number of nearby AP)
What is CoMP 5g?
Coordinated Multipoint (CoMP). CoMP allows connections to several base stations at once (eNodeBs in LTE parlance). CoMP started to be used more aggressively in LTE Advanced, as a way of improving service at the cell edge, by utilizing multiple eNBs, boosting the signal and reducing interference.
What is LTE (LTE)?
The Long-Term Evolution (LTE) is often called “4G”, but many also claim that LTE release 10, also referred to as LTE-Advanced, is the true 4G evolution step, with the first release of LTE (release 8) then being labeled as “3.9G”. This continuing race of increasing sequence numbers of mobile system generations is in fact just a matter of labels.
What is LTE-Advanced Radio Access?
Release 10, also known as LTE-Advanced, is of particular interest as it is the major technology approved by the ITU as fulfilling the IMT- Advanced requirements. The description in this book is based on LTE release 10 and thus provides a complete description of the LTE-Advanced radio access from the bottom up.
What are the LTE signal strength values?
Below are explanations of the LTE signal strength values (and also RSSI in relation to LTE): SINR/SNR – The signal-to-noise ratio of the given signal. RSRP – The average power received from a single Reference signal, and Its typical range is around -44dbm (good) to -140dbm (bad).
What is RSSI in LTE signal strength?
Signal Type Definitions Below are explanations of the LTE signal strength values (and also RSSI in relation to LTE): SINR/SNR – The signal-to-noise ratio of the given signal. RSRP – The average power received from a single Reference signal, and Its typical range is around -44dbm (good) to -140dbm (bad).
