An organizational unit (OU) definition specifies the LDAP source directories available to the integration. Role required: admin. About this task. OU definitions can contain locations, people, or user groups.
Is LDAP hierarchical?
LDAP, or Lightweight Directory Access Protocol, is an open protocol used to store and retrieve data from a hierarchical directory structure. Commonly used to store information about an organization and its assets and users, LDAP is a flexible solution for defining any type of entity and its qualities.
What is LDAP in simple terms?
LDAP (Lightweight Directory Access Protocol) is an open and cross platform protocol used for directory services authentication. LDAP provides the communication language that applications use to communicate with other directory services servers.
What are LDAP attributes?
LDAP# Attribute has an attributeTypes, which contains the name of that attribute (which links it to an Attribute Type) and an optional set of Attribute Options, and a collection of one or more values. A LDAP Entry contains a collection of Attributes.
What does DC stand for in LDAP?
domain component
The moniker “cn” means Common Name. Similarly, the moniker “dc” means domain component. The component “dc=MyDomain” is a domain component with the name “MyDomain”.
What is the difference between CN and OU?
CN stands for Common Name and is an attribute of several person-related classes such as inetOrgPerson. But there’s nothing stopping it being an attribute of other classes, such as organizationalRole. OU stands for Organizational Unit and is an attribute of the organizationalUnit class.
What does DN mean in LDAP?
distinguished name
The LDAP API references an LDAP object by its distinguished name (DN). A DN is a sequence of relative distinguished names (RDN) connected by commas. An RDN is an attribute with an associated value in the form attribute=value; normally expressed in a UTF-8 string format.
What are the components of LDAP?
An LDAP entry is a collection of information about an entity. Each entry consists of three primary components: a distinguished name, a collection of attributes, and a collection of object classes.
What does CN mean Active Directory?
Common Name
| Object Class | Naming attribute |
|---|---|
| user | cn (Common Name) |
| group | cn (Common Name) |
| computer | cn (Common Name) |
| container | cn (Common Name) |
What is OU DC in Active Directory?
The designator for an Active Directory domain with the DNS name Company.com would be dc=Company,dc=com. Organizational Unit (OU). OU objects act as containers that hold other objects. They provide structure to the LDAP namespace.
What does LDAP stand for?
Created in 1993, LDAP stands for Lightweight Directory Access Protocol and is a standard application protocol for accessing and managing a directory service. LDAP was created as a simple implementation of the International Standardization Organization (ISO) X.500 standard for directory services.
What is LDAP and its uses?
Uses of LDAP. The common use of LDAP is to provide a central place for authentication — meaning it stores usernames and passwords.

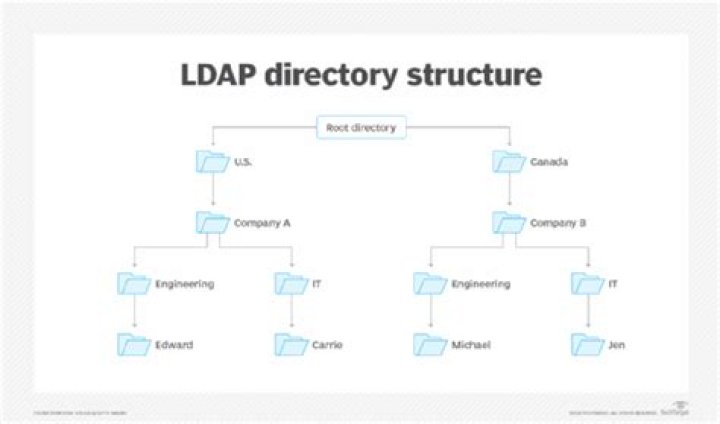

How is LDAP organized?
The root directory (the starting place or the source of the tree),which branches out to:
What protocol does LDAP use?
The Lightweight Directory Access Protocol (LDAP /ˈɛldæp/) is an open, vendor-neutral, industry standard application protocol for accessing and maintaining distributed directory information services over an Internet Protocol (IP) network.
