The circuit for blinking an LED using transistors is called an Astable Multivibrator. The two capacitors C1 and C2 will alternate between being charged and discharged and thereby turning the transistors ON and OFF. When a transistor is ON it allows current to flow through it so that the LED above it will light up.
Do flashing LEDs need resistors?
3 Answers. No, no resistor is required, the chip takes its place. Normal LEDs are prone to go into thermal runaway when run from a fixed-voltage source without a series resistor.
How do you make an LED blink with a capacitor?
- Connect your batteries in series (negative connected to positive)
- Connect 1k ohm resistor from positive to a row in the middle of the board.>
- Connect capacitor positive lead to 1k ohm resistor and negative lead back to ground>
- Connect transistor’s emitter in between the 1k resistor and the capacitor’s positive lead.
How do you slow down LED flashing lights?
Most circuits use resistors to control LED blink rate. Once you find where the resistors that control the blink rate are located, you can adjust the resistors’ value for a slower blink rate. Obtain the schematic of the LED flasher circuit you want to stop the LEDs from blinking too fast.
Why are my LED lights flickering?
It could be a number of things. But most commonly, LED bulbs may flicker or dim in your home when there are voltage fluctuations in your home’s wiring. When electrical loads turn on and off in your home, this creates a change in voltage levels, which may cause the LED lights to occasionally dim or flicker.
What happens if you put too much voltage through an LED?
Simply put, too much voltage kills the LED. Therefore, if the voltage deviates more than 10%, the LED bulb is fused off. Subsequently, the electronic parts inside the LED bulb get damaged from the voltage spike.
Do LED lights have capacitors?
Capacitors are generally used in LED drivers for smoothening and reducing the ripple coming from the power supply. Selecting the right capacitors for LED lighting systems helps in avoiding flickering, eliminates excessive heat, and ensures longevity of the LED lights.
How do you use a 555 timer to flash a LED?
Connect pin 2 to the positive end of a capacitor. Connect the negative lead of the capacitor to the ground of the battery. Now short the pin 2 to pin 6 of the 555 timer IC. Connect the output pin 3 with the positive lead of the LED using a 1kΩ resistor.
How to create an LED flasher circuit?
To create an LED flasher circuit, the parts which we need to do so are: For this circuit, you can use a 9-volt battery as the power source or if you have a DC power supply, you can just adjust so that it gives out 9 volts.
How to control the time interval of LED flasher pulses?
The time interval of the pulses can be controlled by changing the value of resistors and capacitors used in the circuit. Following are the necessary hardware items required for LED Flasher Circuit:
What is the basic form of a flashing LED?
FIGURE 7. Basic form of a direct connection DC LED (a) and a flasher LED (b). Flashing LEDs take the basic form shown in Figure 7 (b) and have a built-in integrated circuit that gives the flashing effect. They are available in red, green, and yellow, have a typical flashing frequency of 2Hz, and can (typically) use 6V to 12V DC supplies.
How to build a blinking LED circuit?

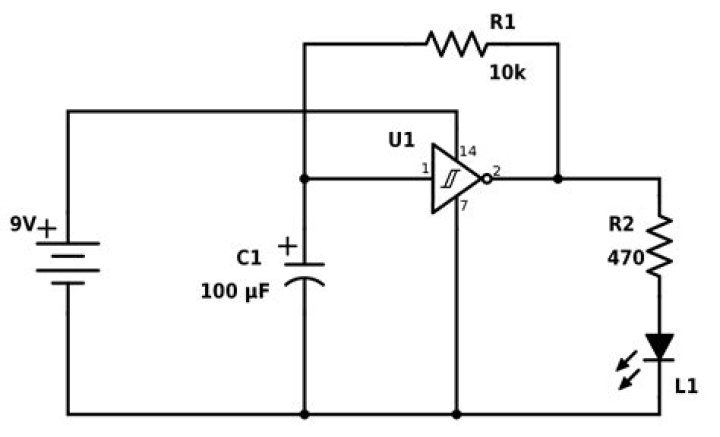

Three Different Ways To Build A Blinking LED Circuit. There are several ways of making a blinking LED circuit. You can make one using relays. You can make one using transistors. Or you can make one using components like an inverter, a 555 Timer or a microcontroller.
