The term ruling grade is usually used as a synonym for “steepest climb” between two points on a railroad. Hay says “The ruling grade may be defined as the maximum gradient over which a tonnage train can be hauled with one locomotive…. The ruling grade does not necessarily have the maximum gradient on the division.
How do you calculate ruling gradient?
Solution (i) Ruling gradient = 1 in 200 = 0.5% (ii) Compensation for a 2° curve = 0.04 × 2 = 0.08% (iii) Compensated gradient = 0.5 – 0.08 = 0.42% = 1 in 238 The steepest gradient on the curved track is 1 in 238.
What is ruling grade load?
The term “ruling grade” is used to describe the limiting grade between two terminals. It determines the maximum load that can be pulled over that portion of line by a given locomotive.
What are the different types of gradients?
Following 6 types of the gradient are described below:

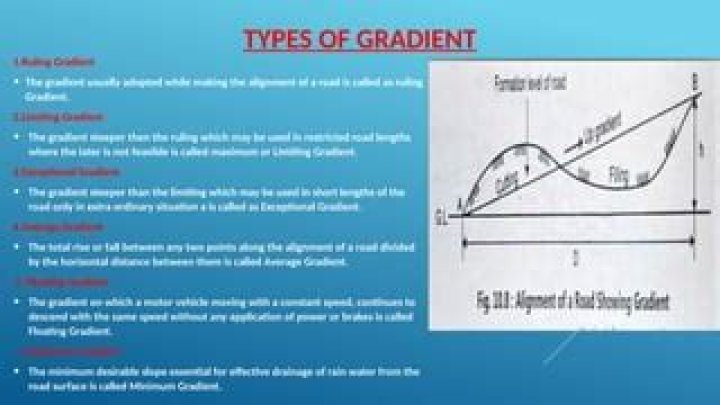

- Ruling gradient. The gradient usually adopted while making the road alignment is called the ruling gradient.
- Limiting gradient.
- Exceptional gradient.
- Minimum gradient.
- Average gradient.
- Floating gradient.
What is ruling gradient in highway?
The ruling gradient or the design gradient is the maximum gradient with which the designer attempts to design. the vertical profile of the road. This depends on the terrain, length of the grade, speed, pulling power of the. vehicle and the presence of the horizontal curve.
What is a 1 in 10 gradient?
If the units are measured in feet, 1 in 10 means that for every 10 feet you move forward, your height increases by 1 foot. This gives you the angle of the slope rather than the angle of inclination.
What is minimum gradient?
The gradient provided on flat or level road to drain off the rainwater is called minimum gradient. It should be sufficient to drain off the rainwater from the pavement surface. Its value depends upon the topography, type of soil, run-off and other sites conditions.
What is gradient necessity?
The gradient of any line or curve tells us the rate of change of one variable with respect to another. This is a vital concept in all mathematical sciences. Any system that changes will be described using rates of change that can be visualised as gradients of mathematical functions.
What is station yard gradient?
Answer: Station yard gradient is the minimum gradient provided in station yard for easy draining of rain water. In station yards, maximum limit of gradient is fixed as 1 in 400 and minimum gradient recommended is 1 in 1000 for easy drainage of rain water.
What are the three types of gradients?
In fact, there are three types of gradients: linear, radial, and conic.
What are the four types of gradients?
There are five major types of gradients: Linear, Radial, Angle, Reflected and Diamond.
How do you find the gradient on a highway?
Convert the rise and run to the same units and then divide the rise by the run. Multiply this number by 100 and you have the percentage slope. For instance, 3″ rise divided by 36″ run = . 083 x 100 = an 8.3% slope.
What is ruling gradient?
Ruling gradient The gradient usually adopted while making the road alignment is called the ruling gradient. It is the maximum gradient within which the designer attempts to design the vertical profile of a road. It is also known as design gradient.
What is the meaning of gradient?
Illustrated definition of Gradient: How steep a line is. In this example the gradient is 35 0.6 Also called slope. Have a play (drag…
What is gradgradient in math?
Gradient: Simple Definition and Examples. The term gradient has at least two meanings in calculus. It usually refers to either: The slope of a function. For example, this 2004 mathematics textbook states that “…straight lines have fixed gradients (or slopes)” (p.16).
How do you find the gradient vector?
When we introduced the gradient vector in the section on directional derivatives we gave the following fact. The gradient vector ∇f (x0,y0) ∇ f ( x 0, y 0) is orthogonal (or perpendicular) to the level curve f (x,y) = k f ( x, y) = k at the point (x0,y0) ( x 0, y 0).
