Mechanical galvanizing (ASTM B695) is a process in which fasteners are tumbled in a barrel with a mixture of water, zinc powder, other chemicals, and glass impact beads. As the parts are tumbled in the slurry, the zinc is “cold welded” to the fasteners.
What is mechanical zinc plating?
Mechanical zinc plating is accomplished by tumbling small parts in a drum with zinc and proprietary chemicals. During tumbling, the glass beads peen zinc powder onto the part. Once finished, the parts are dried and packaged, or post-treated with a passivation film, dried, and packaged.
What is the difference between hot dip galvanizing and zinc plating?
Hot-dip galvanizing is a process of applying a protective zinc coating by dipping product in bath of molten zinc. Zinc plating or electroplating is a process where zinc is applied by using a current of electricity. It is a thinner coating than hot-dip galvanizing making it unsuitable for outdoor applications.
Is zinc plated and galvanized the same?
Galvanisation is when a protective zinc coating is applied to steel or iron, to prevent rusting. This is when metal parts are fully submerged in a bath of molten zinc. Zinc plating (also known as electro-galvanising) is a process where zinc is applied by using a current of electricity.
How do you protect a thread when galvanizing?
Articles such as threaded bars may be protected by tightly wrapping a high temperature masking tape (typically silicone polyimide based) around relevant areas so as to prevent the ingress of molten zinc (see image below).
What is mechanical coating process?
Mechanical plating, also known as peen plating, mechanical deposition, or impact plating, is a plating process that imparts the coating by cold welding fine metal particles to a workpiece. The process involves tumbling the workpieces with a mixture of water, metal powder, media, and additives.
What is mechanical plating and cladding?
Mechanical plating refers to an industrial process that involves the application of a coating to a substrate material by cold welding small metal particles to it. It is a form of metal galvanization used to prevent corrosion and hydrogen embrittlement.
Can stainless steel be hot dipped galvanized?
Stainless steel experiences the most common liquid metal embrittlement problems associated with hot-dip galvanizing. Therefore, mounting stainless steel fittings to mild steel items prior to galvanizing should be avoided because the molten zinc may impact the mechanical properties of the stainless steel.
Is hot dipped better than galvanized?
Hot dip galvanizing provides much better corrosion resistance than electro galvanization because the zinc coating is typically 5 to 10 times thicker. For outdoor or caustic applications where corrosion-resistance is required, hot dip galvanized cable is the clear choice.
Is galvanised or zinc plated better?
Hot dip galvanising or zinc plating can be used on anything from small nuts and bolts to large beams for buildings. If it’s galvanised, it will be dull grey and a little rough. A zinc plated product will be shiny and smooth. A hot dip galvanised product has the best protection against rust, even though it’s a bit ugly.
What is better zinc or galvanized?
Both zinc plating and galvanizing is an application of zinc plating. The big difference is thickness: zinc plating is normally 0.2 mils thick. Hot dip galvanizing might be 1.0 mil thick – you get over 5 times the protection with galvanizing. After 20 years outdoors a galvanized product will not show signs of rust.
Which metal is used for galvanizing?
This is generally due to the nature of the alloy coating developed when chemically clean steel is immersed in molten zinc. In current use, galvanizing is typically referred to hot-dip galvanizing, which is a metallurgical process used to coat steel or iron with zinc.
What does galvanizing do for metal?
What Is Galvanizing? Galvanizing is the process of protecting a metal from corrosion using zinc. In the galvanization process, a zinc coating is added to the surface of the metal to prevent rusting. By reducing the corrosion of the metal on which the process is performed, galvanization increases the lifespan of the metal.

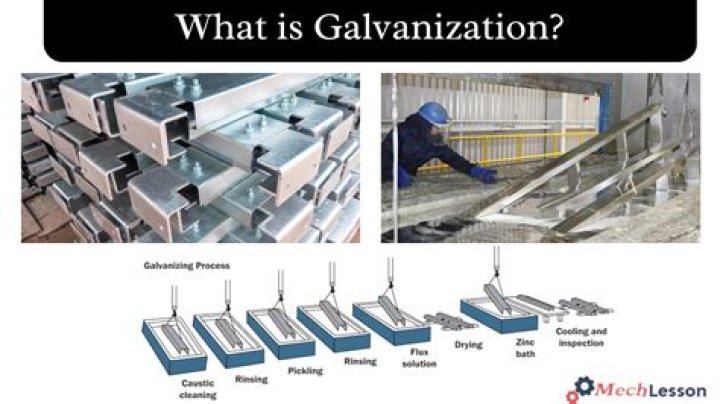

What is the process of galvanizing metal?
Surface Preparation The first and most crucial step is preparing the surface of the material for the coating process.
What is the galvanising process?
Surface Preparation. Before the galvanizing process begins,the surface of the metal must be prepared.
