Address decoding refers to the way a computer system decodes the addresses on the address bus to select memory locations in one or more memory or peripheral devices. In full address decoding, each addressable memory location corresponds to a unique address value on the address bus.
How is memory address decoding done?

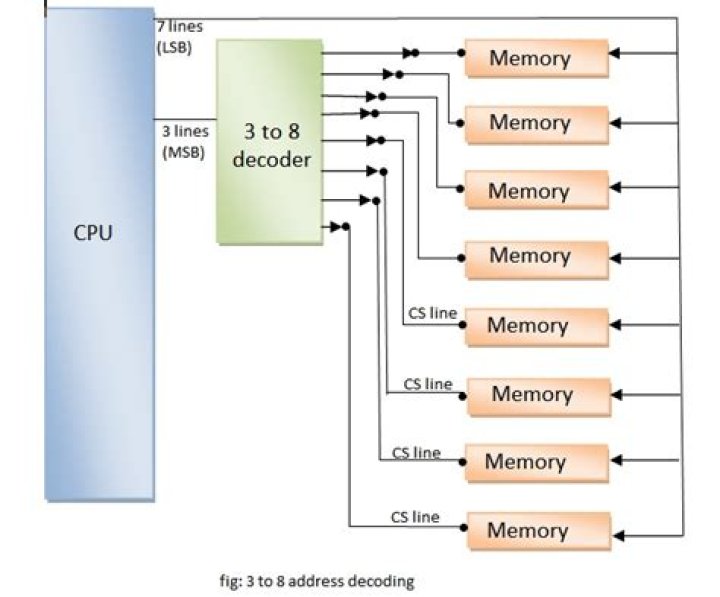

As can be seen from the data sheets of SRAM and ROM, the CS input of a memory chip is normally active low and is activated by the output of the memory decoder. Normally memories are divided into blocks, and the output of the decoder selects a given memory block.
What is the address decoder in microprocessor system?
In digital electronics, an address decoder is a binary decoder that has two or more inputs for address bits and one or more outputs for device selection signals. When the address for a particular device appears on the address inputs, the decoder asserts the selection output for that device.
Why are memory address decoding important?
In order to splice a memory device into the address space of the processor, decoding is necessary.
What is memory interfacing in 8085 microprocessor?
The Memory Interfacing in 8085 is used to access memory quite frequently to read instruction codes and data stored in memory. This read/write operations are monitored by control signals. The microprocessor activates these signals when it wants to read from and write into memory.
What is memory address in microcontroller?
The data RAM on a microcontroller is organized into several “registers”, each with its own unique “address”. This means that there are a total of 256 registers in the RAM, and those registers can hold 8 bits each. A register is just a location in memory that you can write data to or read data from.
What do you mean by memory decoding?
In addition to requiring storage components in a memory unit, there is a need for decoding circuits to select the memory word specified by the input address. The storage part of the cell is modeled by an SR latch with associated gate s to form a D latch.
What is data memory?
Data memory (RAM)serves for storing and keeping data required for the proper operation of the programs. The two data spaces are accessed by using two address generation units and separate data paths, i.e. two data can be read or written simultaneously.
How are decoders used in memory reads?
The row and column decoders are used to select a particular memory location in the array, based on the binary row and column addresses. In this arrangement, only one nMOS pass transistor is turned on at a time, depending on the column address bits applied to the decoder inputs.
What is memory microprocessor?
There are two basic kinds of memory used in microprocessor systems – commonly called Read Only Memory and Read / Write Memory, but more usually called ROM and RAM – “Read Only Memory” and “Random Access Memory”. Storing these in ROM means they always available, even when the computer has only just been switched on.
What is memory map in microprocessor?
The memory mapping is used to transfer the logical address space into physical memory but sometimes physical memory is a smaller size. The microprocessor can access external memory. The memory mapping used for increased access to physical memory.
What is data memory in microprocessor?
Data memory = where you place your variables. You can read and write values. Program memory = where the application is stored. Some chips allows parts of the program memory to be modified in blocks (segments), but you can’t store variables in the program memory.
How many memory locations can be interfaced with 8085?
8085 has 16 address lines (A0 – A15), hence a maximum of 64 KB (= 216 bytes) of memory locations can be interfaced with it. The memory address space of the 8085 takes values from 0000H to FFFFH. Ex: Interface a 6264 IC (8K x 8 RAM) with the 8085 using NAND gate decoder such that the starting address assigned to the chip is 4000H.
What is partial decoding in 8085 microprocessor?
Interfacing Memories with 8085. 1. Partial decoding: In this type of decoding not all the address lines are utilized in the circuit (they are left as unused pins). Ex: In an interface of 4kB memory only A0-A11 address lines are utilized, whereas the remaining A12-A15 address lines are unused.
How many address lines are there in 8085 microprocessor?
The 8085 microprocessor has 16 address lines. Therefore it can access 216 locations in the physical memory. If all these lines connected to a single memory device. Then it will decode these 16 address lines internally and produces 216 different addresses from 0000H to FFFFH.
What is y0 and Y2 output of 8085 decoder?
The Y0 output of the decoder is also 0, selecting RAM 1. · When 8085 places any address between 9000H and 97FFH in the address bus, the select inputs C, B and A of the decoder are 0, 1 and 0. The Y2 output of the decoder is also 0, selecting RAM 2.
