narrow beam geometry. When x or gamma rays travel through an attenuating environment there are processes to consider (broad and narrow beams) In the narrow beam approach the beam of radiation culminated results in a smaller amount being detected at the other end.
What is broad beam?
[′brȯd ‚bēm] (physics) In measurements of the attenuation of a beam of ionizing radiation, a beam in which much of the scattered radiation reaches the detector, along with the unscattered radiation.
How is HVL calculated in radiography?
It is related to linear attenuation coefficient (μ) with following formula: HVL = 0.693 / μ
What is HVL in radiography?
Therefore, determination of the half-value layer (HVL) is often used to describe the X-ray beam quality. The HVL of a beam is the thickness of material required to reduce the intensity of an X-ray or gamma-ray beam to one-half of its initial value (2,3).
What is HVL and filtration?
The HVL of an x-ray beam is the amount or thickness of absorbing material or filtration that must be placed in the beam to reduce the transmission of the beam by one half.
What is the HVL of aluminum?
PENETRATION VALUES
| Material | HVL (mm) | |
|---|---|---|
| 30 keV | 120 keV | |
| Tissue | 20.0 | 45.0 |
| Aluminum | 2.3 | 16.6 |
| Lead | 0.02 | 0.15 |
What is beam attenuation?
Attenuation is the reduction of the intensity of an x-ray beam as it traverses matter. The reduction may be caused by absorption or by deflection (scatter) of photons from the beam and can be affected by different factors such as beam energy and atomic number of the absorber.
Why is attenuation exponential?
The concept of exponential attenuation is relevant primarily to uncharged ionizing radiation (i.e., photons and neutrons), which lose their energy in relatively few large interactions, rather than charged particles which typically undergo many small collisions, losing their kinetic energy gradually.
What is HVL and TVL?
The half value layers (HVL) and tenth value layers (TVL) are defined as the thickness of a shield or an absorber that reduces the radiation level by a factor of one-half and one tenth of the initial level, respectively. The concepts of HVL and TVL are widely used in shielding design.
What is the relationship between kVp and HVL?
The measured kVp on photon physics or NERO system was always greater than the recorded kVp on the control panel. The HVL increased as the kVp increased for both 10 mA and 15 mA settings. However, above 80 kVp, the HVL increase was not significant.
How many HVL are included in TVL?
The TVL is the average amount of material needed to absorb 90% of all radiation, i.e., to reduce it to a tenth of the original intensity. 1 TVL is greater than or equal to log2(10) or approximately 3.32 HVLs, with equality achieved for a monoenergetic beam.
What does the V in HVL stand for?
From Wikipedia, the free encyclopedia. A material’s half-value layer (HVL), or half-value thickness, is the thickness of the material at which the intensity of radiation entering it is reduced by one half.
What is a “narrow beam”?

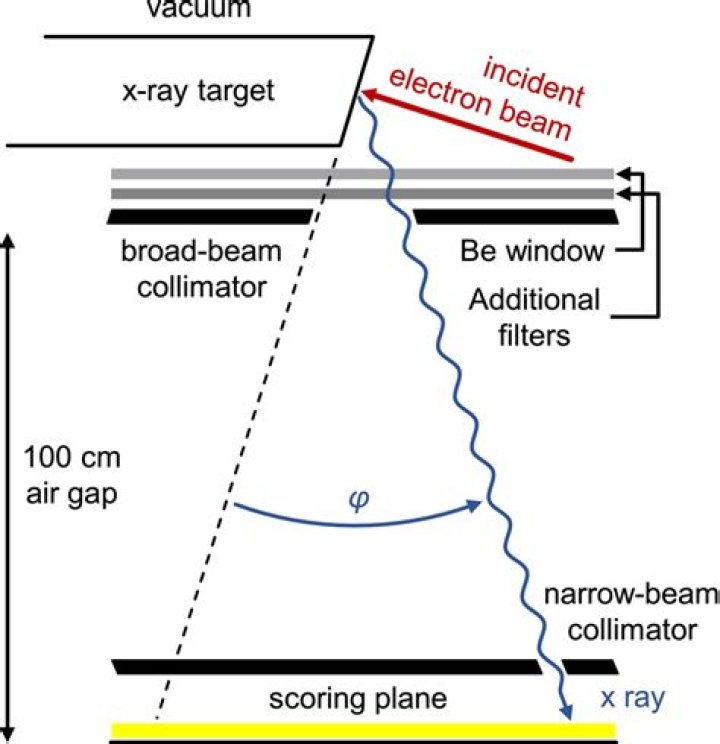

In a narrow beam set-up, the detector is placed some distance from the x-ray source – usually something like 1 m, and the x-ray beam is tightly collimated (or coned-in) to an area of only a few centimetres square in the plane of the detector (hence the name “narrow beam”).
What is broad beam attenuation?
In a broad beam set-up the x-ray beam is no longer tightly collimated, and the area of radiation impinging on the sample is quite large – typically 20 – 30 cm square. The detector is placed closely behind the material. This geometry is shown schematically in Figure 2 below. Fig2. – Broad beam attenuation measurement geometry
What is inverse broad beam geometry?
In the inverse broad beam geometry the x-ray beam remains tightly collimated, allowing the use of small reference lead filters, but the detector is placed closely behind the sample, and has a large area that intersects all of the transmitted x-ray beam. This geometry is shown below in Figure 3. Fig3.
Can beam hardening be applied to 99m Tc?
When discussing a polygenic emitter such as CT this concept can be more appreciated. However, if you are applying this to 99m Tc, this is a monogenic gamma ray therefore beam hardening becomes more difficult a concept to apply. Can the same be said for 67 Ga and 201 Tl?
