A mirrored volume is a fault-tolerant volume that duplicates your data on two or more physical disks. A mirror provides redundancy by simultaneously writing the same data onto two or more separate mirrors (or plexes) that reside on different disks.

Which disk type allows you to create mirrored volumes?

Dynamic disks provide features that basic disks do not, such as the ability to create volumes that span multiple disks (spanned and striped volumes) and the ability to create fault-tolerant volumes (mirrored and RAID-5 volumes).

How can you get a working mirrored volume back if you replace a disk?

To rebuild the mirror, shut down the system and replace the failed drive, and then restart the system using the secondary drive. In Disk Management, right-click the remaining volume in the mirrored set, and choose Break Mirrored Volume. Click Yes at the prompts to confirm the action.

How do I change a mirrored disk?

▌Method 1. Replace mirrored drive with Disk Management snap-in

  1. Remove mirror from mirrored drive (Disk 1).
  2. In the pop-up dialog box, select Disk 1 and click “Remove Mirror”.
  3. Add mirror to the larger drive (Disk 3).
  4. In the pop-up dialog box, select Disk 3 and click “Add Mirror”.

Can we create a mirror volume using only 1 disk?

Because data from one disk is mirrored to another, two disks must be used to implement RAID 1. When mirroring is used on Windows Server 2003, the first disk in the set must contain files to be mirrored.

Is RAID 1 the same as mirroring?

Disk mirroring, also known as RAID 1, is the replication of data to two or more disks. Disk mirroring is a good choice for applications that require high performance and high availability, such as transactional applications, email and operating systems.

How do you make a mirrored volume?

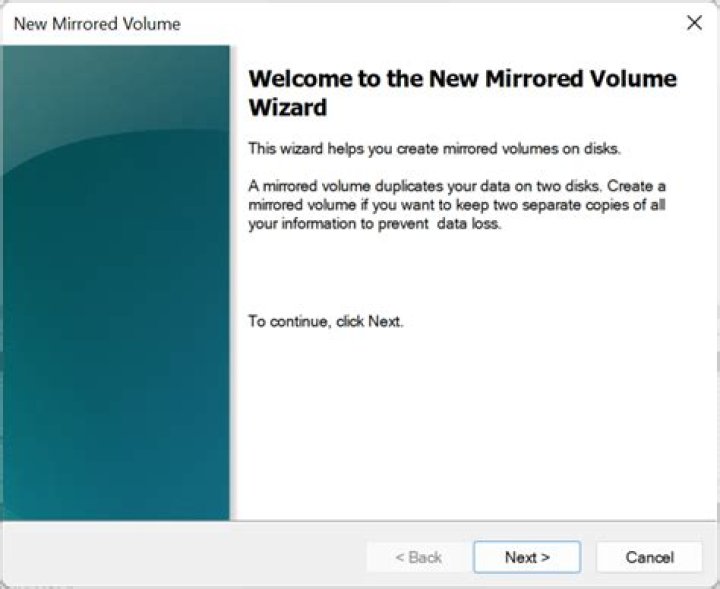

How to create a new mirrored volume

  1. Use the Windows key + X keyboard shortcut to open the Power User menu and select Disk Management.
  2. Right-click one of the empty drives, and select New Mirrored Volume.
  3. Click Next.
  4. Select the available drive from the left.
  5. Click Add.
  6. Specify the amount of space for the mirrored volume.

How do you break a mirror volume?

Breaking or Removing a Mirrored Set

  1. In Disk Management, right-click one of the volumes in the mirrored set, and then choose Break Mirrored Volume.
  2. Confirm that you want to break the mirrored set by clicking Yes. If the volume is currently in use, you’ll see another warning dialog box.

Why is New mirrored greyed out?

If you do not have a dynamic disk with enough unallocated space, the Add Mirror menu item is unavailable. (To verify you have enough space, right-click the disk, click Properties, and then check the size in Unallocated Space.

How does a mirrored volume function?

A mirrored volume is a hard drive or other form of storage media that stores an exact copy of the data from another volume. It is used for fault tolerance, which means mirrored volume serves as a backup device in case the primary device fails. Using a mirrored volume decreases the chance of losing data exponentially.

What is a benefit of disk mirroring compared to a single disk?

Mirroring is a high-availability function. It allows the system to continue when a single disk-unit failure has occurred. Data is protected from loss while the failure is being corrected unless the other disk unit in the mirrored pair also fails.

How to create mirrored volume in Windows 10?

How to Create Mirrored Volume Windows 10 Once you’re ready with the pre-requisites, follow the below steps to create a mirrored volume: Hit Windows Key + R on your keyboard to launch Run tool. Input diskmgmt.msc in here and hit Enter. In Disk Management tool window, right-click on the empty unallocated disk and select New Mirrored Volume. In the next window, select the disk from available ones and add it on the right. See More….

How to mirror my hard drive in Windows 10?

Hit Windows Key+R on your keyboard to launch Run tool

  • In Disk Management tool window, right-click on the empty unallocated disk and select
  • In the next window, select the disk from available ones and add it on the right
  • You can assign a drive letter of your choice in the next window or leave it be, with default settings

    • What is disc management in Windows 10?

    Windows 10 Disk Management is a built-in tool which can be used to create, delete, format, extend and shrink partitions, and initialize a new hard drive as MBR or GPT .

    Can I move Windows 10 on another hard disk?

    If you want to migrate Windows 10 to an equivalently-sized or larger hard drive than the original, the best method is to use Windows’ own system imaging tool. This will allow you to copy your original drive exactly to your new drive. It’s important to stress that this method only works if you’re using a drive of equivalent or larger size.
