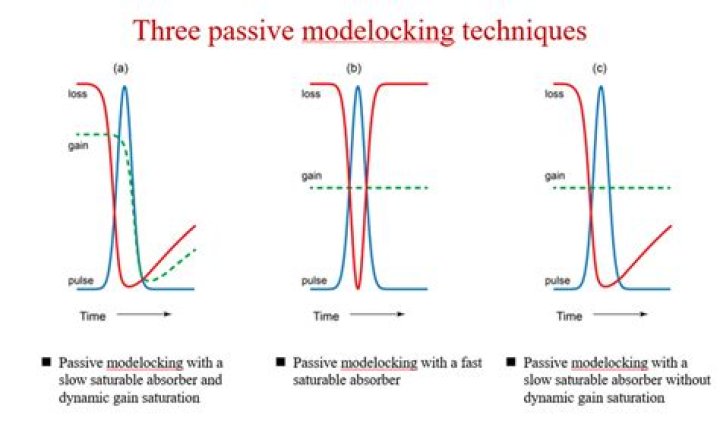

Passive mode-locking techniques are those that do not require a signal external to the laser (such as the driving signal of a modulator) to produce pulses. Rather, they use the light in the cavity to cause a change in some intracavity element, which will then itself produce a change in the intracavity light.
What is active and passive mode locking?
Passive Mode Locking In a passively mode-locked laser, the loss modulation is done by a saturable absorber, such as a SESAM. This mechanism allows us to generate shorter pulses than with active mode locking. The reason is that the shorter the circulating pulses become, the faster the loss modulation.
What is active mode locking?
Active mode locking involves the periodic modulation of the resonator losses or of the round-trip phase change, achieved e.g. with an acousto-optic or electro-optic modulator, a Mach–Zehnder integrated-optic modulator, or a semiconductor electroabsorption modulator.
How does a saturable absorber work?
A saturable absorber is an optical component with a certain absorption loss for light, which is reduced at high optical intensities. Such nonlinear absorption can occur, e.g., in a medium with absorbing dopant ions, when a strong optical intensity leads to depletion of the ground state of these ions.
What is mode in laser?
Laser modes are wavelike properties of the beam of light that evolve while the beam passes back and forth through the amplifier, bouncing between the mirrors.
What is mode-locked fiber laser?
A technique for raising the possible pulse energy and/or for lowering the pulse duration of a mode-locked fiber laser is used in stretched-pulse fiber lasers [5, 8, 9, 13, 19, 22], also sometimes called dispersion-managed fiber lasers.
What is phase locking laser?
Phase locking of an array of lasers is a highly effective way to combine coherently the output radiations from individual lasers to achieve beam shaping and a higher output power. Moreover, the interaction between array elements could lead to a significant reduction in the lasing threshold.
What is saturable drug absorption?
The drug then passes through the portal vein to the liver and then into the systemic circulation. If any of these processes becomes saturated, then increases in the administered dose will not correspond to increases in amount of drug absorbed into the body. This is called saturable drug absorption.
What is nonlinear saturable absorption?
What is the difference between active mode locking and passive mode locking?
Passive methods do not use an external signal, but rely on placing some element into the laser cavity which causes self-modulation of the light. The most common active mode-locking technique places a standing wave electro-optic modulator into the laser cavity.
What is the difference between active immunity and passive immunity?
Active immunity and passive immunity are two types of adaptive immunity. A prominent difference between active and passive immunity is that active immunity is developed due to the production of antibodies in one’s own body, while passive immunity is developed by antibodies that are produced outside and then introduced into the body.
What is the mode of acquirement of adaptive immunity?
On mode of acquirement adaptive immunity is classified into active immunity and passive immunity (Table 63.2). Differences between active and passive immunity are given in table 63.3. Active immunity is induced actively after contact with foreign antigens, e.g. microorganisms.
Why can’t multiple modes clean pulses in a passive cavity?
So multiple modes need to work out which phase to use. In a passive cavity with this locking applied there is no way to dump the entropy given by the original independent phases. This locking is better described as a coupling, leading to a complicated behavior and not clean pulses.
