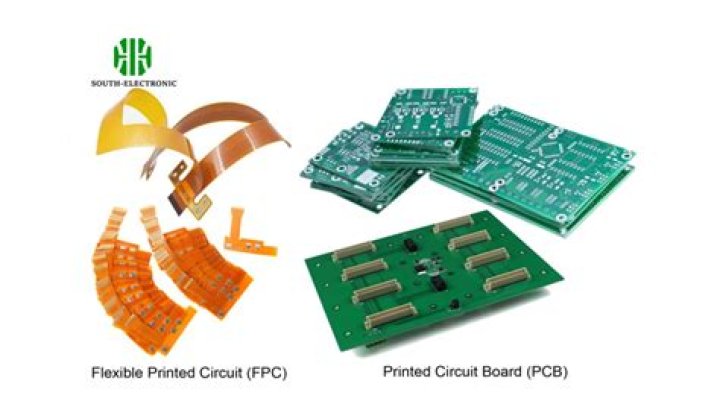

FPC (flexible printed circuits) is a PCB that has flexibility, also known as a flexible PCB, using insulating films as a material.
What is FPC material?
FPC stands for Flexible Printed Circuit, also known as flexible circuit boards or soft boards. It is a highly reliable flexible printed circuit made by polyimide or polyester film.
What is FPC in manufacturing?
Flexible printed circuit. Source: FPC is a thin insulating polymer film that conductive circuit patterns are printed on and typically it’s supplied with a thin polymer coating to protect the circuit.
How is FPC made?
FPC is made of polyimide material and etched copper conductors. Single-sided flexible circuits have a single conductor layer made of either a metal or conductive (metal filled) polymer on a flexible dielectric film. Double-sided flex circuits are flex circuits having two conductor layers.
How do you manufacture a flexible PCB?
When it comes to flexible substrate material, polyimide (PI) double-layer board covered with copper is applied as a flexible core and polyimide/acrylic film is used to protect flexible circuit pattern. Adhesion depends on Low-flow prepreg. All those elements are laminated so that flex-rigid PCBs are manufactured.
What are FPC connectors?
Flexible Printed Circuit (FPC) Connectors have been developed to meet the challenges of this expanding market, which demands smaller centerline or pitch spacing, lower profile heights, and lighter interconnect solutions. View video to explore FPC connectors’ capabilities.
What is the difference between FPC and FPC?
FFC refers to any type of electrical cable which is flexible and flat whilst an FPC is a flexible printed circuit.
What is FPC pitch?
Fine pitch flexible printed circuit (FPC) connectors are a great option for situations where small centerline spacing makes large wire-to-board interconnects impractical.
Which material is used in flexible PCB?
Leading conducting material of flexible PCB is copper or copper foil and sometimes alloy is also used including aluminum, nickel, gold and silver etc. Apart from conduction, conductor layer should be flexibility resistant.
What is rigid flex PCB?
Rigid-flex PCBs are a means to streamline the electronic design, by eliminating flexible cables, connectors and discrete wiring. The electrical performance of a rigid flex PCB is enhanced compared to its counterparts, because the circuits are integral to the overall construction.
What is the difference between FPC and FFC?
Production Difference Between FFC and FPC FPCs are manufactured by etching on the Flexible Copper Clad Laminate (FCCL) and then laminated into different layers. But, FFC entails a simple lamination of polyethylene terephthalate (PET) and copper wires that are flat.
What is the specific difference between PCB and FPC?
PCB is generally used in some places that do not need bending and have relatively hard strength, such as computer motherboard, mobile phone motherboard, etc. FPC, in fact, belongs to a kind of PCB, but it is quite different from the traditional printed circuit board. It is called flexible board, the full name is flexible printed circuit board.
Raw material. (1) Adhesive material and non-adhesive material: The copper on flexible PCB material is divided into electrolytic copper and rolling copper,and the material of non-adhesive rolling copper
What are the best PCB manufacturing companies?
Ray PCB. Also called RayMing Technology,Ray PCB is one of the PCB Assembly Companies that has continuously made tremendous contributions to the overall success of the PCB industry.
What are flexible printed circuits (FPC)?
Flexible printed circuits (FPC) are made with a photolithographic technology. Flex circuits are often used as connectors or interconnects in various applications where flexibility, space savings, or production constraints limit the serviceability of rigid circuit boards or hand wiring.
