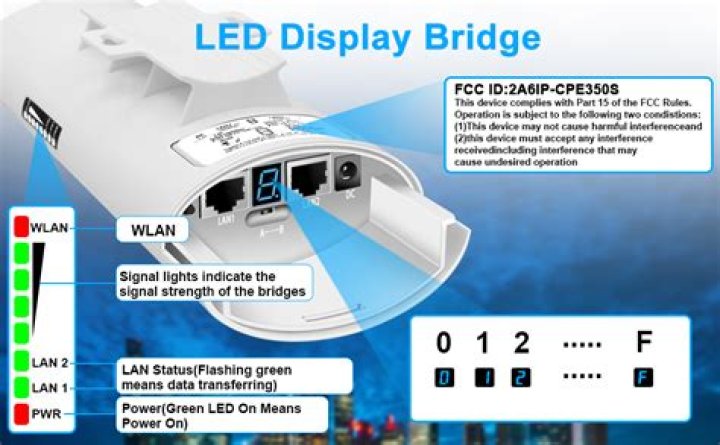

PTP Bridge CPE: When you need to transparently interconnect two remote locations together in the same network, set one device to this mode, and the other device to the previous (PTP Bridge AP) mode.
What is bridge all LAN ports?
A local area network bridge logically combines multiple interfaces to work as a single network, with a single interface name and IP address. A bridge operates in the same way as any other network interface. It is technically an untagged VLAN network that you assign to multiple interfaces.
What is AP bridge mode?
Definition: In Wi-Fi network, Bridge mode allows two or more wireless access points (APs) to communicate with each for the purpose of joining multiple LANs. Some wireless bridges support only a single point-to-point connection to another AP. Others support point-to-multipoint connections to several other APs.
What is MikroTik CAPsMAN?
MikroTik CAPsMAN (Controlled Access Point system Manager) is a centralized Access Point management application provided by MikroTik. If you have multiple MikroTik CAPs (Controlled Access Point) in your organization, CAPsMAN provides an easy way to maintain client data as well as CAPs configuration centrally.
What is bridge interface?
The bridge interface is a function that accommodates multiple interfaces in one virtual interface and bridges those interfaces. Each accommodated interface connected to a physical segment is handled as one segment.
What is bridge VLAN filtering?
Bridge and VLAN A bridge is a way to connect two Ethernet segments together in a protocol independent way. Packets are forwarded based on Ethernet address, rather than IP address (as a router would do). In this blog, we will show the new bridge feature, VLAN filter, which hopefully makes life easier.
What is the difference between CPE and AP?
An access point or Customer Premise Equipment (CPE) performs the function of connecting wireless users (and other wireless networks) to a wired router or wired WLAN controller. Access Point (AP) Mode: Allows wireless equipment such as a Smart Phone or Laptop to be connected to a wired network.
How do you set up a CPE?
How to Configure the Access Point Mode on the Pharos device?
- Go to Quick Setup-> Choose “Access Point” -> Click Next.
- The default IP Address of CPE is 192.168.
- Customize your wireless name (SSID) and password.
- Click: Finish, and wait for the settings to take effect, it takes about 1 minute.
What is the difference between an AP and an Ethernet bridge?
An access point connects to your home network with an Ethernet cable and creates a new sphere of wireless coverage, letting you add wireless devices to your home network. A bridge, in contrast, connects separate networks —your preexisting wireless home network to all of the devices connected to the bridge.
What is a bridge in a LAN?
A bridge is a class of network device that’s designed to connect networks at OSI Level 2, which is the data link layer of a local-area network (LAN). All broadcast messages are sent across an entire LAN, and even messages directed to a single station are actually sent to every port on many LANs.
How to setup MikroTik VLAN on Windows 10?
Go to MikroTik download section, download the latest WinBox Tool to your computer Then run the WinBox.exe Go to “Interfaces” select “VLAN” tab, add the following vlan 500 & 600, click “OK” when done Select “Ethernet” tab, select “ether5” and setup “Master Port” as none, click “OK” when done
How do I combine multiple networks into one bridge?
To combine a number of networks into one bridge, a bridge interface should be created (later, all the desired interfaces should be set up as its ports). One MAC address from slave (secondary) ports will be assigned to the bridge interface, the MAC address will be chosen automatically, depending on “port-number”, and it can change after a reboot.
What is the use of VLAN-filtering property in bridge?
Specifies allowed frame types on a bridge port. This property only has effect when vlan-filtering is set to yes. Enables multicast group and port learning to prevent multicast traffic from flooding all interfaces in a bridge. Selects the IGMP version in which IGMP general membership queries will be generated.
How do I assign a MAC address to the bridge interface?
One MAC address from slave (secondary) ports will be assigned to the bridge interface, the MAC address will be chosen automatically, depending on “port-number”, and it can change after a reboot. To avoid unwanted MAC address changes, it is recommended to disable “auto-mac”, and to manually specify MAC by using “admin-mac”.
