Definition: a measure of the damping of resonator modes. German: Gütefaktor. Category: optical resonators.
What is Q-factor in DWDM?
Q-factor is a parameter that measures the quality of DWDM systems. These systems are characterized by the transmitting reliability of a large volume of data with a low error rate.
What is Q value in DWDM?
WDM Network Design The Q-factor provides a qualitative description of the receiver performance because it is a function of the signal to noise ratio (optical). The Q-factor suggests the minimum SNR required to obtain a specific BER for a given signal.
How is OSNR measured?
So far, the main standard for OSNR was the IEC 61280-2-9. It describes a method to calculate the OSNR by measuring the noise level at the mid-point between channels, as shown in Figure 1, where P is the signal power, N is the noise power, and OSNR is equal to P / N, measured in a 0.1 nm bandwidth.
Why is Q factor important?
When dealing with RF tuned circuits, there are many reasons why Q factor is important. Bandwidth: With increasing Q factor or quality factor, so the bandwidth of the tuned circuit filter is reduced. As losses decrease so the tuned circuit becomes sharper as energy is stored better in the circuit.
What is the significance of Q factor?
The sharpness of resonance obtained in the LCR circuit is determined by the Q factor, or consistency factor. If the Q value is higher, the resonance will be very sharp; if it is lower, the resonance will be weak, resulting in a weaker circuit.
What is optical signal to noise ratio?
Optical signal to noise ratio (OSNR) is an important figure of merit used in fiber link planning. It is the ratio of signal power to noise power, over a specific spectral bandwidth, at any point in an optical link. Noise power can be defined as any undesirable signal interference.
What is the significance of Q-factor?
What is BER and Q-factor?
The Q-factor suggests the minimum SNR required to obtain a specific BER for a given signal. As we can see, the higher the value of Q-factor, the better the BER. Figure 4-4 shows the penalty of the Q-factor due to nonlinear effects by increase in input power.
What is OSNR out of band?
OSNR is conventionally obtained by measuring the total signal power in the channel passband and the amplified spontaneous emission (ASE) noise levels in the gaps between the optical channels. This is called the out- of-band OSNR.
Is a higher or lower Q factor better?
Higher Q indicates a lower rate of energy loss and the oscillations die out more slowly. A pendulum suspended from a high-quality bearing, oscillating in air, has a high Q, while a pendulum immersed in oil has a low one. Resonators with high quality factors have low damping, so that they ring or vibrate longer.
What is Q-factor in Telecom?

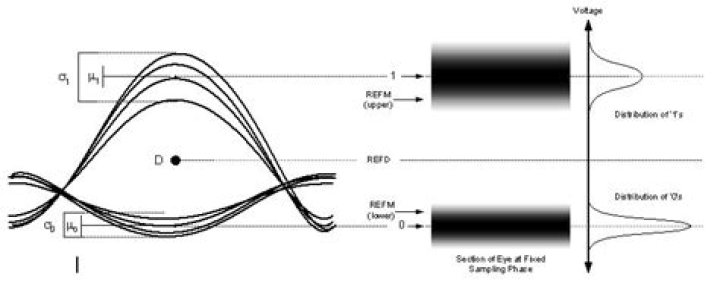

How “Q-factor” reflects the quality of a digital optical communications signal. Q-factor: How reflects the quality of a digital optical communications signal. Telecom friends always discuss or talk about the Q-factor but mostly not familiar with the concept of Q-factor. Today I will try to write about Q-factor in very simple way.
How Q-factor is important for the digital optical communications signal?
How Q-factor is important for the digital optical communications signal & what is role in digital optical communications signal. Propagation impairments caused by optical noise,non-linear effects,polarization effects and chromatic dispersion.Impairments for optical systems can be categorized into linear and non-linear effects.
How do you calculate the Q factor of an RF circuit?
When looking at the bandwidth of an RF resonant circuit this translates to the Q factor formula: Q = F 0 F 3dB. Q quality factor showing the centre and -3dB points. Within any RF or other circuit, each individual component can contribute to the Q or quality factor of the circuit network as a whole.
What is the Q factor of an oscillator and filter?
For filters sufficient selectivity is needed, but not too much, and for oscillators high levels of Q result in improved stability and lower phase noise. In many systems the Q factor should not be too high as it may result in filter bandwidths being too narrow and oscillators not being able to track over the required range.
