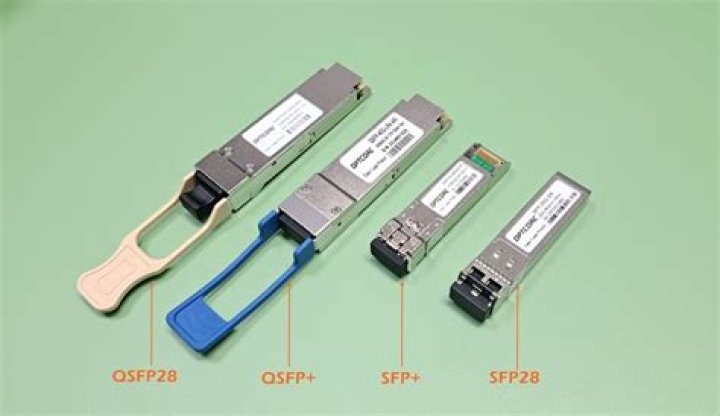

The Quad (4-channel) Small Form-factor Pluggable (often abbreviated as QSFP or QSFP+) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic cable.
What is QSFP 40G SR BD?
QSFP-40G-SR-BD transceiver, known as a type of QSFP 40-Gbps BiDi transceiver, is a standard QSFP+, MSA compliant optical transceiver. It is designed to work at the wavelength from 832 nm to 918 nm and has a duplex LC interface.
What are the QSFP cables used for?
QSFP cable assemblies are used in networking devices such as patch panels, switches, and host card adaptors (HCA) and compute devices such as servers. The host card adaptor is connected to a computer via a PCIe slot.
What is QSFP speed?
QSFP abbreviation stands for Quad Small Form Factor Pluggable. QSFP is available for use in both single-mode and multimode and can to support 4 independent channels that can individually transmit at up to 1.25 Gbps per channel for a total speed of above 4 Gbps.
Is QSFP an Ethernet?
QSFP connectors are still small and hot-pluggable, and they still support Ethernet and fiber optics.
What is 40G BiDi?
40G BiDi transceiver, known as QSFP+ bidirectional transceiver, operates over two different wavelengths to transmit and receive in both directions over one strand MMF by adopting WDM (wavelength division multiplexing) technology.
Is QSFP Compatible with SFP?
EDGE Optics QSFP to SFP Converter (QSFP-SFP-CONV ) enables smooth transfer from quad-lane port to single lane optical transceiver.
What speed is QSFP?
QSFP data rates get up to 1 Gbps per channel, allowing for 4X1 G cables and stackable networking designs that achieve better throughput. QSFP+ is the modern incarnation of QSFP. In most data centers, it has completely replaced its predecessor. QSFP+ can reach speeds of 10 Gbps per line.
How does a QSFP work?
The QSFP 100G PSM4 converts parallel electrical input signals into parallel optical signals by the Layser Array and then transmitted in parallel on the MTP/MPO single mode ribbon fiber. Upon reaching the receiving termination, the PIN array converts the parallel optical signals into parallel electrical signals.
What is SFP+ and QSFP?
SFP, SFP+ or QSFP are all types of transceivers used to connect a switch or other network device to copper or fibre cable. They are most commonly used to add fiber ports.
What is a BiDi optic?
BiDi transceiver, also known as the bidirectional transceiver, usually consists of two different wavelengths to achieve transmission in both directions on just one fiber (single-mode or multi-mode). Unlike general optical transceivers which have two ports, BiDi transceivers have only one port.
What is the Cisco QSFP 40-gbps bidirectional transceiver?
The Cisco QSFP 40-Gbps BiDirectional (BiDi) transceiver (Figure 1) is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using MultiMode Fiber (MMF).
What are the dimensions of a 40gbase QSFP connector module?
Cisco 40GBASE QSFP Modules Data Sheet. Maximum outer dimensions for the QSFP connector module are (H x W x D) 13.5 x 18.4 x 72.4 mm. Cisco QSFP connector module typically weigh 100 grams or less.
What is the difference between QSFP and 40GBASE-CR4 cables?
Cisco QSFP to QSFP copper direct-attach 40GBASE-CR4 cables (Figure 5) are suitable for very short distances and offer a flexible way to connect within racks and across adjacent racks. Active optical cables are much thinner and lighter than copper cables, which makes cabling easier.
What are the dimensions of a QSFP cable?
Dimensions Maximum outer dimensions for the QSFP connector module are (H x W x D) 13.5 x 18.4 x 72.4 mm. Cisco QSFP connector module typically weigh 100 grams or less. Table 8 provides the cable dimensions, bend radius, face place distance and jacket material and jacket color for the AOCs and DACs.
