Sprinkler System : Automatic Fire Detection, Alarm and Extinguishing System on Ship. The sprinkler head consists of a quartzoid bulb which bursts when the temperature increases beyond the limit and the water starts flowing from the sprinkler head. These quartzoid bulbs are color coded in red, yellow and green.
How many types of sprinkler bulbs are there?
All fire sprinklers are one of four types: pendent, upright, sidewall, or concealed.
What does a frangible bulb do in a sprinkler head?
A frangible bulb sprinkler has a liquid-filled glass bulb that holds the cap on the sprinkler orifice, preventing water flow. In case of a fire, as the temperature begins to rise, the liquid in the bulb expands.
What is the principle of shattering Quartzoid bulb in sprinkler head?
What is the principle of shattering quartzoid bulb in sprinkler head? Principle is ‘Boiling Liquid Expanding Vapor Explosion’ (BLEVE). It is an explosion caused by the rupture of a vessel containing a pressurized liquid above its boiling point.
What are the types of sprinkler systems?
Let’s discuss four types of sprinkler systems and their best uses.
- Wet Pipe Commercial Sprinkler System. Wet Pipe Systems include overhead piping filled with water under pressure.
- Dry Pipe Commercial Sprinkler System.
- Pre-Action Commercial Sprinkler System.
- Foam Water Commercial Sprinkler System.
How far can a sidewall sprinkler spray?
8.7. 5.1. 3
| Distance from Sidewall Sprinkler to Side of Obstruction (A) | Maximum Allowable Distance of Deflector Above Bottom of Obstruction (B) [in. (mm)] |
|---|---|
| 5 ft 6 in. (1.7 m) to less than 6 ft (1.8 m) | 3 (75) |
| 6 ft (1.8 m) to less than 6 ft 6 in. (2.0 m) | 4 (100) |
| 6 ft 6 in. (2.0 m) to less than 7 ft (2.1 m) | 6 (150) |
What is a Class 4 sprinkler system?
Class IV — This class includes Class I, II, or III products and packaging containing a significant amount of Group A plastics (5-15 percent by weight or 5-25 percent by volume) stored in ordinary corrugated cartons with or without Group A plastic packing, which may be stored with or without the use of pallets.
What are the different types of lawn sprinkler systems?
7 Types of Sprinklers
- Pop-up Sprinklers. They are sometimes called in-ground sprinklers and are a common type of sprinkler.
- Traveling Sprinklers.
- Rotary Sprinklers for Lawn or Garden.
- Oscillating Lawn Sprinkler.
- Stationary Lawn Sprinklers.
- Misting sprinklers.
- Sprinkler Hose.
What is the liquid in a glass bulb sprinkler head?
Glass bulbs filled with a glycerin-based liquid are the most common type of trigger. Here’s how they work: When a blaze ignites, the air directly above it heats rapidly. The hot air is pushed toward the ceiling, walls, or other spots where the sprinkler heads are located.
How do glass bulb sprinklers work?
Glass bulb sprinkler heads have a small glass reservoir that holds a heat-sensitive liquid. This glass bulb holds the pip cap in place. When the room temperature of the liquid reaches a certain level, the liquid expands causing the glass bulb to break, which allows the pip cap to fall away releasing water.
Which liquid is used in sprinkler bulb?
Fire sprinklers are triggered once they reach a certain temperature, which is detected with the help of a glass bulb. The bulb is filled with a glycerin-based liquid that expands and breaks the bulb once a specified temperature is reached.
What are the 3 types of conventional sprinkler systems?
What Are the Main Types of Sprinkler Systems?
- Wet Pipe System. Wet pipe sprinkler systems—or traditional fire sprinklers—are the most common across residential and commercial buildings.
- Dry Pipe System.
- Pre-Action System.
- Deluge System.
- Installing a Sprinkler System.
What is a quartzoid bulb detector?

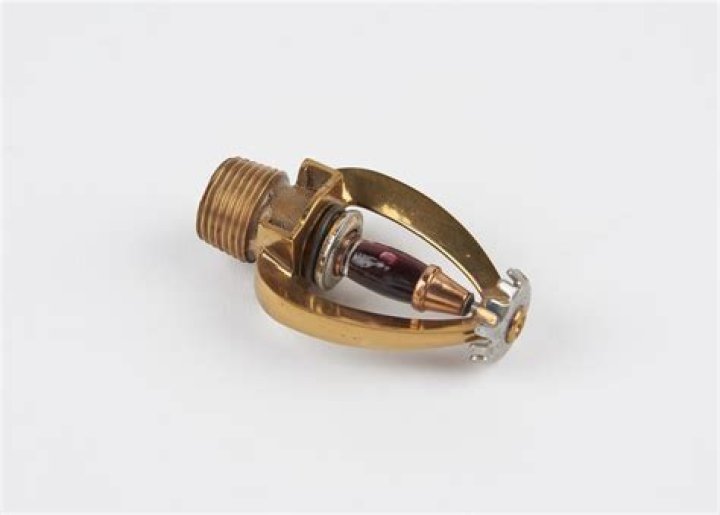

Quartzoid Bulb Detector The above figure shows a quartzoid bulb detector or sprinkler (QBD). In this type the sprinkler incorporates a quartzoid bulb filled with a highly expansive coloured liquid having different expansion rates. Different QBD have different temperature ratings.
How does a QBD sprinkler work?
The valve plug falls out and a jet of water exits , striking the spray generator where it is then distributed evenly over the surrounding area. In acting this way only the area of the fire is deluged and damage is minimized Apart from the QBD we have another sprinkler we use generally called soldered type sprinkler.
What is a frangible sprinkler?
1.Frangible type (e.g. Quartzoid bulb sprinkler) The small bulb, usually of pyrex glass, contains a liquid which does not completely fill the bulb, leaving a small air bubble entrapped in it. As the liquid is expanded by heat, the bubble is compressed and finally absorbed by the liquid.
What is the bulb on a sprinkler head?
Each sprinkler head has a quartzoid bulb which retains a diaphragm seal in the outlet of the water pipe.
