Unlike many bus-like configurations, which use signal name, the serial communication traditionally uses function name for pins. So, if the device transmits on some pin, it is marked Tx. If it receives, it is marked Rx.
Does RS232 need a ground?
RS232 Serial Port. Voltage levels with respect to ground represent the RS 232 signals. Due to the way the signals are connected, a common ground is required.
What is Tx and Rx in communication?
TX and RX are abbreviations for Transmit and Receive, respectively. Note that these metrics are referenced to the server being monitored; Transmit FROM this server, and Receive TO this server. Units are in Bytes (not bits)
What is a RS232 connector?
(Serail port) RS-232 is the name of an interface for the interchange of serial binary data between two devices. RS-232 was commonly used in computers to connect devices like a printer or a telephone modem. In computer terminology the RS-232 connector is often referred to as the “serial port”.
What does 232 in RS232 stand for?
It signifies nothing; it’s part of a sequential list of EIA standards: –
What is RS232 in microcontroller?
What is RS232? The RS-232(X) is a serial communication protocol, commonly used for transferring and receiving the serial data between two devices. It supports both synchronous and asynchronous data transmissions. Many devices in the industrial environment are still using RS-232 communication cable.
Is RS-232 a protocol?
RS232 is a standard protocol used for serial communication, it is used for connecting computer and its peripheral devices to allow serial data exchange between them. As EIA defines, the RS232 is used for connecting Data Transmission Equipment (DTE) and Data Communication Equipment (DCE).
How many wires does RS-232 use?

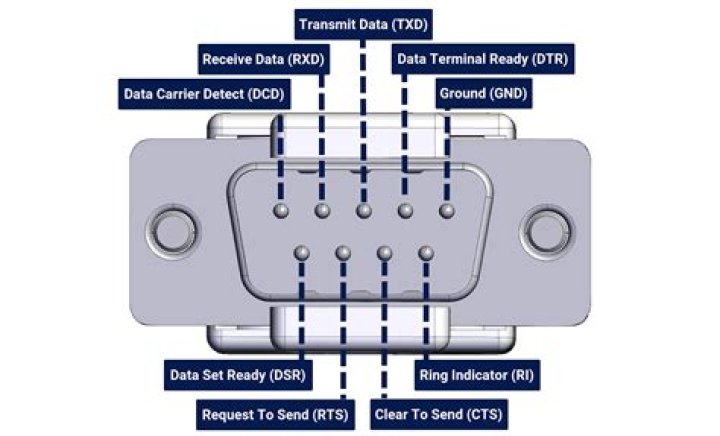

The RS-232 Standard Although RS-232 does not specify connector configurations, two have become de facto standards: DB25 (a 25-pin connector, in which usually no more than 10 wires are used), and DB-9 (a 9-pin connector, in which usually all 9 wires are used).
What is Tx and Rx in WIFI?
Tx/Rx rate – displays the transmit/receive data rates (in Mbps). Tx data – displays the amount of transmitted data. Rx data – displays the amount of received data.
What is Tx and Rx in router?
RX means received and TX means transmitted, however remember these directions are based on the interface they are being read from. For example, an upload from your computer is transmitted traffic (TX), but looking from your router that traffic has just arrived on an interface so it is measured as received traffic (RX).
What does the lower waveform of the RS232 TX pin show?
In the diagram above the lower waveform shows the RS232 voltage signal that you can expect to see at the output of the RS232 TX pin (also the same levels on the RX pin) on an oscilloscope.
What is the voltage of RS232 to TTL?
RS232-to-TTL adapter. This device has a DB-9 RS-232 port on one side, and pins on the other that represent the common signals of Transmit (TX), Receive (RX), Ground (GND) and voltage. Voltage is usually 5v or 3.3v depending on the device and what it will connect to.
What is RS232 and how does it work?
More formally RS232 is an asynchronous communication protocol that lets you transfer data between electronic devices. Basically it can transfer a single byte of data over a serial cable having between 3 to 22 signals and running at speeds from 100 to 20k baud.
What is the voltage of a DB-9 RS-232 port?
This device has a DB-9 RS-232 port on one side, and pins on the other that represent the common signals of Transmit (TX), Receive (RX), Ground (GND) and voltage. Voltage is usually 5v or 3.3v depending on the device and what it will connect to. (An Arduino UNO has 5v I/O pins. A Raspberry Pi and some other models of Arduino use 3.3v pins.)
