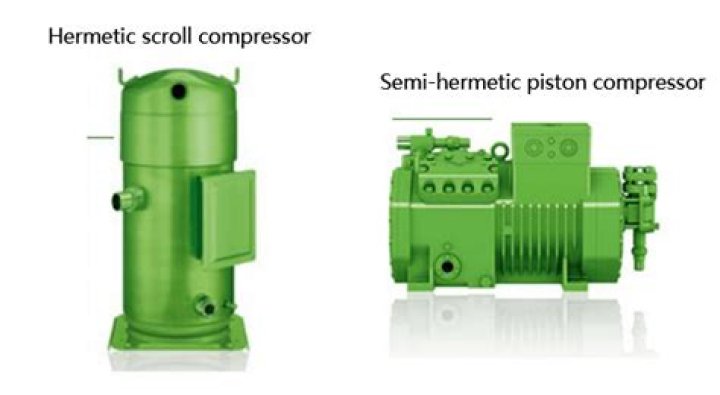

Semi-hermetic compressors use a cast iron casing for the essential parts. The motor and compressor are still housed together, but they can be accessed as needed. This enables maintenance checks and repair or replacement of parts as they degrade rather than a total failure of the system.
What is the difference between a hermetic compressor and semi?
In hermetic compressors, lubrication occurs by centrifugal force, which causes the oil to circulate. While semi-hermetic compressors have an oil pump, having what is called a forced lubrication.
How does a semi-hermetic compressor work?
Semi-hermetic compressors raise gas pressure and transport the gas through a piping system for system distribution needs. Gas rushes through a suction valve inlet and into the low pressure area. During the piston upstroke, the suction valve closes, which forces the exhaust valve to open due to increasing pressure.
What are two benefits of a semi-hermetic compressor?
The advantages are that the compressor components are easily accessible for maintenance and the costs of a shell can be avoided. In a semi-hermetic compressor, the motor and the compressor housing are located in a two-piece shell. The covers are bolted together, allowing the cover to be opened for servicing, etc.
Do hermetic compressors require a crankshaft seal?
Hermetic Compressor This type of compressor eliminates the use of Crankshaft Seal, which is used to prevent leakage. This makes whole the compressor and motor as a single compact unit makes it easy to handle.
Which are disadvantages of hermetic compressors?
Disadvantages. They are not intended to repairing since the moving parts are inaccessible if there is any problem you need to do you replace the whole unit. Burnout winding can contaminate entire system. Only electric power sources can run this unit.
Why is it called hermetic compressor?
Hermetic compressor: A hermetic or sealed compressor is one in which both compressor and motor are confined in a single outer welded steel shell. Hermetic compressors are ideal for small refrigeration systems, where continuous maintenance (replenishing refrigerant and oil charge etc) cannot be ensured.
What are the advantages of hermetic sealed compressor?
Advantages of the Hermetically Sealed Compressors The hermetically compressors can be moved easily from one place to the other place, they are highly portable. One does not have to disassemble the compressor from the motor and no coupling, belt and pulley arrangement is involved.
What is the most efficient compressor type?
A two-stage double-acting reciprocating compressor is the most energy-efficient air compressor.
What are the characteristics of the condensers used on Copeland units?
The condensers are constructed with copper tubes and aluminium fins, steel-sheet housing with a fan opening.Here are the main characteristics of the condensers used on DWM Copeland condensing units since 1994: 75, 120, 270 and 610 are “old” fans replaced with 71, 121, 271 and 611 in November 2002. The condenser W99 is twice the condenser W9.
How do I measure the insulation resistance of a Copeland motor?
DWM Copeland motors have an insulation resistance of over 10 Megaohm during production and thus greatly supersede 2 Megaohm for new machines as required in accordance with VDE 0700 Part 1. If the insulation condition of the compressor motor is to be tested, use 500VDC voltage to measure insulation resistance.
What is the insulation material of the motor windings of the compressor?
As they are subject to various loads in the application area of the compressor and come into contact with refrigerant and refrigerant machine oil, high grade and highly resistant insulation materials have been used. The insulation material of the compressor motor windings is in accordance with heat resistances grade “B” to VDE 0530.
