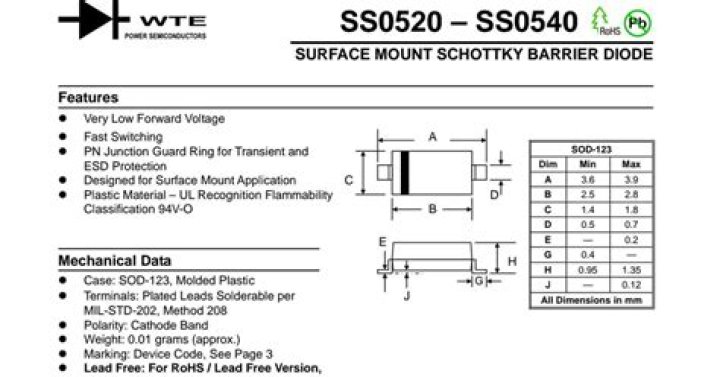

SOD-123 Diode In addition to the package outline the mounting pads for the printed wiring board are also given, and which are normally omitted on the data sheet. The SOD-123 package is a Surface Mount Device [SMD]. The two terminal package has leads shaped in the gull-wing configuration.
What is SOD and SOT?
As nouns the difference between sot and sod is that sot is soot while sod is sodium.
What is sod package?
Small Outline Diode (SOD) is a designation for a group of semiconductor packages for surface mounted diodes.
What is sod component?
Small Outline Diode (SOD) is a designation for a group of semiconductor packages for surface mounted diodes. The standard includes multiple variants such as SOD-123, SOD-323, SOD-523 and SOD-923.
Do 214AC vs do 214AA?
DO-214AA, also known as SMB, is the middle size. DO-214AB, also known as SMC, is the largest size. DO-214AC, also known as SMA, is the smallest size.
What is the difference between SMB and SMC?
SMB connectors feature quick connect/disconnect snap-on mating and operate to 4 GHz with low reflection. SMC connectors have #10-32UNF-threaded screw-on couplings and operate reliably to 10 GHz.
What is SMA and SMB?
Product Description. SMA plugs are enviromentally sealed; Intermateable with all SMA connectors; Up to 18 GHz; threaded coupling method; SMB connectors have a snap on coupling, operate up to 4 GHz; SMC connectors have a threaded coupling, operate up to 10 GHz.
What is the difference between SMA and SMB?
SMB connectors are smaller than SMA connectors. They feature a snap-on coupling and are available in either 50 Ω or 75 Ω impedance. They offer excellent electrical performance from DC to 4 GHz. An SMB jack has a male center pin, while an SMB plug has a female basket.
Is SMA the same as F?
It is visually similar to an F type connector that is commonly used for audio/video communication, but has different dimensions, mechanical properties and is used for different applications such as RF communications up to 18 GHz. …
