What is standard keyway size?

Standard Keyway & Setscrew Sizes

How do I know what size my keyway is?

The hub keyway is dimensioned by its width and depth on the shaft – keyway sides. Referencing Figure 1, the keyway dimension is W x T1. Unless otherwise specified, the shaft keyway is assumed to be standard.

How deep is a keyway?

Metric (ISO/R773)

What is standard shaft diameter?

around 0.600″
For standard size shafts for adult players, this will usually be around 0.600″, (or larger if it’s a bubble shaft). The butt diameter is important to note because you’ll want to match that measurement as closely as possible with the core size of the golf grip.

What is nominal shaft diameter?

Request Custom or. Steel shafts are round, precision ground bars used to transmit power in machines. Nominal shaft diameters reflect standardized dimensions and tolerances. The steel shafts are made to a negative tolerance to ensure they fit with plus tolerance holes of the same nominal diameter.

What is the ratio of keyway taper?

Standard inch-sized tapered pins have a taper on diameter of 1:48[1] while metric ones have a taper of 1:50.

How long should a shaft key be?

The key and key seat cross section are ISO standardized. The key length should be less than about 1.5 times the shaft diameter to ensure a good load distribution over the entire key length when the shaft becomes twisted when loaded in torsion.

What is a shaft key?

Metric Shaft Keys are rectangular or square shaped keyways that are used to lock rotating elements onto a shaft. Shaft Keys fit into slots cut into a shaft and a component such as a pulley or sprocket creating an assembly that rotates as one unit.

How much torque can a keyway handle?

The limiting pressure point of a keyed shaft is the keyway side of the male shaft, provided the proper key material is selected. Thus, 270 Nm is the maximum torque that can be transmitted before the 19 mm diameter keyed shaft plastically deforms.

Which material is suitable for shaft material?

The material used for ordinary shafts is carbon steel of grades 40 C 8, 45 C 8, 50 C 4 and 50 C 12. Shafts are generally manufactured by hot rolling and finished to size by cold drawing or turning and grinding.

What is the shaft size?

The shaft diameter is defined as the diameter of the hole in the iron laminations that contains the shaft, as indicated with the red arrow in Fig. 1 (and not as the actual diameter of the mechanical shaft, which can be much smaller).

What are the standard keyway and key size dimensions?

Keyway and Key Size Dimensions * Common dimension specification English Standard Keyway and Key Sizes Shaft Diameter (in) Keyway (in)* Key (in) From To Width (W) Depth (T 1) Width (W) Depth (T) 5/16 7/16 3/32 3/64 3/32 3/32 1/2 9/16 1/8 1/16 1/8 1/8 5/8 7/8 3/16 3/32 3/16 3/16 15/16 1-1/4 1/4 1/8 1/4 1/4 1-5/16 1-3/8 5/16 5/32 5/16 5/16

What are metmetric key & keyway dimensions per iso/r773?

Metric Key & Keyway Dimensions Per ISO/R773 – D10 Width Tolerance Shaft Diameter Key Size Keyway Width Keyway Depth Keyway Radius “D” Nominal Hub “W” Hub “T” “R” Over Thru Width “W” Height “H” Min 6 8 2 2 +.020 8 10 3 3 +.020

How do you dimension a hub keyway?

In the English system, it is standard practice to dimension keyways. The hub keyway is dimensioned by its width and depth on the shaft – keyway sides. Referencing Figure 1, the keyway dimension is W x T1.

What is the difference between a keyseat and a keyway?

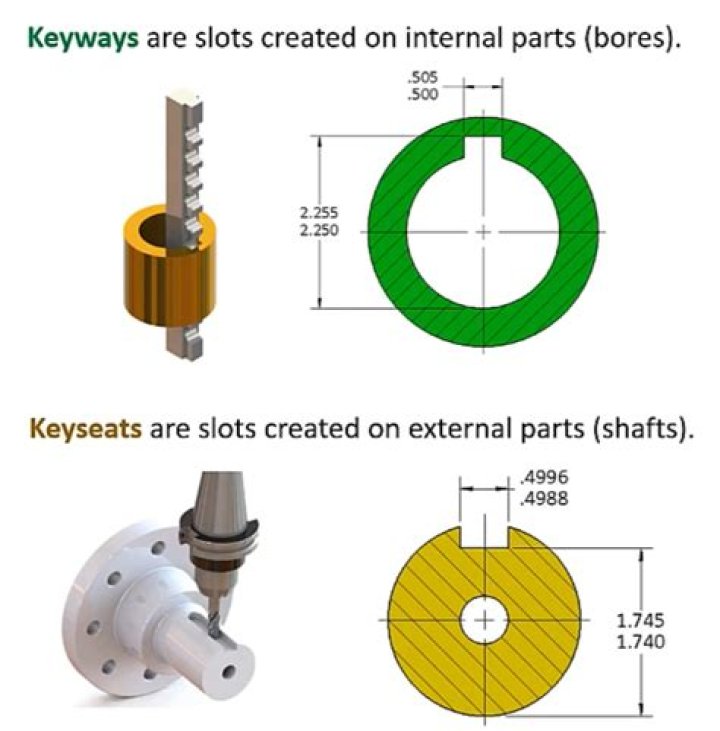

Keyseat: An axially located rectangular groove in a shaft, hub, or bushing. This may also be referred to as shaft keyseat or hub keyseat or bushing keyseat when describing an exact application. The hub or bushing keyseat can be referred to as a keyway. Keyway: The hub or bushing keyseat. Keys and Keyways: The Basics
