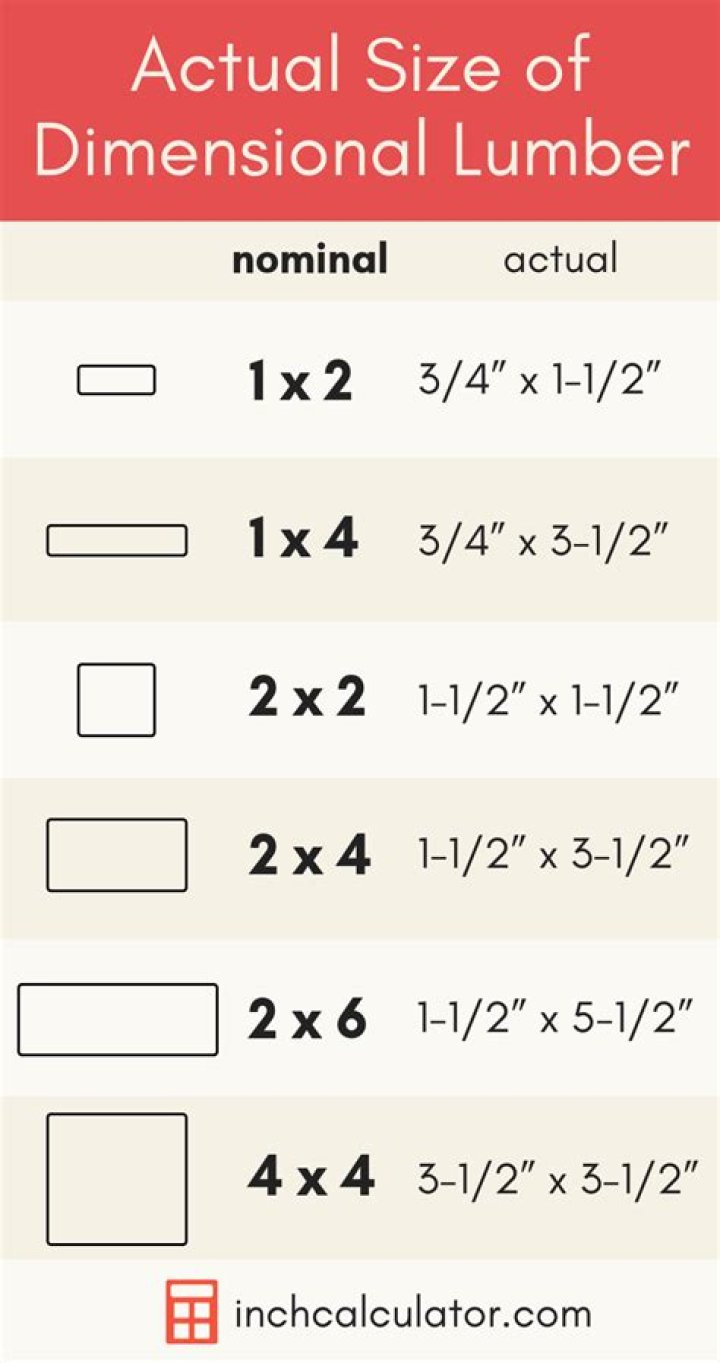

Nominal vs. Actual Measurements of Dimension Lumber
| Nominal Size | Actual Size |
|---|---|
| 1 x 2 | 3/4 x 1 1/2 inches (19 x 38 mm) |
| 1 x 3 | 3/4 x 2 1/2 inches (19 x 64 mm) |
| 1 x 4 | 3/4 x 3 1/2 inches (19 x 89 mm) |
| 1 x 5 | 3/4 x 4 1/2 inches (19 x 114 mm) |
What are the dimensions of a 1 by 1?
1x Board Sizes lose 3/4 inch in width. That means a 1×10 is actually 3/4 inch in thickness by 9 1/4 inches.
Why is a 2×4 not a 2×4?
DIMENSIONAL LUMBER: In the past, when a timber was called a 2×4 [or “two-by-four”], it actually measured 2 inches by 4 inches. Because of this extra milling, a 2×4 no longer measures a full 2 inches by four inches. Instead, a 2×4 is really only 1 1/2″ by 3 1/2″. The same is true of pine.
What are standard wood plank sizes?
In the United States, planks can be any length and are generally a minimum of 2 in (51 mm) deep by 8 in (200 mm) wide, but planks that are 2 in (51 mm) by 10 in (250 mm) and 2 in (51 mm) by 12 in (300 mm) are more commonly stocked by lumber retailers.
When did 2x4s become 1.5 x3?
This pressured further compromise because thinner 2x4s were a way to compete in price with wood alternatives. Size standards, maximum moisture content, and nomenclature were agreed upon only as recently as 1964. The nominal 2×4 thus became the actual 1½ x 3½, imperceptibly, a fraction of an inch at a time.
What is 2×4 UK?
I know from reading around that size wise this would roughly equate to the UK’s 44 x 96 and 25 x 44. One weird thing about dimensional lumber is that the size (ex. 2×4) is nominal, meaning that it’s only the approximate size. For example, a 2×4 is actually 1.5″ x 3.5″ (38mm x 89mm) in cross-section.
What is the actual thickness of 1 inch hardwood?
Hardwood Lumber Dimensions
| Nominal Size | Rough Size | Actual Size: Surfaced 2 Sides |
|---|---|---|
| – | 5/8 inch | 7/16 inch (11 mm) |
| – | 3/4 inch | 9/16 inch (14 mm) |
| 4/4 inch | 1 inch | 13/16 inch (21 mm) |
| 5/4 inch | 1 1/4 inch | 1 1/16 inch (27 mm) |
Why is lumber not the actual size?
The “nominal” cross-section dimensions of a piece of lumber, such as 2 X 4 or 1 X 6, are always somewhat larger than the actual, or dressed, dimensions. The reason is that dressed lumber has been surfaced or planed smooth on four sides (called S4S). The nominal measurement is made before the lumber is surfaced.
When did they stop making true 2×4?
Why is lumber smaller than the size it says?
Typically, that rough cut is smaller than the nominal dimensions because modern technology makes it possible to use the logs more efficiently. For example, a “2×4” board historically started out as a green, rough board actually 2 by 4 inches (51 mm × 102 mm).
What is #2 lumber?
2 Lumber. No. 2 lumber is the most common grade for framing. Lumber of this grade contains few defects, but knots are allowed of any quality as long as they are well spaced and do not exceed the size regulations.
What is the real size of a 2×4?
The true measurement of a 2×4 is actually about 1.5×3. 5. When the board is first rough sawn from the log, it is a true 2×4, but the drying process and planning of the board reduce it to the finished 1.5×3. 5 size.
What are the dimensions of a staircase?
Staircase Dimensions 1 Treads and Risers. The tread size (min 10ins / 25.4cm) is dictated by the average adult foot size, although it is not necessary to be able to fit your entire 2 Tread Nose. The nose makes the tread more comfortable to climb in socked feet or bear feet. 3 Ceiling Height. 4 More staircase design for you…
What size are stair treads and risers?
Treads and Risers The tread size (min 10ins / 25.4cm) is dictated by the average adult foot size, although it is not necessary to be able to fit your entire foot on a tread in order for walking up the stairs to be both comfortable and safe. The riser height (max 7¾ins / 19.7cm) is limited by the way in which we come down the stairs.
What is the difference between 2×10 and 2×12 wood?
Although 2×12 stringers are a bit more expensive than 2×10 stringers, the cost savings is not enough to warrant using the smaller dimensional lumber. Use 2x12s for your stair stringers unless doing so creates a problem with the clearance in the space beneath the stairs.
What is the maximum tread width for a stair stringer?
For a 2×10 stringer, the maximum tread width you can achieve with a 7-inch rise and still maintain a 3.5-inch throat is about 10 inches if you use the maximum stair tread nose allowed by the building code of 1.25 inches (the stringer itself would have a run of about 9 inches).
