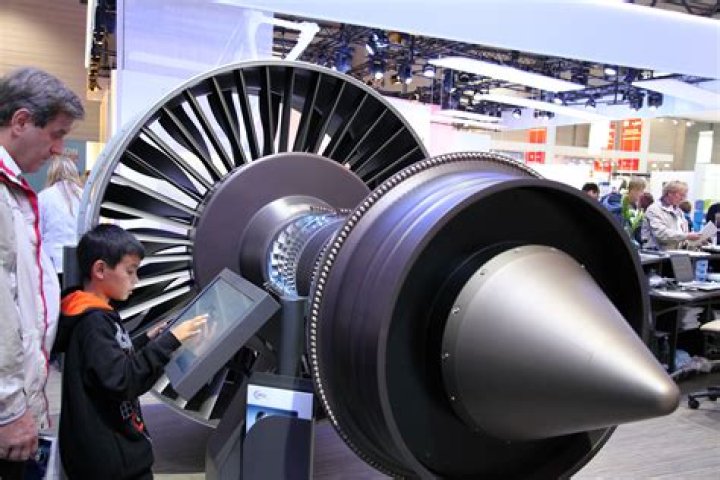

In a geared turbofan, a planetary reduction gearbox between the fan and the LP shaft allows the latter to run at a higher rotational speed thus enabling fewer stages to be used in both the LP turbine and the LP compressor, increasing efficiency and reducing weight.
Who makes turbofan geared?
Pratt & Whitney
Pratt & Whitney PW1000G
| PW1000G | |
|---|---|
| Type | Geared turbofan |
| National origin | United States |
| Manufacturer | Pratt & Whitney |
| First run | November 2007 |
What is geared turbine?
Geared turbines are used for small-scale power plants of up to approximately 40 MW. A speed reduction gear is installed between the generator and turbine, allowing the turbine to be designed smaller while operating at high speeds.
Does a jet engine have gears?
Aircraft engines don’t have or need multiple gears because the engine doesn’t move the aircraft from standstill by applying torque to wheels. Instead an aircraft engine can run at full RPM while the aircraft is stationary at the start of a runway.
How does the GTF engine work?
The GTF fan spins at about one-third the speed of the shaft that spins the low-pressure compressor and low-pressure turbine blades in the engine, or 3,200 revolutions per minute versus 9,000 RPM.
Where are P&W engines made?
Pratt & Whitney Canada (PWC or P&WC) is a Canada-based aircraft engine manufacturer. PWC’s headquarters are in Longueuil, Quebec, just outside Montreal. It is a division of the larger US-based Pratt & Whitney (P&W), itself a business unit of Raytheon Technologies Corporation.
Is the GE9X a geared turbofan?
The General Electric GE9X is a high-bypass turbofan developed by GE Aviation exclusively for the Boeing 777X. It first ran on the ground in April 2016 and first flew on March 13, 2018; it powered the 777-9’s maiden flight in early 2020….General Electric GE9X.
| GE9X | |
|---|---|
| Developed from | General Electric GE90 |
How does a GTF work?
They feature a Fan Drive Gear System which uncouples the fan from the low-pressure compressor as well as the low-pressure turbine, which drives the fan. This allows the fan to rotate at a lower speed and the low-pressure compressor and turbine much faster.
Why gearbox is used in steam turbine?
Our high speed gearboxes are installed between steam turbine and electric generator. The function of the gearbox is to reduce the speed from extremely high turbine speed to the designated generator speed.
Are jet engines geared?
30 Years in the Making, A Simple Gearbox is Posed to Change the Jet Engine. PurePower Geared Turbofan engines are quieter, more efficient, and took three decades to make their way to planes. Jet engines can be much more efficient and much quieter than they are today.
What are disadvantages of turbofan?
Here are some of the disadvantages of turbofan engine: Jet engines are expensive to operate and also expensive to manufacture. The manufacturing process itself is difficult as jet engines operate in high speeds and high temperature environment. Turbofan Engines cannot handle sudden fluctuating load.
How efficient are turbofan engines?
Turbofans are thus the most efficient engines in the range of speeds from about 500 to 1,000 km/h (310 to 620 mph), the speed at which most commercial aircraft operate. Turbofans retain an efficiency edge over pure jets at low supersonic speeds up to roughly Mach 1.6 (1,960.1 km/h; 1,217.9 mph).
What type of engine is a turbofan?
A turbofan engine is the most modern variation of the basic gas turbine engine. As with other gas turbines, there is a core engine, whose parts and operation are discussed on a separate page. In the turbofan engine, the core engine is surrounded by a fan in the front and an additional turbine at the rear.
What does turbofan mean?
Definition of turbofan 1 : a fan that is directly connected to and driven by a turbine and is used to supply air for cooling, ventilation, or combustion 2 : a jet engine having a turbofan
