Ac leakage current is caused by a parallel combination of capacitance and dc resistance between a voltage source (ac line) and the grounded conductive parts of the equipment. The capacitance may be intentional (such as in EMI filter capacitors) or unintentional.
What is leakage current in SCR?
Reverse leakage current in a semiconductor device is the current from that semiconductor device when the device is reverse biased. Hence, it is also called reverse saturation current. The term is particularly applicable to mostly semiconductor junctions, especially diodes and thyristors.
What are leakage current effects?
On circuits protected by GFCIs (Ground Fault Current Interrupters), leakage current can cause unnecessary and intermittent tripping. In extreme cases, it can cause a rise in voltage on accessible conductive parts. Insulation has both electrical resistance and capacitance—and it conducts current through both paths.
What causes leakage current in transistor?
Overstressing the gate oxide can lead to stress-induced leakage current. In bipolar junction transistors, the emitter current is the sum of the collector and base currents. The collector current has two components: minority carriers and majority carriers. The minority current is called the leakage current.
How do you solve leakage current?
An especially simple and effective option for reducing leakage current is to use a 4-conductor filter with a neutral conductor instead of a 3-conductor filter.
What is leakage current formula?
The leakage current can be estimated as follows from the insulation resistance specification value and the rated voltage of the item using the formula I = V/R.
How do you find leakage current?
The current flowing in the ground conductor is measured by connecting the meter in series with the grounding connection of the device concerned. Leakage current clamp meter is the most popular device used to measure leakage current.
What is diode leakage current?
The leakage current of diode is the current that the diode will leak when a reverse voltage is applied to it. The leakage current only becomes very serious when the diode’s reverse voltage reaches breakdown, which causes an avalanche of current to flow.
What causes leakage current in Mosfet?
This leakage current can be due to drift/diffusion of minority carriers in the reverse-biased region and electron-hole pair generation due to the avalanche effect. For heavily doped pn junction of drain/source and substrate regions, the band-to-band tunneling (BTBT) effect dominates the reverse bias leakage current.
Which configuration has highest leakage current?
The leakage current in common emitter configuration is larger than that of common base configuration.
What is leakage current in capacitor?
Leakage current and its effects on the performance of capacitors. The DC leakage current refers to this small current that flows through a capacitor when voltage is applied. The value of this current mainly depends on applied voltage, capacitor temperature, and charging period.
What is leakage current test?
A line voltage leakage current test simulates the effect of a person touching exposed metal parts of a product and detects whether or not the leakage current that would flow through the person’s body remains below a safe level.
What is gate-induced drain leakage?
Gate-induced drain leakage (GIDL) current exists around the electric field under the gate/drain overlap. Punchthrough currents flow when the source and drain depletion regions connect in the channel. Gate oxide tunneling currents are caused by the high electric fields in the gate.

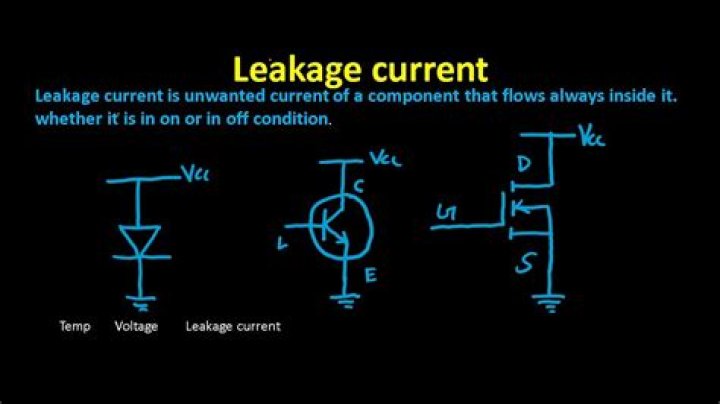

What is leakage current?
This current is called leakage current. Leakage current is dependent on minority current carriers. As we know that the minority carriers are electrons in the P type material and holes in the N type material. The following figure shows how current carriers react when a diode is reverse biased.
What is the leakage current in a germanium diode?
In Germanium and Silicon diodes, leakage current is only of few microamperes and nanoamperes, respectively. Germanium is much more susceptible to temperature than silicon. For this reason, mostly Silicon is used in modern semiconductor devices.
What is the cause of leakage current in reverse biased diode?
When the surrounding temperature rises, it causes significant increase in minority carrier creation and as a result it causes a corresponding increase in leakage current. In all reverse-biased diodes, occurrence of leakage current is normal to some extent.
