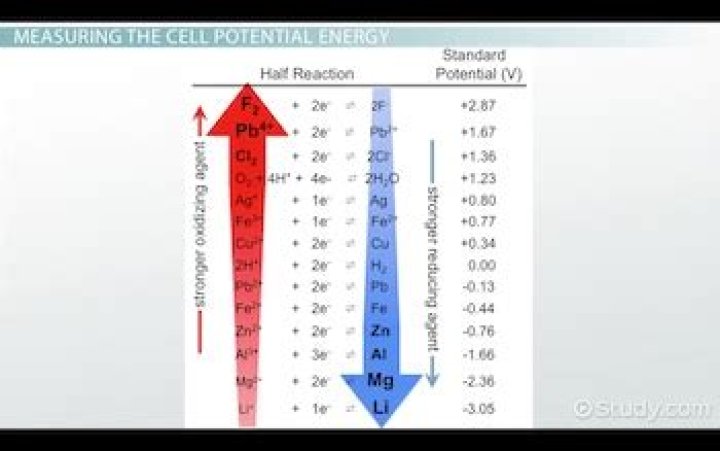

Standard Electrode Potentials in Aqueous Solution at 25°C
| Cathode (Reduction) Half-Reaction | Standard Potential E° (volts) |
|---|---|
| Ag+(aq) + e- -> Ag(s) | 0.80 |
| Hg2+(aq) + 2e- -> Hg(l) | 0.85 |
| ClO-(aq) + H2O(l) + 2e- -> Cl-(aq) + 2OH-(aq) | 0.90 |
| 2Hg2+(aq) + 2e- -> Hg22+(aq) | 0.90 |
What is the voltage of the cell Zn Ag?
The standard emf of the cell Zn | Zn2+ || Ag+ | Ag is 1.56.
What is zinc cathode?
Zinc behaves as the anode (supplying electrons) of the galvanic cell and the copper as the cathode (consuming electrons). The zinc electrode is dissolved (corroded or oxidized) and the copper electrode accepts copper atoms from the electrolyte (electroplating or reduction).
What is electrode potential of a cell?
Electrode potential for any given electrode is the voltage or potential difference of a cell assembled from a standard hydrogen electrode and the given electrode with the potential that is being defined. Electrode potential has uses such as: Prediction of corrosion-related chemical or electrochemical reactions.
What measures cell potential?
The overall cell potential can be calculated by using the equation E0cell=E0red−E0oxid. Before adding the two reactions together, the number of electrons lost in the oxidation must equal the number of electrons gained in the reduction. The silver half-cell reaction must be multiplied by two.
What does positive cell potential mean?
spontaneously
Note. A positive E°cell means that the reaction will occur spontaneously as written. A negative E°cell means that the reaction will proceed spontaneously in the opposite direction.
How do you find the cell potential of silver and tin?
The silver half-cell will undergo reduction because its standard reduction potential is higher. The tin half-cell will undergo oxidation. The overall cell potential can be calculated by using the equation E cell 0 = E red 0 − E oxid 0. Step 2: Solve.
What is the standard electrode potential for a zinc-copper cell?
Since the tabulated standard electrode potentials are reduction potentials, the one which is most negative will need to be reversed in sign to get its oxidation potential. When that is done, it is clear that the theoretical standard cell potential for the zinc-copper cell is 1.10 volts.
What are the electrical characteristics of silver zinc battery?
Electrical Characteristics of Silver Zinc Battery: Silver Zinc batteries have the potential EMF of about 1.5 V per cell. Although the efficiency varies according to the construction; they offer very good ampere-hour and watt-hour efficiency as compared to other types of rechargeable cells and batteries.
What is the standard cell potential of a half cell?
The standard cell potential ( E c e l l o) is the difference of the two electrodes, which forms the voltage of that cell. To find the difference of the two half cells, the following equation is used: E C e l l o is the standard cell potential (under 1M, 1 Barr and 298 K).
