Composition. The chemical composition of a firebrick includes 23 percent alumina and 73 percent silica. Ferric oxide, titanium and other metallic oxides form the remaining portion. The major chemical composition of regular brick is silica, alumina, magnesia, lime, iron oxide and alkalies.

What are the properties of fired clay bricks?

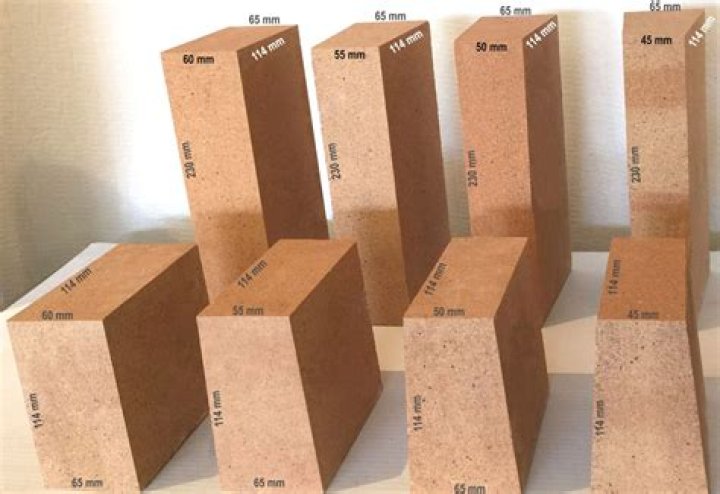

Properties of Fire Bricks

  • They are yellowish white or white in color.
  • They are available in different sizes ranging from 9 X 4.5 X 2.5 inches to 9 X 2.75 X 2.25 inches.
  • One general fire brick weighs about 30 to 35 N.
  • The compressive strength of fire bricks ranges from 200 to 220 Kg/cm2.

How are fire clay bricks made?

Process of Manufacture Raw Materials: Fire clays of both plastic and non-plastic varieties, refractory grog (broken fire bricks) and other high alumina minerals like kyanite, sillimanite and bauxite are the raw materials for making fire clay bricks and blocks.

What is clay brick?

Clay bricks are produced by the drying and firing of clay or shale raw material, forming a sintered porous structure. Similarly, the drying and sintering of pelletised clay or shale can produce a usable aggregate, but more especially if the raw material is capable of being ‘bloated’.

Is clay brick better than concrete brick?

Brick strength– Comparably clay bricks have a compressive strength two and a half to three times stronger to three times higher than concrete bricks. Meaning clay bricks can withstand eight to twelve thousand pounds while concrete generally can only face three to four thousand pounds.

Does firebrick insulate?

Dense Firebrick is not classified as “insulation”. Although it can take the heat very well, even more heat than an IFB, it has a much higher Thermal Conductivity. Instead of insulating the firebox, it will act as a heat sink, absorbing and radiating the heat.

What is use of fire bricks?

A fire brick is a block of refractory ceramic material used in lining furnaces, kilns, fireboxes, and fireplaces. A refractory brick is designed mainly to withstand high heat, but should also usually have a low thermal conductivity to save energy.

Are fire bricks structural?

There are two types of firebrick: hard brick and soft brick. Hard bricks are very dense and durable and used for their structural qualities. They can be found most often as the main building component of large kilns, chimneys, fireboxes and burner ports—anywhere around direct flame.

What is fired clay brick?

Unlike light, thin building materials, fired-clay brick is a dense material with thermal mass that absorbs and stores heat during the day, then slowly releases it to help keep buildings warm in the winter and cool in the summer.

What are clay bricks used for?

Burnt Clay Bricks These bricks are used in columns, walls, foundations, and more with a wide variety of purposes. When building walls, the burnt clay bricks require plastering or rendering with mortar to help improve the bricks’ strength, water resistance, and insulating ability.

What is clay brick called?

Unfired bricks, also known as mudbricks, are made from a wet, clay-containing soil mixed with straw or similar binders. They are air-dried until ready for use.

What is the composition of fire bricks?

These bricks are manufactured from a mixture of alumina and magnesia taken in equal proportions. Fire clay mortar is used for laying of fire bricks, not lime or cement mortar. Generally, 1.5 to 2 cft of fire clay mortar is required for laying 100 nos of standard ordinary size fire bricks.

What are the properties of clay that makes it suitable for bricks?

They must have a high fusion point. Fire clay is used for making this type of bricks. This clay can resist high temperature without undergoing any appreciable change in structural properties like melting or softening. Fire clay should contain a higher percentage of ‘non-detrimental’ silica and alumina.

What are the characteristics of firefire clay?

Fire clay should contain a higher percentage of ‘non-detrimental’ silica and alumina. They should have a very small quantity of detrimental lime, magnesia, iron oxide, and alkalis.

What is the percentage of silica in fire clay?

Fire clay contains two major constituents- silica and alumina, of which, the silica percentage varies from 60 to 70% and alumina varies from 25 to 35%. Some other constituents such as oxides of calcium, magnesium, iron, potassium and titanium are also present in fireclay.
