Circular Saw Sizes Standard-size saws use 7 1/4-inch blades and can cut a maximum depth of about 2 1/2 inches. Compact saws can use anywhere from 3 3/8-inch blades up to 6 1/2-inch blades.
How deep will a 165mm circular saw cut?
Bore size: 30mm. Blade diameter: 165mm. Maximum cutting depth: 0°: 57mm, 45° Bevel: 40mm.
How deep should a circular saw blade be set?
Set the blade depth 1/4-inch below the material you are cutting.
How deep can a 4 1/2 inch circular saw cut?
Mini Circular Saw, WESCO 4-1/2″ 6.0A Compact Circular Saw 5200 RPM Max. Cutting Depth 1-11/16″(90°), 1-1/8″(45°）with 2 TCT Blades and 1 Diamond Blade /WS3454U.

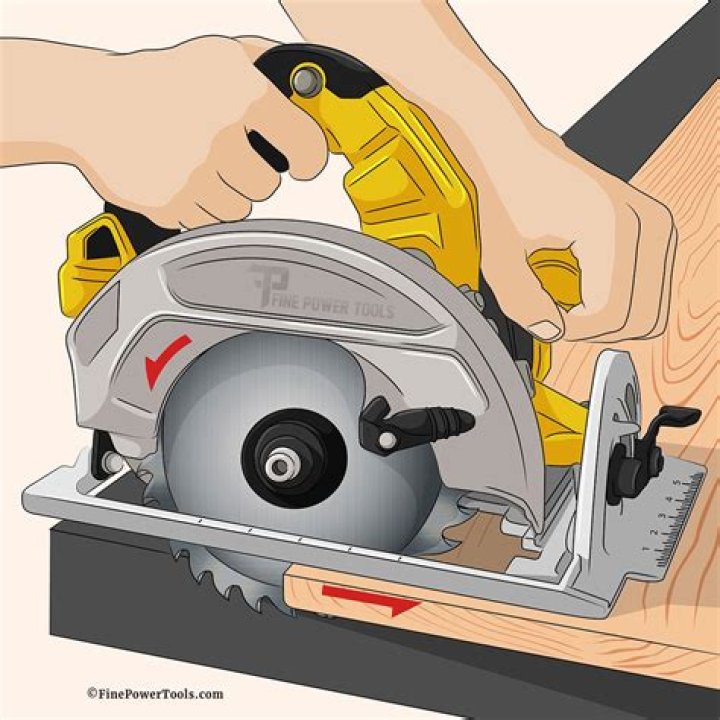

Can you set the depth of a circular saw?
A circular saw has a depth adjustment lever or knob that releases or loosens to allow for adjustment of the saw’s bottom plate, often called the “shoe.” First unplug your saw, then disengage this lever so that you can freely adjust the cutting depth by raising or lowering the bottom plate.
How deep can a 5 1/4 inch circular saw cut?
Besides, the 5″ blade allows max cutting depth up to 1-9/10” at 90° and cutting depth up to 1-1/4” at 45°, while the 4-1/2” blade allows max cutting depth up to 1-11/16″ at 90° and 1-1/8” at 45°.
How deep can a 10 circular saw cut?
How Deep Can a Circular Saw Cut?
| Saw Size | Max. Depth at 90° | Cut Depth at 45° |
|---|---|---|
| 6 ½ inch Saw | 2 13/32″ | 1 11/16″ |
| 7 ¼ inch Saw | 2 ½ inches | 1 13/16 inch |
| 8 ¼ inch Saw | 2 7/8″ | 2 ¼″ |
| 10 ¼ inch Saw | 3 11/16″ (3.6875 inches) | 2 ¾″ (2.75 inches) |
Can you set depth on circular saw?
How deep can a 6 1 2 circular saw cut?
Depth. A 6 ½ circular saw can cut materials up to 2.5 inches.
What size circular saw will cut a 4×4?
The best way to cut a 4×4 post is by using a 12-inch miter saw, 10-inch radial arm saw, both of which can cut completely through a post in one pass, or a standard circular saw that can make precise cuts in two passes with the help of a simple jig.
How do you measure the depth of a circular saw?
First, unplug your saw or remove its battery. Turn it on its side, hold back the blade guard, and but the end of your tape measure against the base at the center of the saw blade. A tape measure will give you a precise cutting depth when needed.
How deep can you cut with a 235mm circular saw?
These 235mm circular saws can accommodate cuts of up to around 85mm, depending on the manufacturer and saw model. The subsequent criteria needed for choosing a circular saw is the diameter of the blade to determine the depth of cut. The more popular diameters tend to be 190mm & 235mm.
Is the cutting depth of a circular saw greater than the blade?
Not really! The fact is that the cutting depth of any circular saws is less than the radius of the blade. It is because the blade operates on a pivot at the center of it, then you cannot cut all the way to that pivot. Thus, you can estimate the depth of cuts from other circular saws.
What size circular saw do I Need?
The subsequent criteria needed for choosing a circular saw is the diameter of the blade to determine the depth of cut. The more popular diameters tend to be 190mm & 235mm. This 235mm diameter blade is a particularly populare blade size for circular saws.
Can a circular saw cut a bevel?
Deepness of cut is adjustable relying upon the producer of your circular saw and you should pay unique mind to the most significant cutting depth at 0 degrees after buying as that will tell to you how profound you will have the option to cut if you won’t use it to cut a bevel. To cut a bevel, you want a saw with a movable base plate.
